• Color：Black Rubber Sheet
• Advantage：23 Years Manufacturer, 11 Years Exportor
• Item Name：Rubber Lagging Sheet Herrinbone Pattern Diamond Pr
• Application：Iron Ore, Mining, Quarrying, Cement
• Keyword：Pulley Rubber Lag
• Function：Reduce Belt Slippage, Extend Pulley Service Life
• Install：Cold Bonding, Rubber Sheet with Cn Bonding Layer
• Use：Increase Coefficient Friction
• Hardness：65 Shore a
• Dimension：10mmx2mx10m, etc.
• Abrasion Loss：100mm3
• Thickness：8mm, 10mm, 12mm, 15mm, 20mm, etc.
• Transport Package：Pallet
• Specification：2m*10m per roll
• Trademark：Jiaozuo Debon
• Origin：China
• HS Code：4008210000
• Production Capacity：500 Rolls ,Month

Basic Info.

Color Black Rubber Sheet Advantage 23 Years Manufacturer, 11 Years Exportor Item Name Rubber Lagging Sheet Herrinbone Pattern Diamond Pr Application Iron Ore, Mining, Quarrying, Cement Keyword Pulley Rubber Lag Function Reduce Belt Slippage, Extend Pulley Service Life Install Cold Bonding, Rubber Sheet with Cn Bonding Layer Use Increase Coefficient Friction Hardness 65 Shore a Dimension 10mmx2mx10m, etc. Abrasion Loss 100mm3 Thickness 8mm, 10mm, 12mm, 15mm, 20mm, etc. Transport Package Pallet Specification 2m*10m per roll Trademark Jiaozuo Debon Origin China HS Code 4008210000 Production Capacity 500 Rolls /Month

Product Description

Product Description

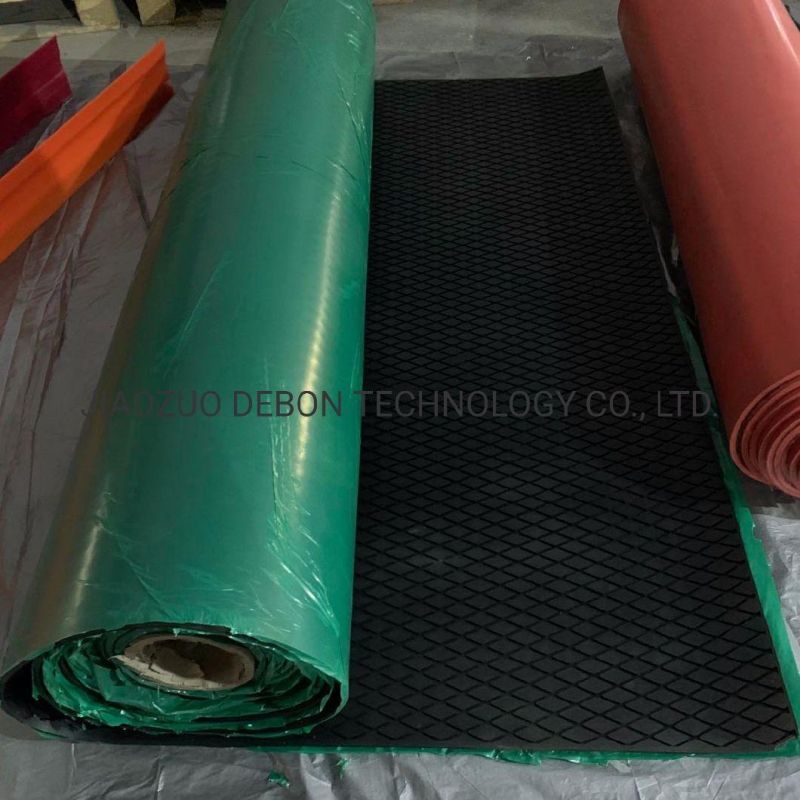

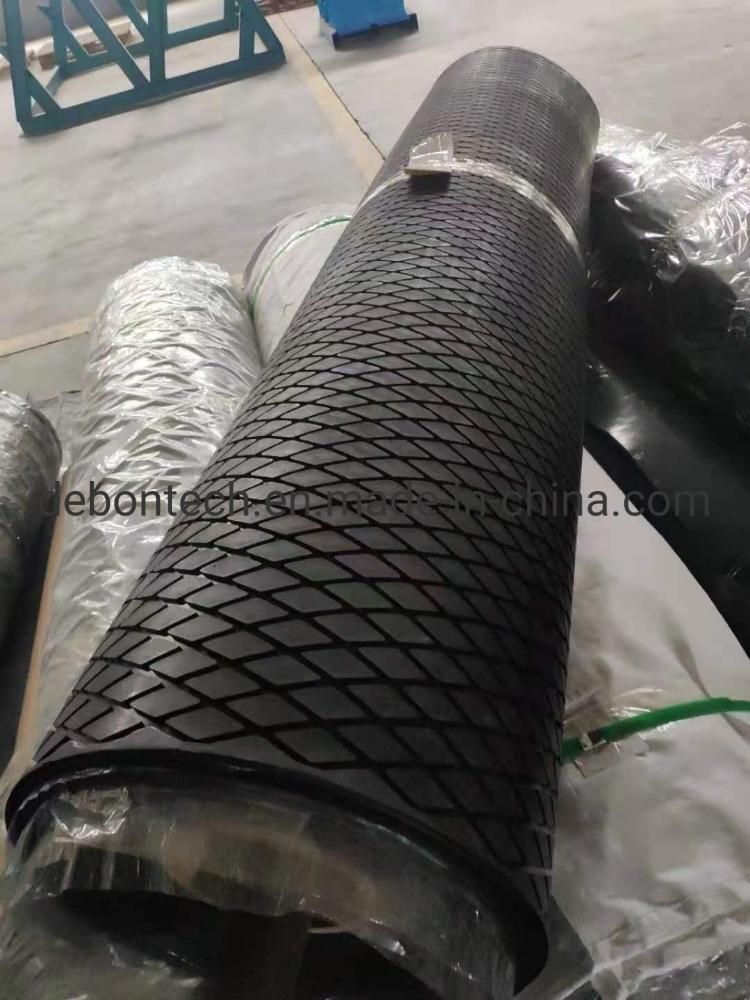

Rubber lagging sheet herrinbone pattern Diamond Profile Rubber Lag

Coefficient of friction between conveyor belt and pulley is a very important factor in determining the performance of a conveyor belt on a drive.
Low coefficient of friction may cause conveyor belt slippage and lead to more wear of the belt and belt tracking problem.
Rubber pulley lagging can reduce slippage and extend service life of conveyor belt.


Technical Data of Conveyor Drum Pulley Lagging Diamond Profile Rubber Lag:1. hardness: 60~65 shore a durometer.2. Density: 1.2 g/cm33. Tensile Strength: ≥15MPa.4. Elongation at break: >450%.5. Abrasion Loss: <100cm3.6. Peeling Strength: ≥13MPa.7. Temperature: -40 ~ 90 ºC.
 Specification of Diamond pulley lagging:
Material: NR ,SBR, etc.
Hardness: 65 shore a or as request

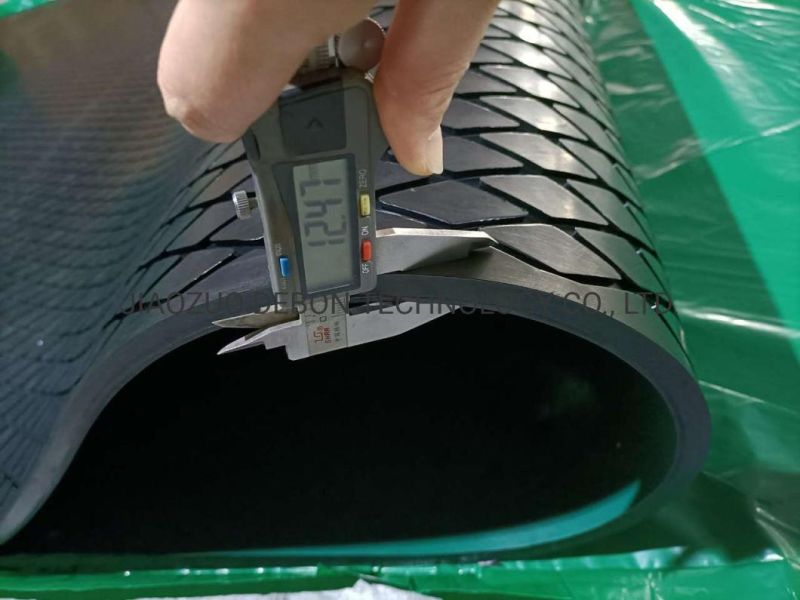

Thickness: 8mm, 10mm, 12mm, 15mm, 20mm, etc.
Length: 10m, 20m, 30m, etc.
Width: 2m

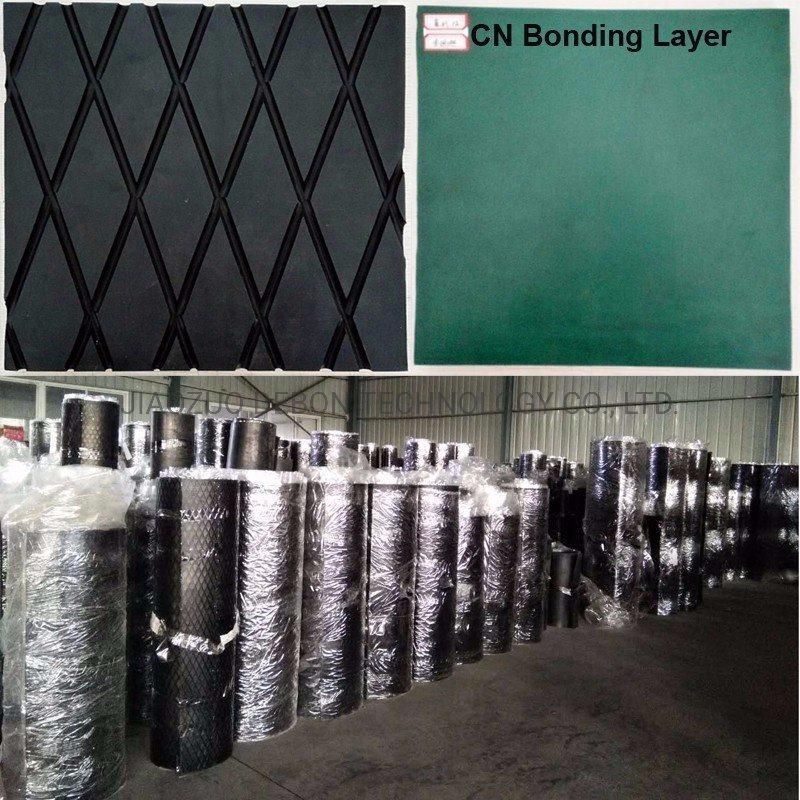

with cn bonding layer adhesive rubber.
our mould is 2m width *10m length, we also accept customization.



Features of Conveyor Drum Pulley Lagging Diamond Profile Rubber Lag:
1.Reduce belt slippage
2.Extend belt and pulley life
3.Available in Natural Rubber and FRAS approved rubber
4.With cn bonding layer

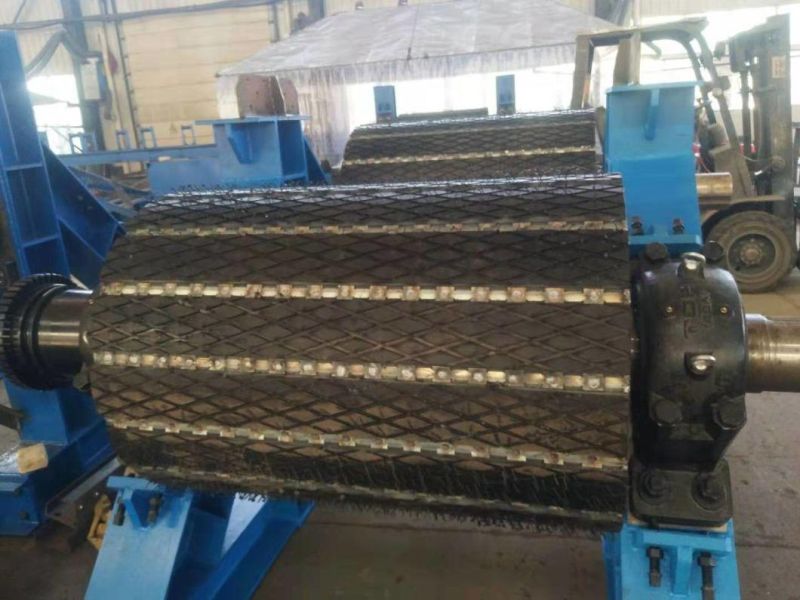

Diamond Pulley Lagging Rubber Sheet is generally applied to pulleys which require more fiction to the conveyor belt. The diamond grooves are more flexible when compared to plain rubber.

Installation:1.Site construction operation is simple and easy to carry out
2.High bonding strength, 5-7 times than the traditional casting glue, creep resistance, no degumming.
3.High compactness, good wear resistance and elasticity, long service life.
4.Use temperature in-20-85 ºC, can run for a long time.


Related Products

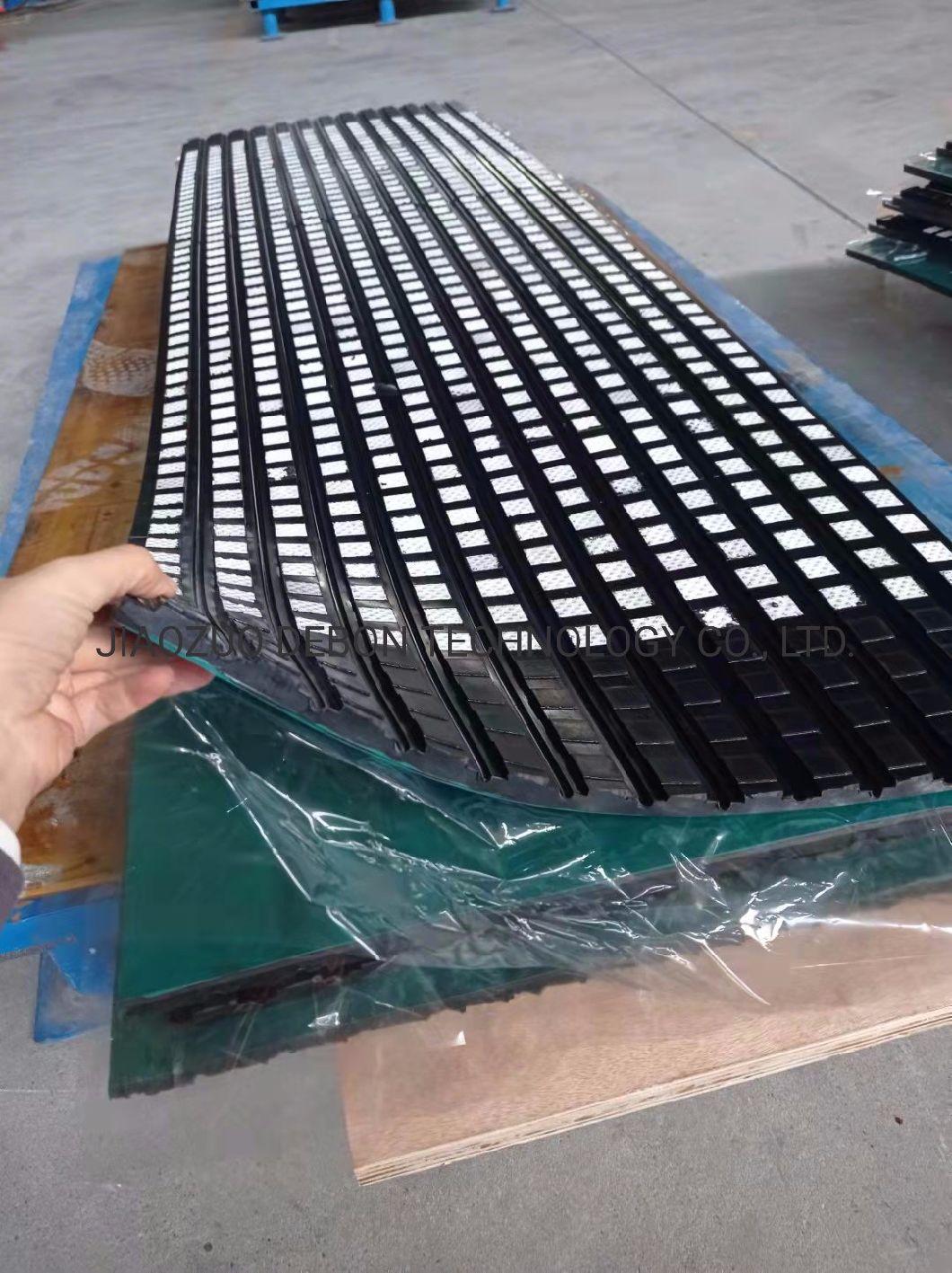

Pulley Ceramic Lagging

ceramic lagging add significantly more friction and grip for the belt when compared to smooth ceramic lagging and rubber lagging. The dimples will press into the conveyor belt and help to drag it.

As Conveyor belts are significantly more expensive than lagging and as such belt slippage should be minimised by choosing the correct lagging for your application.



Replaceable slide lagging with retainer

easy installation and replacement.
