• Model NO.：cleat pattern
• Standards：GB,T7984-2001, DIN22102, Bs490, As1332, Rma, Jisk6
• The Strength Specifications：100n,Mm 125n,Mm 150n,Mm 200n,Mm 250n,Mm 300n,Mm 40
• Chevron Conveyor Belt：Patterned
• Belt Width：400-2200 Mm
• Transport Package：PVC Water-Proof Cloth, Wooden Box or Steel Fram
• Specification：ISO, SGS, BV
• Trademark：HUAYUE
• Origin：Baoding City, Hebei Province, China
• HS Code：4010120000
• Production Capacity：2000 Meters Per Day

Basic Info.

Model NO. cleat pattern Standards GB/T7984-2001, DIN22102, Bs490, As1332, Rma, Jisk6 The Strength Specifications 100n/Mm 125n/Mm 150n/Mm 200n/Mm 250n/Mm 300n/Mm 40 Chevron Conveyor Belt Patterned Belt Width 400-2200 Mm Transport Package PVC Water-Proof Cloth, Wooden Box or Steel Fram Specification ISO, SGS, BV Trademark HUAYUE Origin Baoding City, Hebei Province, China HS Code 4010120000 Production Capacity 2000 Meters Per Day

Product Description

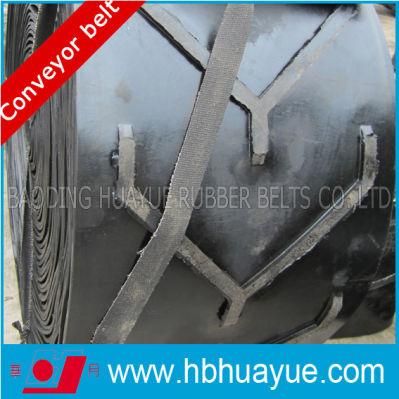

Pattern V U Y cleat rubber conveyor belts

HUYAUE® rubber conveyor belts company is the top 10 rubber conveyor belts manufacturer in China.Our belts in high quality with reasonalbe price.

Feature of pattern belts:
Special conveyor belt can convey powdered, granulated and small lump materials at the inclination of no more than 40 degree, it can also convey packaged materials.
Patterned conveyor belt is composed of belt carcass and pattern. The shape and high (depth) of pattern is subjected to the material it conveyor and the angle of the machine.
The chevron conveyor belt are used for carrying wet, loose sand and grain materials in bugs. The v-shape of the chevron cleats prevents the material from sliding back. The salient features of the belt are:

Special Rubber Chevron Conveyor Belt
Can carry loose materials at angle of 17-18 and bagged material at 30-35
Cleat angle and pitch are designed for smooth travel over return idlers
Cleats and the top cover rubber are mono block molding for strength
Chevron conveyor belts are used primarily when the angle of incline becomes too steep for a smooth conventional conveyor belt. The belt is fitted with integrally moulded cleats which prevent the material from sliding backwards as would be the case with a smooth surface belt. Different cleat designs allow the carrying of many types of material, from bulk solids to unit loads.
Application: There are open type and closed type, suitable for bulk or bagged materials such as powder and granule with incline less than 45 C.
Technical Data of Rubber Cover:
Tensile Strength: ≥ 10Mpa
Elongation at Break: ≥ 350%
Adhesive strength between carcass: ≥ 6.0N/mm
Adhesive strength between cover and carcass: ≥ 3.0N/mm
Elasticity: ≥ 32%
Abrasion: ≤ 200mm3

Our main products incluede:

Multi-ply EP EE CC NN rubber conveyor belts
Heat-resisitant / cold-resisitant / tear-resisitant / flame-resisitant rubber conveyor belts
Steel cord rubber conveyor belts
PVC/PVG underground coalming using rubber conveyor belts
rollers
pullys
roller frames

Welcome enquiry from us.
