• Model NO.：Hydraulic Hose
• Type：R1. R2. R3. R4. R5. R6. R12. R17 Hydraulic Hose
• Outer Cover：Neoprene Rubber
• Reinforcement：1 ~ 2 Layers Steel Wire
• Advantage：Fire-Resistance , High Pressure
• Application：Oil , Water and Other Liquid Deliver
• Connector：NPT ,Bsp Carbon , Stainless Steel Fitting
• Length：50, 100, 200 M,Roll
• Transport Package：by Transparent Plastic Film and Woven Belt or You
• Specification：SGS, ROSH, ISO
• Trademark：OEM , Hydraulic Hose
• Origin：Zhejiang, China
• HS Code：40092100
• Production Capacity：100000 M Per Month

Basic Info.

Model NO. Hydraulic Hose Type R1. R2. R3. R4. R5. R6. R12. R17 Hydraulic Hose Outer Cover Neoprene Rubber Reinforcement 1 ~ 2 Layers Steel Wire Advantage Fire-Resistance , High Pressure Application Oil , Water and Other Liquid Deliver Connector NPT ,Bsp Carbon / Stainless Steel Fitting Length 50, 100, 200 M/Roll Transport Package by Transparent Plastic Film and Woven Belt or You Specification SGS, ROSH, ISO Trademark OEM / Hydraulic Hose Origin Zhejiang, China HS Code 40092100 Production Capacity 100000 M Per Month

Product Description

DIN / SAE Industria Steel Wire Braid Rubber Hydraulic Hose (R1, R2)

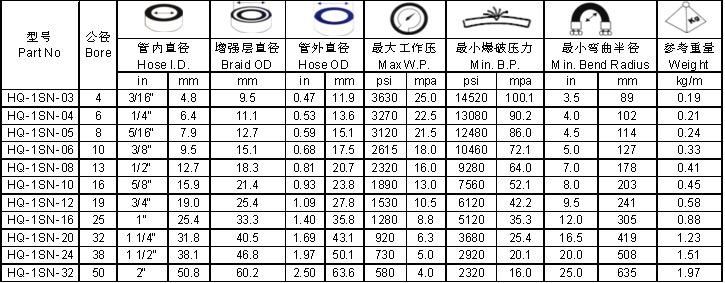

Specification
Hydraulic Hose
1. Smooth & wrapped surface
2. By SAE,DIN standard
3. Global high quality,competitive prices

Product Features
Reinforcement: one braid of high-tensile steel wire, textile weaving or steel wire braid
Temperature range: -40°F~212°F;  -40°C~121°C
Color available: black, grey, blue, yellow, red, etc.
Process feature: refrigeration technique
Inner tube: nitrile
Cover compound: neoprene
Advantage:high quality with low price.

Product Application
Hydraulic Hose: Medium pressure hydraulic for mobile, machine tool and agricultural, petroleum or water based hydraulic fluids.

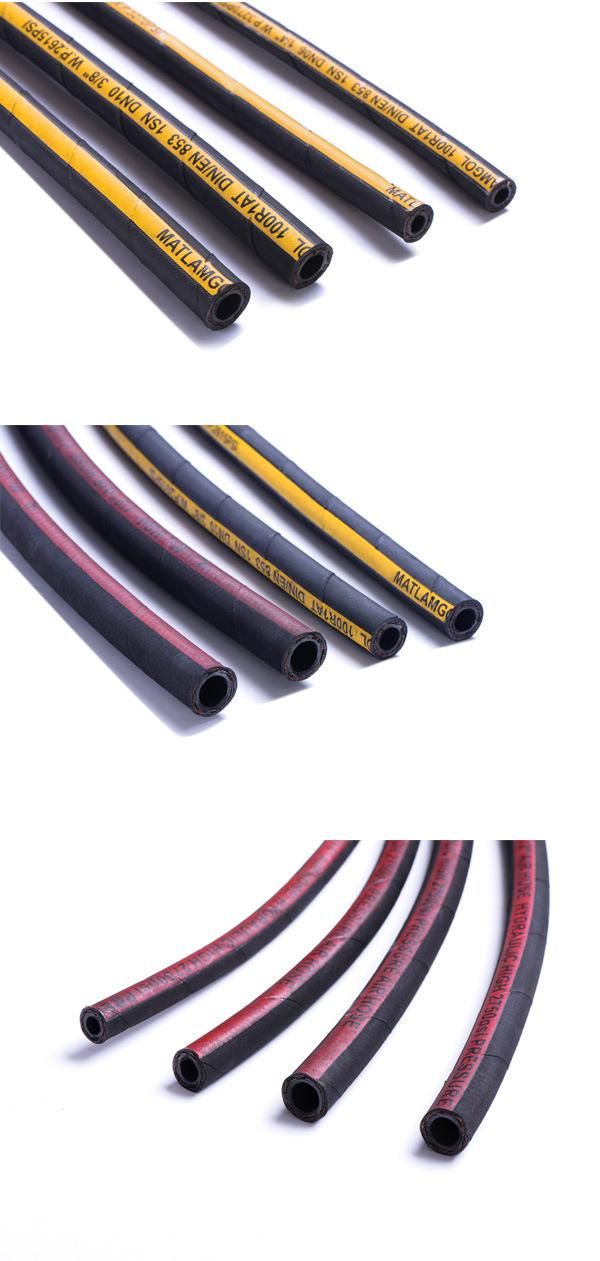

Product Show Of Rubber Hydraulic Hose



>>>Free Samples Are Available!
