Fuel Dispenser Flexible Steel Wire Braided Gasoline Petrol Pump Hose
Hangzhou Paishun Rubber and Plastic Co., Ltd.- Material：Nitrile Rubber
- Capability：Rubber Oil Hose
- Color：Color
- Type：Fuel Dispenser Hose
- Characteristic：UV Resistance
- Surface：Smooth
Base Info
- Model NO.：Gasoline Petrol Pump Hose
- Inner Tube：NBR
- Reinforcement：One Braid of Steel Wire Reinforcement
- Cover：NBR , PVC
- Temperature：-40c~70c
- Size：5,8", 3,4", 1"
- Length：50m,Roll; 4m,Piece
- Certification：Ce TUV ISO9001
- Transport Package：Well Packed by OPP Film or Poly Stripes.
- Specification：3,4"
- Trademark：PASSION
- Origin：Zhejiang China
- HS Code：40092100
- Production Capacity：150000 Meters , Month
Description
Burst PressureLength Measurement Weight / inch mm mm bar psi bar psi m cbm /roll kg/m HPR-1 5/8'' 15.9 25.4±0.5 20 300 60 300 50 0.07 0.57 HPR-2 3/4'' 19 28±0.5 20 300 60 300 50 0.08 0.65 HPR-3 1'' 25 35.5±0.5 20 300 60 300 50 0.124 0.82
Technical Introduction of Fuel Dispenser Hose:
Rubber Content of "Paishun's Hose" - The NBR Content of Hose Inner Tube is 42% and 40% in Hose Outer Tube.
The High NBR Material Content makes the Hose has excellent "permeability", so the Hose is able to not " bulge" even being immersed in High grade gasoline after 72 hours.
The Electrical Conductivity of Hose Assembly - When our workers do the assembling, we'll make sure that the Connectors to be well connected to Hose Wire, to make sure the Hose has "stable conducting electrostatic property", we test the " Hose Electrical Conductivity" with Ammeter.
Pressure Test - Every batch Hose will be tested under the Test Pressure (10times higher than the Hose's W.P.) and keeps at least 3 minutes, this is to avoid any invisible holes appear on Hose.
The Wire we use - The tensile strength of Single Wire we use is 2750 Newton high strength wire, the wire diameter is 0.295mm.

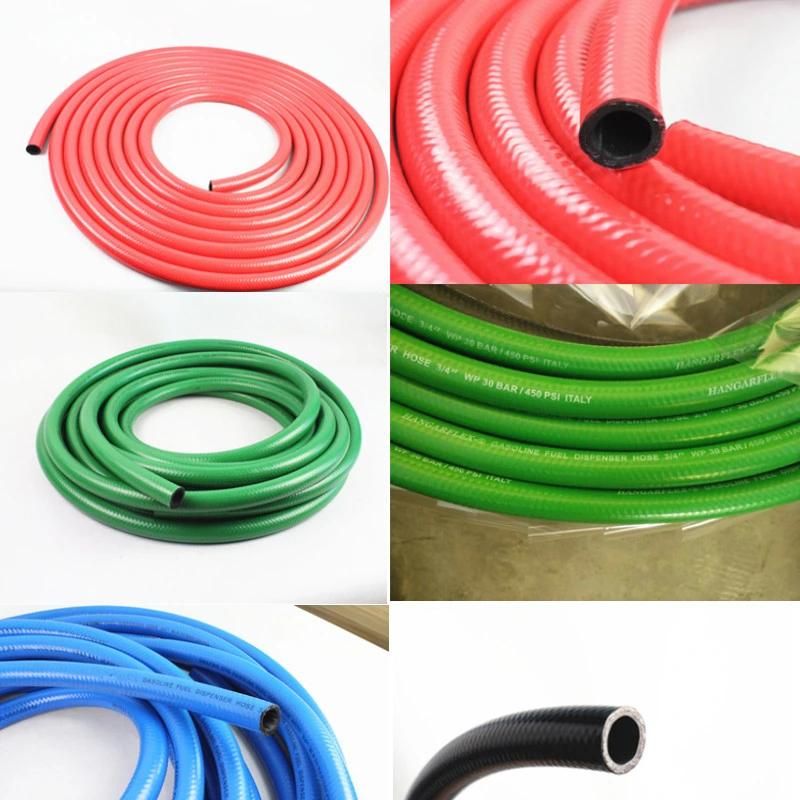

Hose Pictures:

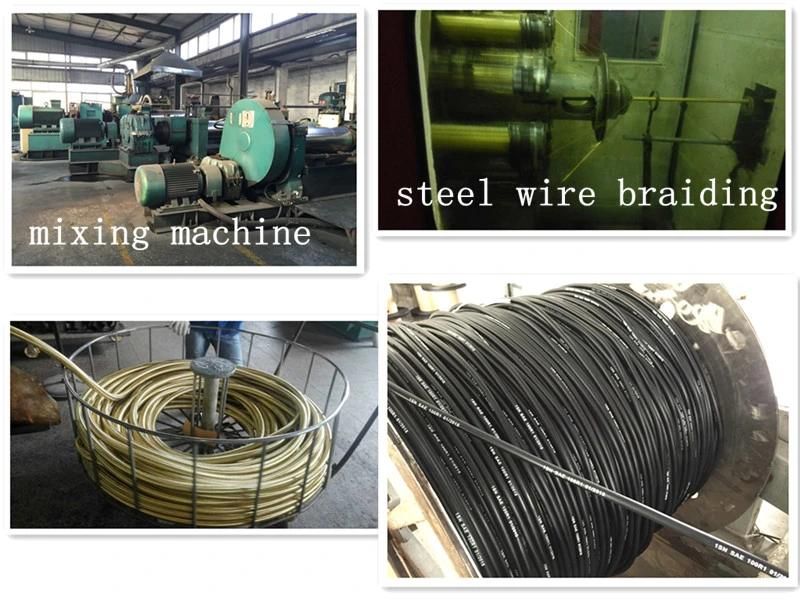

Production Plant:

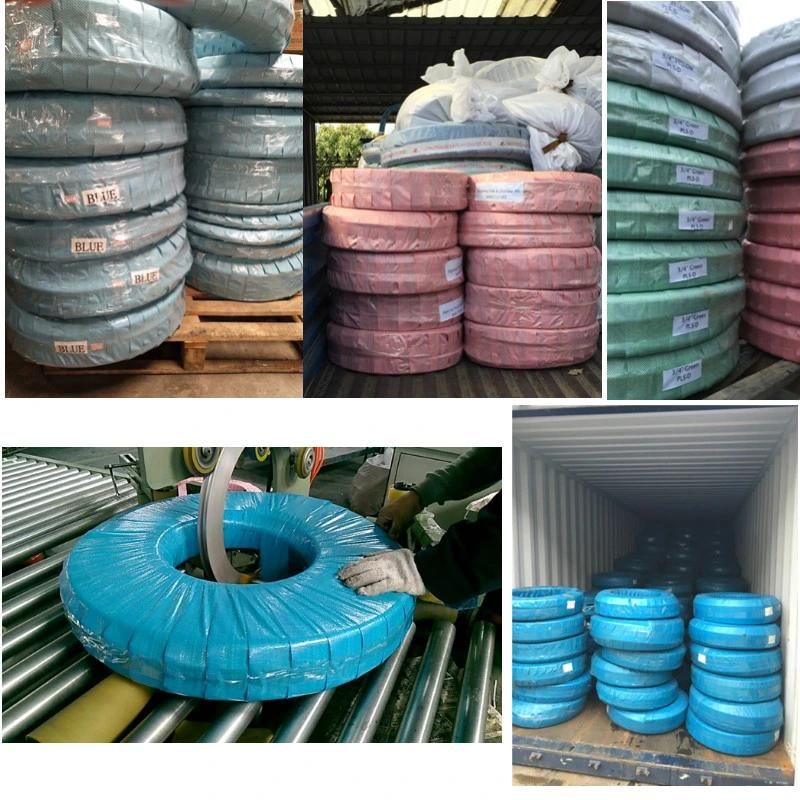

Hose Package:
Paishun Activities:
Want to know who is Alice J. ?
Please contact Alice for more information of this hose.
Mob: 0086 15968806735
