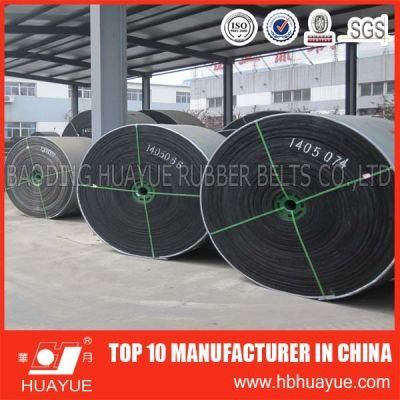

Ep Rubber Conveyor Belt Manufacturer

Baoding Huayue Rubber Belts Co., Ltd.
  • Type：Conveyor Belt
  • Feature：Wear-resistant, Heat-resistant, Tear-resistant, Flame-resistant, Cold-resistant
  • Certificate：ISO9001:2008,SGS, Bureau Veritas Certification
  • Standards：GB,T7984-2001, DIN22102, Bs490, As1332, Rma, Jisk6
  • Belt Width：400-2200 Mm
  • Strength：100n,Mm 125n,Mm 150n,Mm 200n,Mm 250n,Mm 300n,Mm 40

Base Info

  • Model NO.：EP100-EP600
  • Guarantee：1 Year (Wear Parts Excluded)
  • Condition：High Abrasion Resistance
  • Tensile：High Strength, and High Strength
  • Material：Rubber and Polyester Fabric
  • Scope：Belt Conveyors
  • Capacity：40-1280 T,H
  • Transport Package：Standard Export Packing
  • Specification：SGS, ISO, BV
  • Trademark：HUAYUE
  • Origin：Hebei Baoding
  • HS Code：4010120000
  • Production Capacity：5000m Per Day

Description

Standards Cover Rubber Adhesion
Tensile Strength Elongation at break Abrasion Cover to Ply Cover to Ply Ply to Ply
DIN 22102 Mpa % mm3 N/mm
(<=1.5mm)		 N/mm
(>1.5mm)		 N/mm
DIN 22102-Z 15 350 250 3.5 4.5 5
DIN 22102-W 18 400 90 3.5 4.5 5
DIN 22102-Y 20 400 150 3.5 4.5 5
DIN 22102-X 25 450 120 3.5 4.5 5

Standards Cover Rubber Adhesion
Tensile StrengTD Elongation at break Abrasion Cover to Ply Cover to Ply Ply to Ply
AS 1332 Mpa % mm3 N/mm
(≤1.9mm)		 N/mm
(>1.9mm)		 N/mm
AS 1332-N17 17 400 200 4 4.8 6
AS 1332-M24 24 450 125 4 4.8 6

Standards Cover Rubber Adhesion
Tensile StrengTD Elongation at break Abrasion Cover to Ply Cover to Ply Ply to Ply
RMA Mpa % mm3 N/mm
(≤1.6mm)		 N/mm
(>1.6mm)		 N/mm
RMA-I 17 400   3 4.4 4
RMA-II 14 400   3 4.4 4

Standards Cover Rubber Adhesion
Tensile StrengTD Elongation at break Abrasion Cover to Ply Cover to Ply Ply to Ply
SANS 1173 Mpa % mm3 N/mm N/mm
A 18 400 70 5 7
C 20 400 150 5 7
M 25 450 120 5 7
N 17 400 150 5 7
