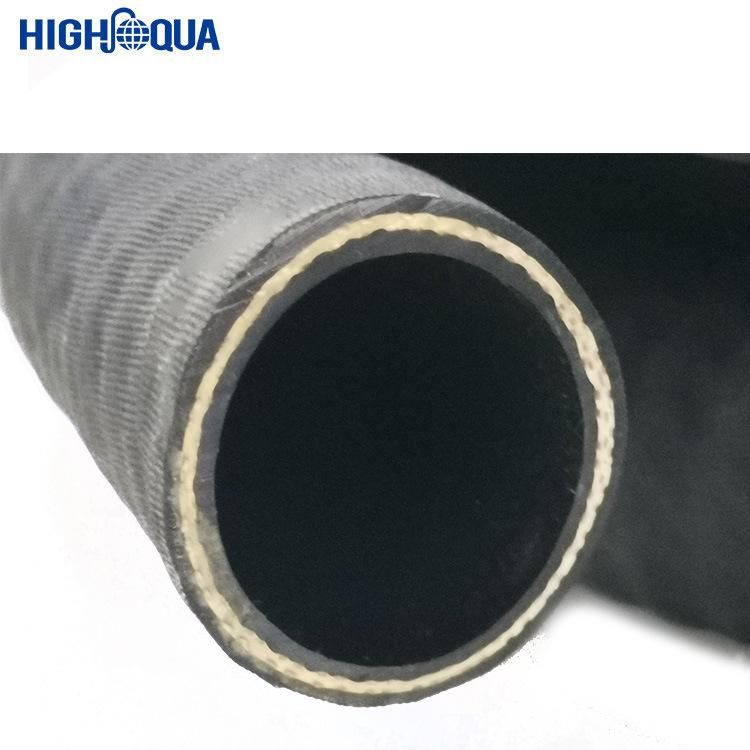

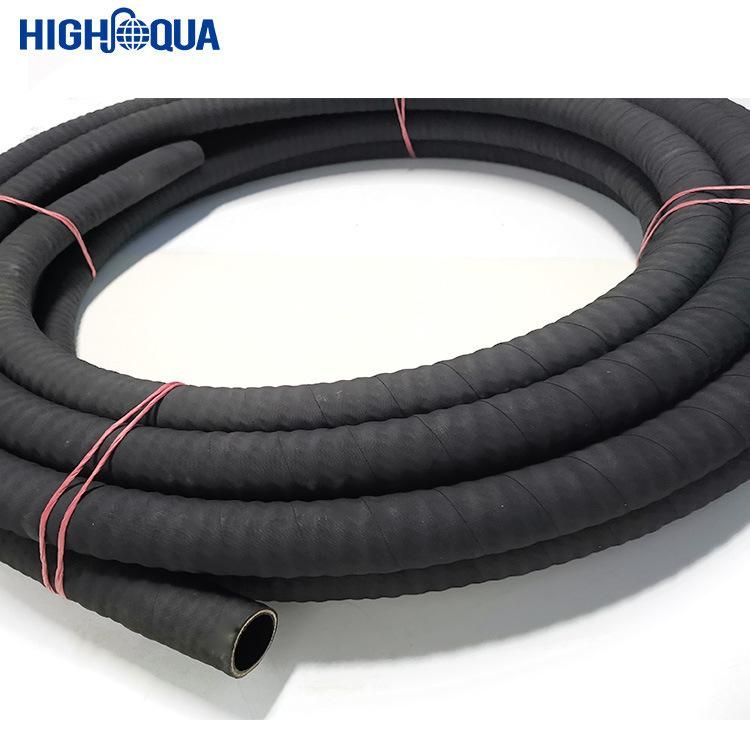

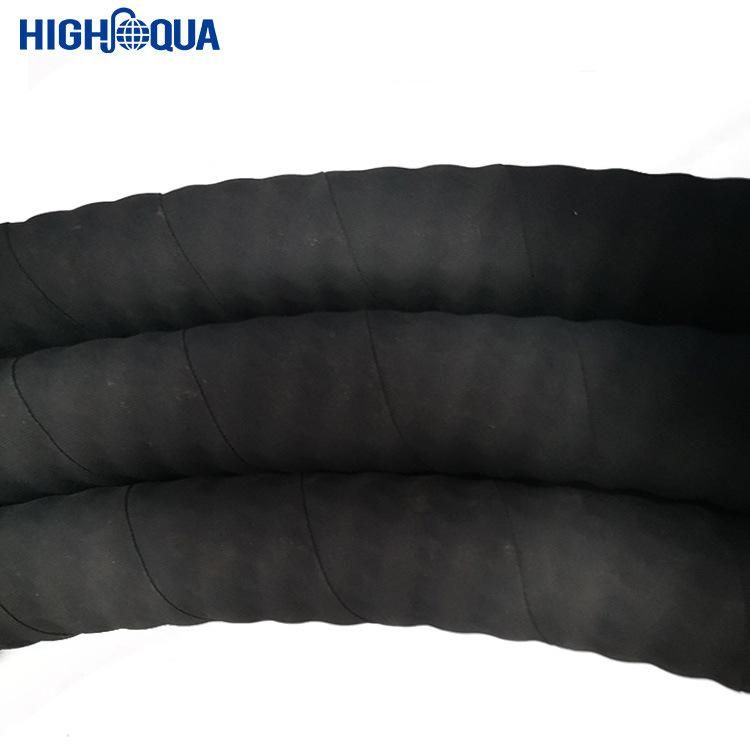

Rubber Suction and Discharge Water Hose
Hangzhou Haikuo Rubber and Plastic Products Co., Ltd.- Material：Nitrile Rubber
- Capability：Water Rubber Hose
- Color：Black
- Szie：1~10"
- Length：Max 40m
- Reinfocement：2~7layers
Base Info
- Model NO.：RUBBER SUCTION AND DISCHARGE WATER HOSE
- W.P.：3~10bar by Request
- B.P.：9~30 Bar by Reuqest
- OEM：Doable
- Surface：Cloth or Corrugated
- Temp. Range：-20~60 C Degree
- Sample：Viable
- Package：Roll or Straight
Description
SizeLayers O.D. W.P. Weight Length I.D.(mm) inch Layers O.D.(mm) Mpa kg/m lb/ft m 25 1 4 49 1.5 1.25 0.84 40 32 11/4" 4 57 1 1.47 0.99 40 38 11/2" 4 60 0.8 1.7 1.14 40 45 13/4" 4 69 0.8 2.1 1.41 40 51 2" 4 72 0.7 2.2 1.48 40 51 2" 4 74 0.8 2.4 1.61 40 64 21/2" 4 86 0.7 2.8 1.88 40 64 21/2" 4 87 0.8 3 2.01 40 76 3 4 100 0.6 3.6 2.42 40 76 3 4 102 0.7 3.8 2.55 40 102 4 4 125 0.5 5.3 3.56 40 102 4 4 127 0.6 5.6 3.76 40 127 5 4 152 0.5 7.9 5.30 40 152 6 6 178 0.6 8.5 5.70 20 152 6 6 181 0.5 9 6.04 20 203 8 8 230 0.5 14.61 9.80 20 254 10 10 296 0.5 20.75 14.03 20
Packaging&Shipping
Packaging Details: By transparent plastic film and woven belt or your request.
Delivery Time: We are responsible for shpping goods to delivery port on time.
