• Model NO.：5mm
• O.D：11mm , 12mm
• W.P：500~800psi
• B.P：2500~4000psi
• Application：Air Condition R134A
• End：Quick Coupler
• Equipment：Air Conditioner Parts
• Transport Package：Well Packed by OPP Film or Poly Stripes.
• Specification：CE, RoHS, SGS, ISO9001
• Trademark：PASSION
• Origin：Zhejiang China
• HS Code：40093100
• Production Capacity：400000 Meters , Month, 3 Production Lines.

Overview Product Description

Construction: Inner tube: High nitrile-butadience rubber (NBR)

            Reinforcement: Polyester fiber spiral line.
            Cover: NBR&PVC blends.
Temperature: -30ºC - +100ºC
Color: Red, Yellow, Blue.
Application: Mainly used for conveying refrigerant such R12, R22, R502, and R134a; applied widely to auto refrigerant, air conditioning, industrial refrigerant etc; both the inner rubber layer and protective layer are of high level oil resistance of grade RMA-A and antiseepage.
Standard length: 1.5m or as customers' request.Product Parameters



Specific of Refrigerant Charging HoseInner DiameterOuter DiameterWorking PressureBurst PressureLengthMeasurementWeightmmmmpsipsimcbm/rollkg/m51150025001000.020.135     1160030001000.020.135     1280040001000.020.16 Detailed Photos

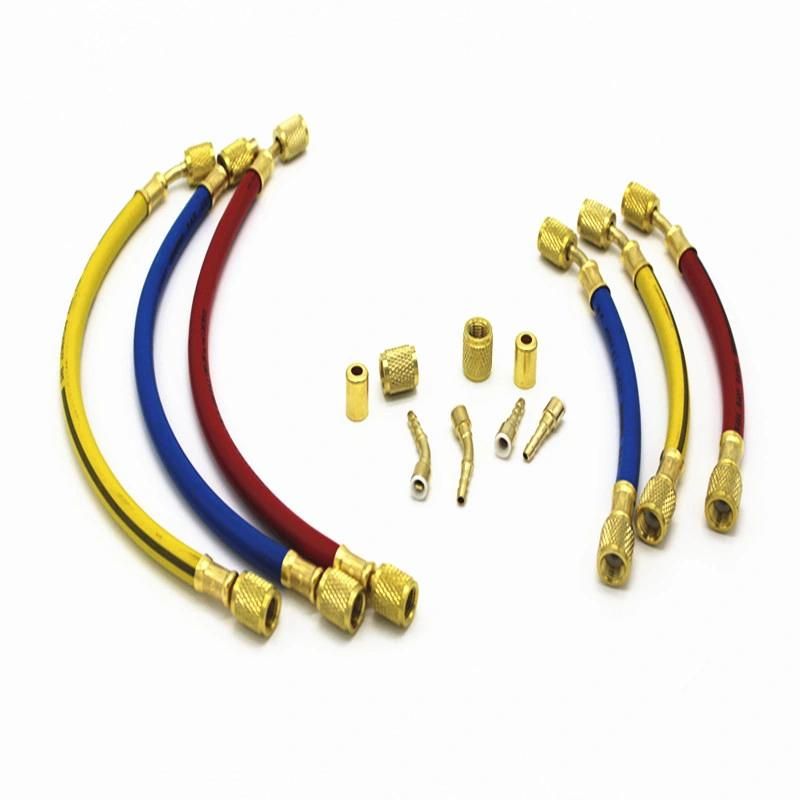

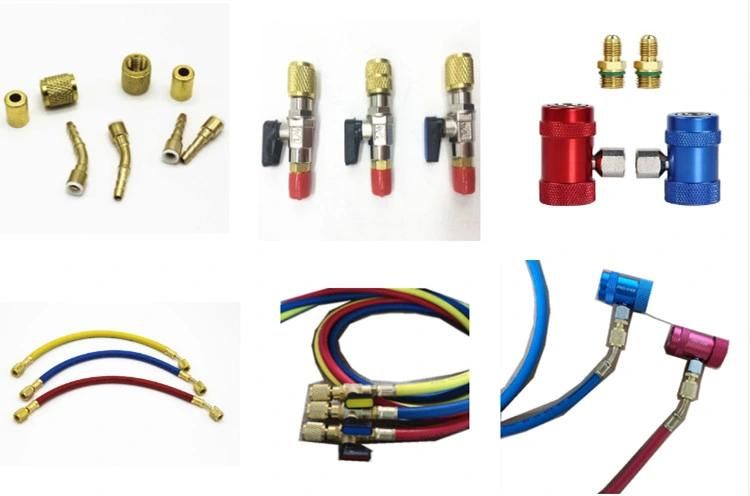

Fitting type:

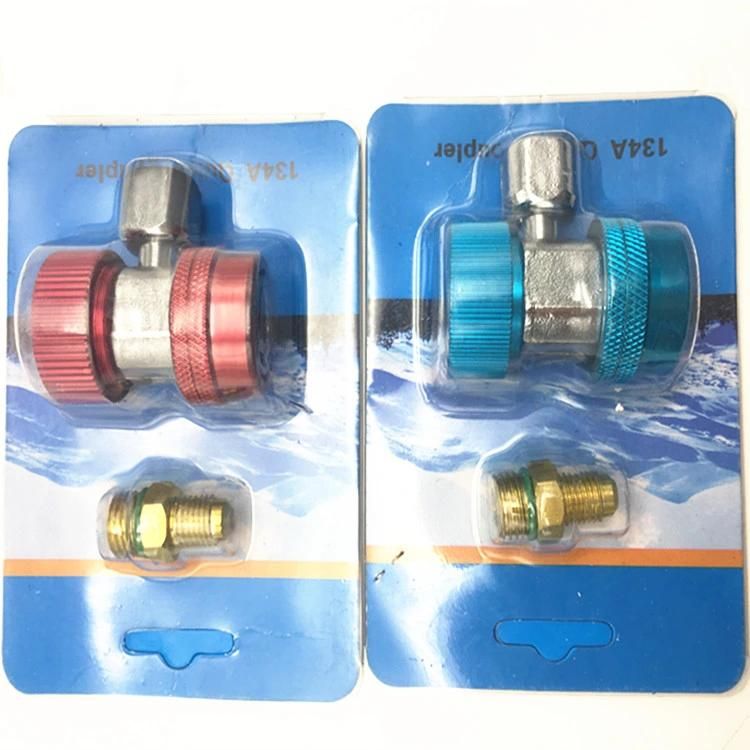

1/4" SAE straight and 45° brass fittings, ball valves, and quick couplers.



If you need other sizes and fittings, please feel free to contact us.

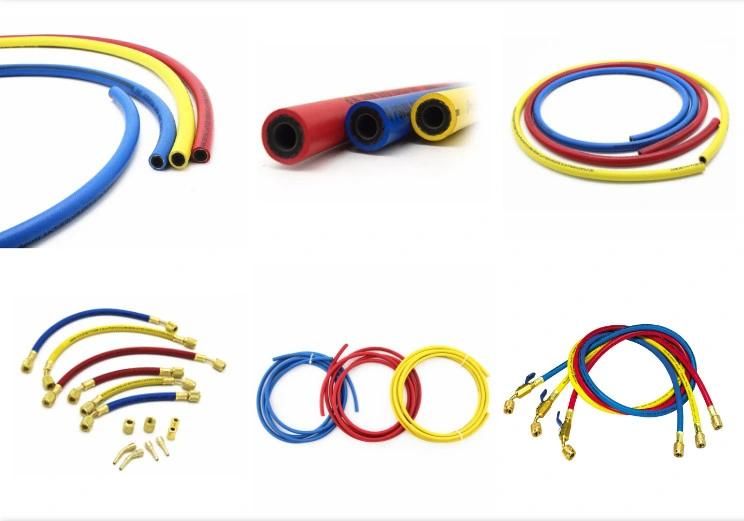

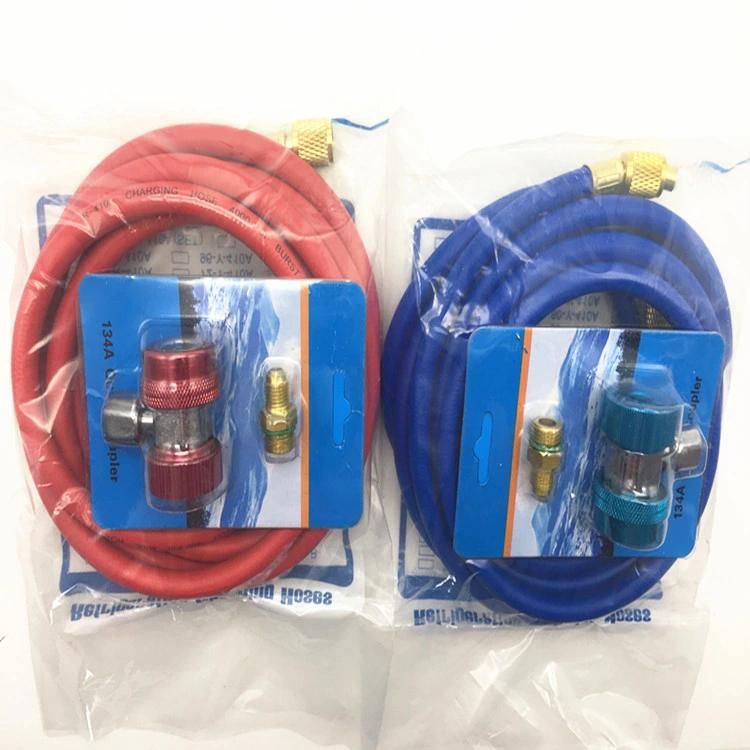

Product photos:

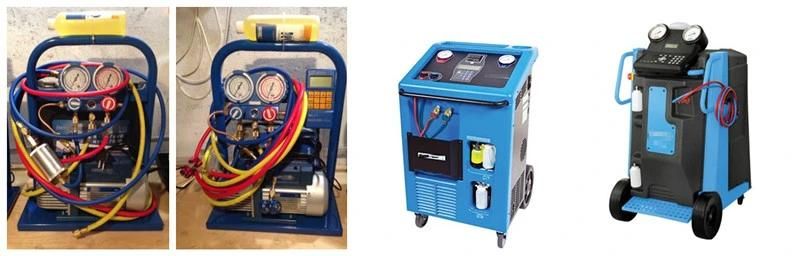

Product Application:

Packaging & Shipping

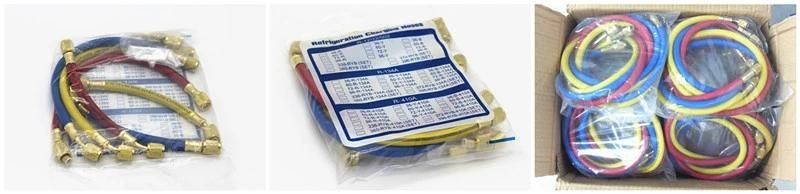

Packing & Delivery:

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

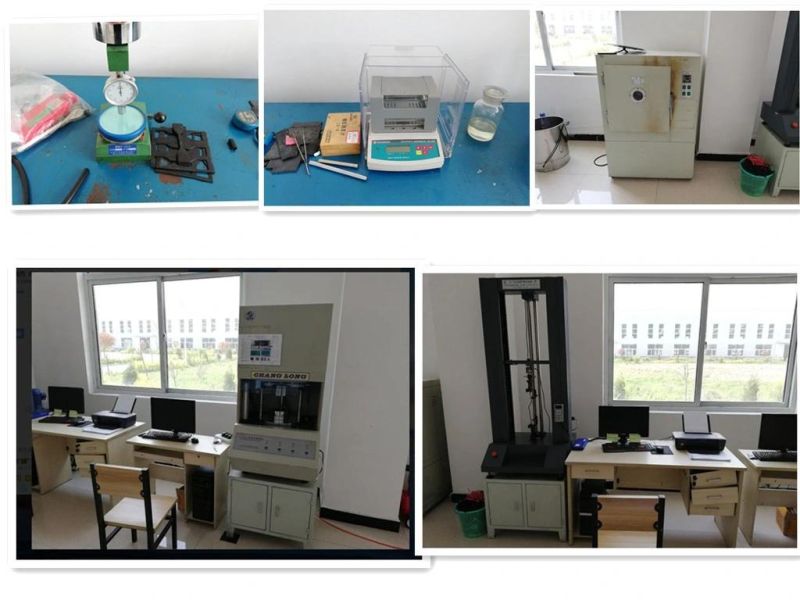

Test Machines:

Company Profile

Company Profie:


Paishun is a leading rubber hose manufacturer in east China for over 13 years, with professional and permanent technical service and support for you.

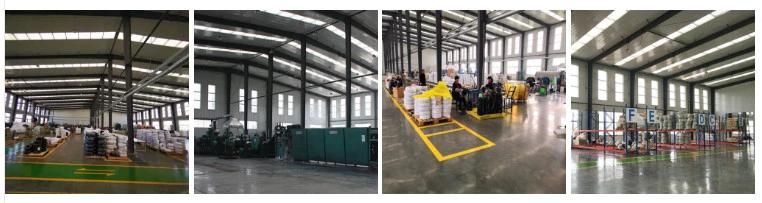

We own complete production lines of rubber mixing process, cold feeding material extrusion process, micro wave vulcanization process, and high speed braiding process, etc.

Certifications

Certifications:


Paishun has various types of certificates, such as ISO9001, CE, RoHS, etc.




FAQ

1.Q:Are you a factory or trading company?
A:We are a factory for over 14 years.

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Hangzhou City, Zhejiang Province, China, about 1.5 hours train from Shanghai.
All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:How can I get some samples?
A: We are honored to offer you samples.

4.Q:How does your factory do regarding quality control?
A. Quality is priority. PASSION always attach great importance to quality controlling from the beginning to end. Our factory has gained CE, ISO, SGS etc.
