• Model NO.：SAE 100r17
• Cover Compound：Neoprene
• Temperature Range：-40ºC~+100ºC
• Certification：ISO9001 Ce
• Surface：Cloth Warpped
• Transport Package：Well Packed by Poly Stripes or as Request.
• Specification：NBR
• Trademark：PASSION or OEM
• Origin：Zhejiang China
• HS Code：4009210000
• Production Capacity：200, 000meters,Month

NameSAE 100R17ATMaterialNBRCertificationCE approved.Size3/16"~1"ColorBlackTemperature range-40ºC~+100ºCReinforcementOne braids of high-tensile steel wire.Capability/FeatureOil resistant, abrasion resistant, anti-aging.Length100m or 50m per roll.Telerance0.05mmApplicationMedium pressure hydraulic applications including mobile, machine tool and agricultural applications, using petroleum or water based hydraulic fluids.PackageWell packed by poly stripes or as your requirement.DeliveryAccording to your quantity, generally speaking, 35 days for a 20' container.



 SIZEI.DO.DW.PB.PMin Bend RadiusWeightPart Numberinchmmmmbarpsibarpsimmg/m1 wire braidP04-R171/4″6.312.521030458401218050290P06-R173/8″9.516.321030458401218065380P08-R171/2″12.720.7210304584012180905002 wire braidsP10-R175/8″16.025.9210304584012180100625P12-R173/4″19.030.4210304584012180120780P16-R171″25.438.62103045840121801501080



 NameSAE 100R1AT/1SNMaterialNBRCertificationCE approved. Size3/16"~2"ColorBlackTemperature range-40ºC~+100ºCReinforcementOne braid of high-tensile steel wire. SurfaceCloth wrappedCapability/FeatureOil resistant, abrasion resistant, anti-aging. Length100m or 50m per roll. Tolerance0.05mmApplicationMedium pressure hydraulic applications including mobile, machine tool and agricultural applications, using petroleum or water-based hydraulic fluids. PackageWell packed by poly stripes or as your requirement. DeliveryAccording to your quantity, usually 35 or 40 days for a 20' container.  PartInHose Size ID DIN Dash SizeHose ODMax. Working pressureMin. Bend RadiusMin...Burst pressureWeight
(ibs/foot)InmmPsiMPaInmmPsiMPaGR1SN-033/164.80.4711.93630253.58914520100.10.12GR1SN-041/46.40.53413.6327022.541021308090.20.15GR1SN-055/167.90.59515.1312021.54.511412480860.17GR1SN-063/89.50.68917.526151851271046072.10.22GR1SN-081/212.70.81320.723201671789280640.28GR1SN-105/815.90.93823.81890138203756052.10.33GR1SN-123/4191.09627.8153010.59.5241612042.20.41GR1SN-16125.41.40835.812808.812305512035.30.62GR1SN-2011/431.81.69643.19206.316.5419368025.40.8368GR1SN-2411/238.11.97150.1730520508292020.11.0921GR1SN-32250.82.50363.65804256352320161.3413 NameSAE 100R2AT/2SNMaterialNBRCertificationCE approved. Size3/16"~2"ColorBlackTemperature range-40ºC~+100ºCReinforcementTwo braids of high-tensile steel wire. SurfaceSmooth wrappedCapability/FeatureOil resistant, abrasion resistant, anti-aging. Length100m or 50m per roll. Tolerance0.05mmApplicationHigh-pressure hydraulic oil lines used in construction, machine tool and agricultural applications using petroleum or water-based hydraulic fluids.
Can also be used on CAT KOMATSU Excavator. PackageWell packed by poly stripes or as your requirement. DeliveryAccording to your quantity, usually 35 or 40 days for a 20' container.  PartInHose Size ID DIN Dash SizeHose ODMax. Working PressureMin. Burst
PressureInmmMPaMPaGR2SN-033/164.8 DIN Dash size0.48412.341.4165.5GR2SN-041/46.4 DIN Dash size0.59315.140160GR2SN-055/168.0 DIN Dash size0.64916.535140GR2SN-063/89.5 DIN Dash size0.75319.133.1132.4GR2SN-081/212.7DIN Dash size0.87522.227.6110.3GR2SN-105/815.9 DIN Dash size125.425100.1GR2SN-123/419 DIN Dash size1.15729.421.586GR2SN-16125.4 DIN Dash size1.538.116.566.2GR2SN-2011/431.8 DIN Dash size1.87747.712.550.2GR2SN-2411/238.1 DIN Dash size2.12954.1936.1GR2SN-32250.8 DIN Dash size2.62766.7832

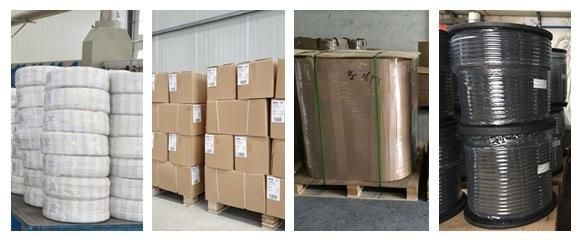

Packaging
Well packed by poly stripes or as your requirement.

Shipping
We ship the goods by express, by air, by sea or according to your requirement.

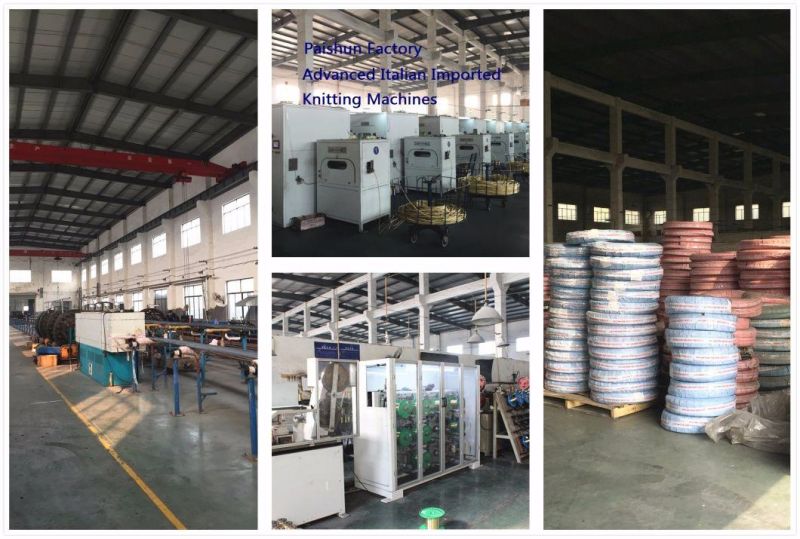

Workshop

We just imported 14 sets of brand new automatic inner hose knitting machines from Italy. The knitting speed is faster, production capacity has been greatly improved, quality is better and more stable.

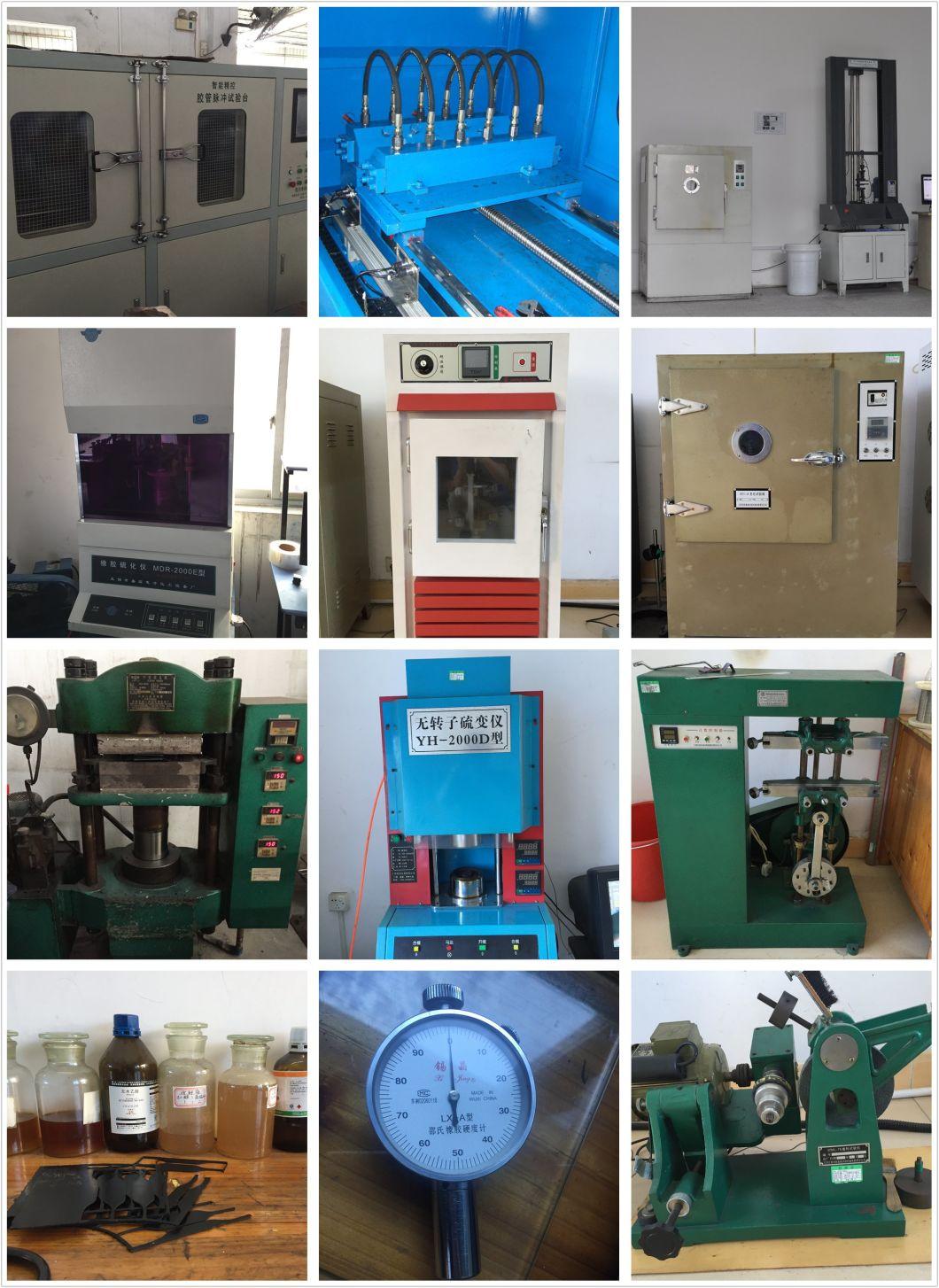

Test Machines

In order to ensure the quality of our hydraulic hoses are good and stable. We test every batch of goods before sent out. Below are some common tests.
1 Working pressure test
All the hoses need to do this test before shipment.
2 Burst pressure test
3 Impulse test
1 wire and 2 wire braided hoses pass the impulse testing of 200,000 times; 4 wire spiral hoses pass the impulse testing of 400,000 times.

We also run other tests such as oil resistance test, ozone resistance test, aging test, etc. The test report can be provided.

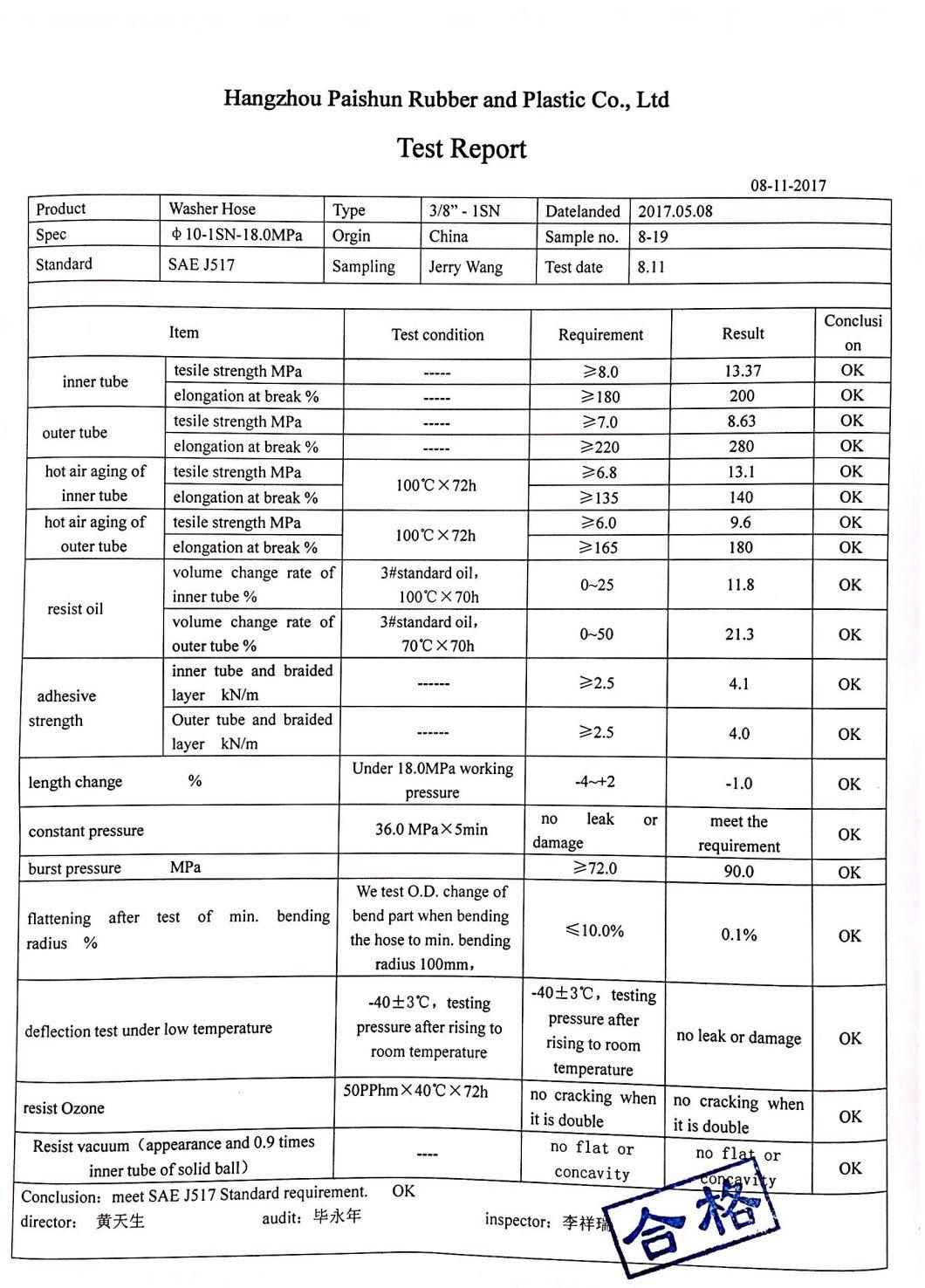

Test Report Sample






Our Service

1. We can provide matching hose connection.

2. We can provide free hose samples.

3. Hydraulic rubber hose is also served.

4. Other sizes can be customized.

5. We can print words on the hose according to your requirement.

6. We can package the goods according to your requirement.

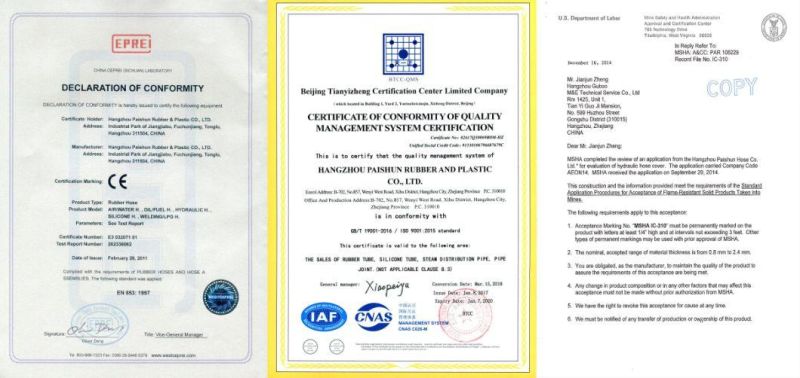

Certification

Paishun has various types of certificates, such as ISO, CE, Rohs, MSHA, etc.



About Paishun

Paishun factory covers a land of over 3 hectares, and the workshops occupy a surface of 25000 square meters. We own complete production lines of the rubber mixing process, cold feeding material extrusion process, microwave vulcanization process, and high-speed braiding process, etc.

We produce mainly the industrial hoses like Air Hose, Water Hose, Oil Hose, Welding Hose, Hydraulic Hose, and Assemblies. Paishun, being a rapidly growing enterprise focusing on the professional production of pure rubber hoses and braided rubber hoses, its yearly production capacity reaches 10 million meters.

Our key policy is "enterprise may thrive with the technology, and may last with good quality". So we put much investment in the research team, and in advanced testing laboratory equipment. We now use a series of tensile testing machine, vulcanization testing device, aging testing chest, pressure testing machines to ensure effective quality control. All these testing machines and related procedures may form a complete quality control system, beginning from the selection of the raw materials till the end step. Thus, we wish our products can satisfy in maximum our customers, and help them to gain more and more market share.

Paishun Exhibition

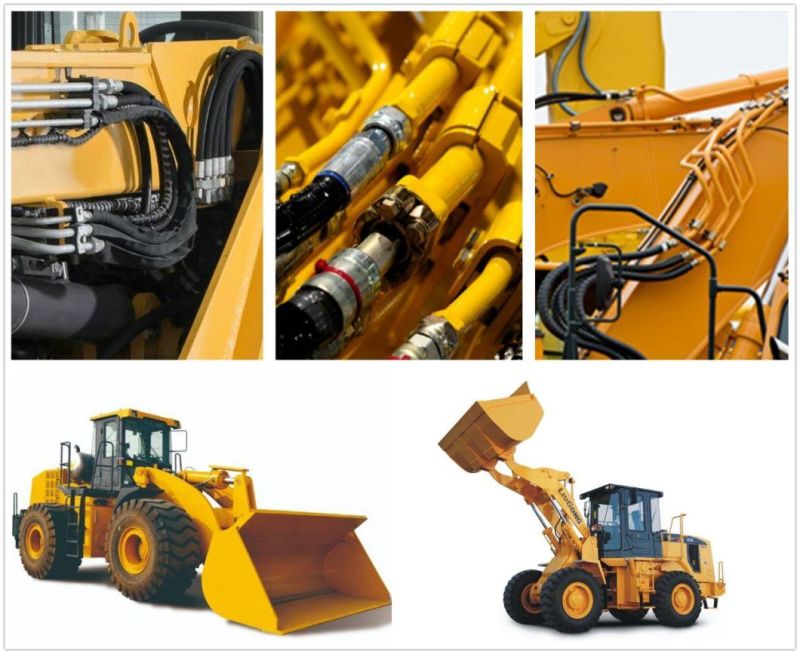

Application
