• Model NO.：3A5006
• Color：Black, Grey, White etc.
• Quality：Industrial Grade
• Surface：Smooth, Impression Fabric
• Tensile Strength：4-12MPa
• Hardness：40-80shore a
• Elongation：250%-380%
• Density：1.25-1.5g,cm3
• Thickness：1-50mm
• Width：1-2m
• Length：1-20m
• Transport Package：Packing in Rolls
• Specification：Standard Size
• Trademark：3A Rubber
• Origin：China
• HS Code：40082100
• Production Capacity：100000kgs,Month

Basic Info.

Model NO. 3A5006 Color Black, Grey, White etc. Quality Industrial Grade Surface Smooth, Impression Fabric Tensile Strength 4-12MPa Hardness 40-80shore a Elongation 250%-380% Density 1.25-1.5g/cm3 Thickness 1-50mm Width 1-2m Length 1-20m Transport Package Packing in Rolls Specification Standard Size Trademark 3A Rubber Origin China HS Code 40082100 Production Capacity 100000kgs/Month

Product Description

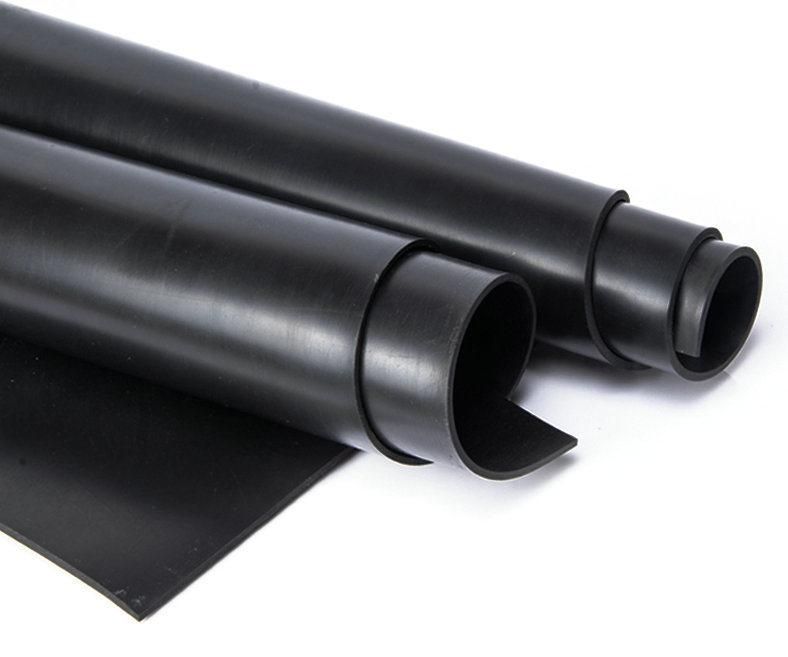

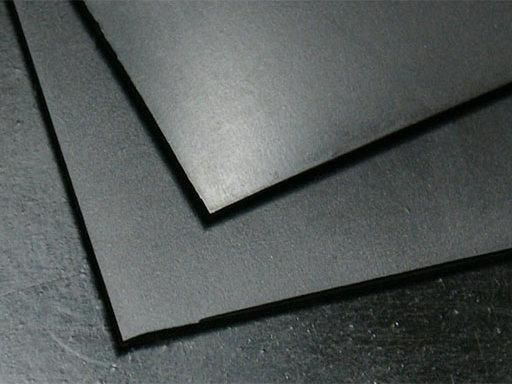

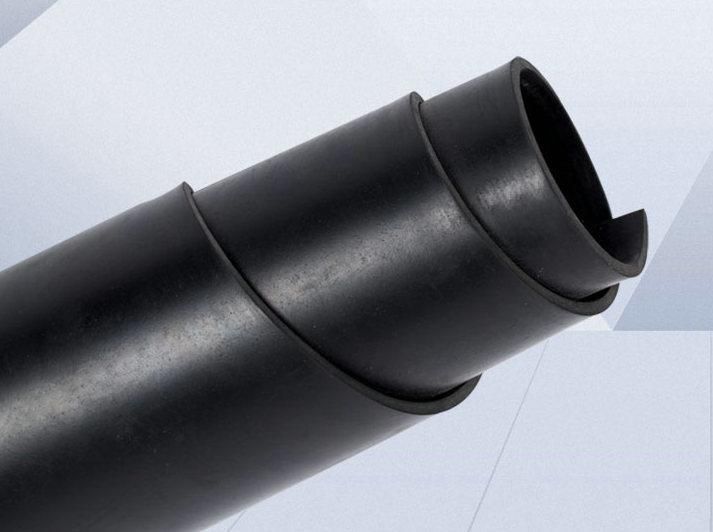

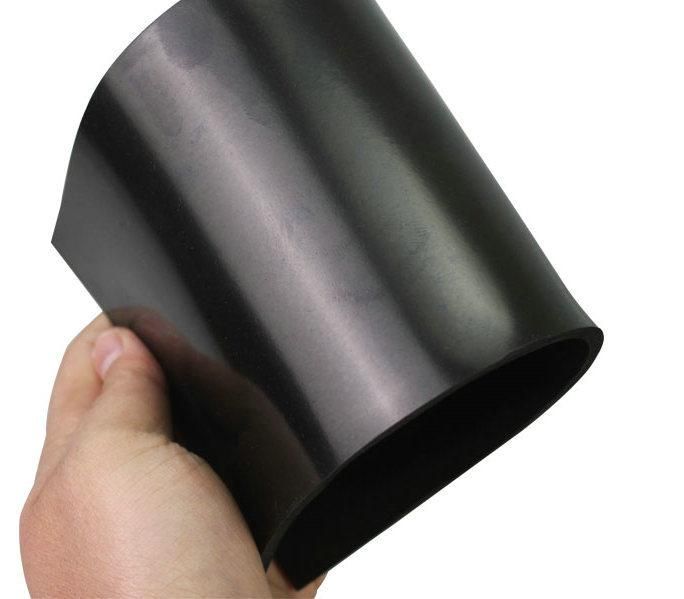

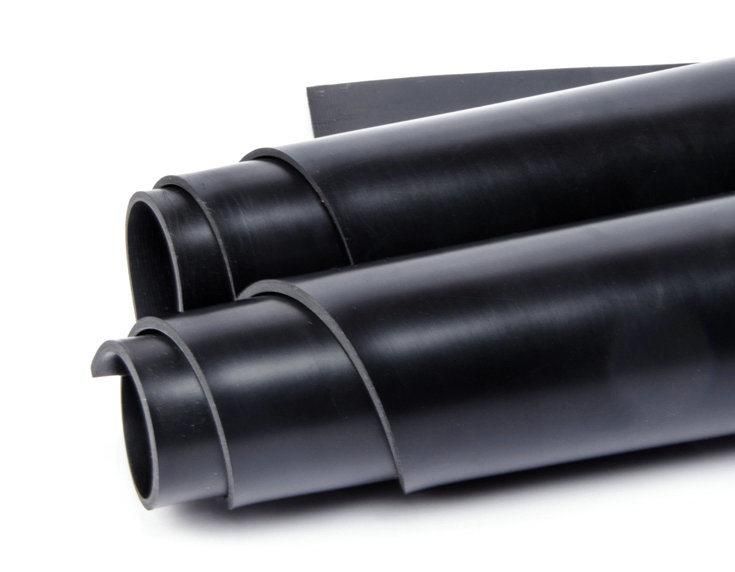

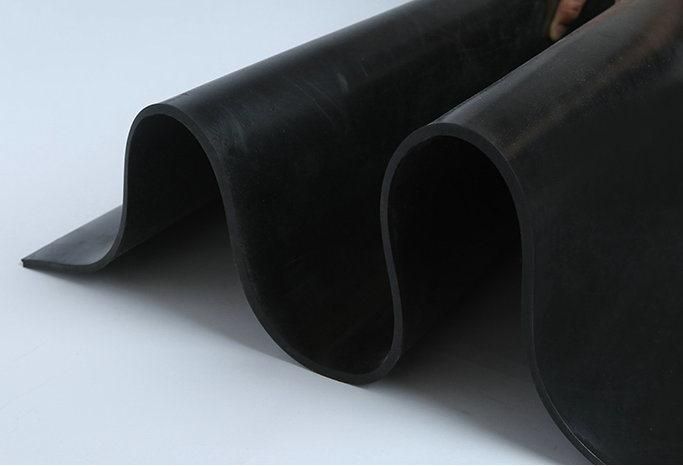

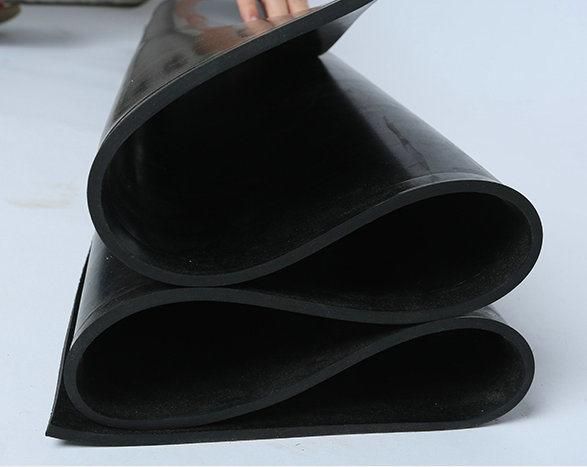

Hypalon Rubber Sheet , Hypalon Sheets , Hypalon Sheeting , Hypalon Rolls for Industrial Seal (3A5006)

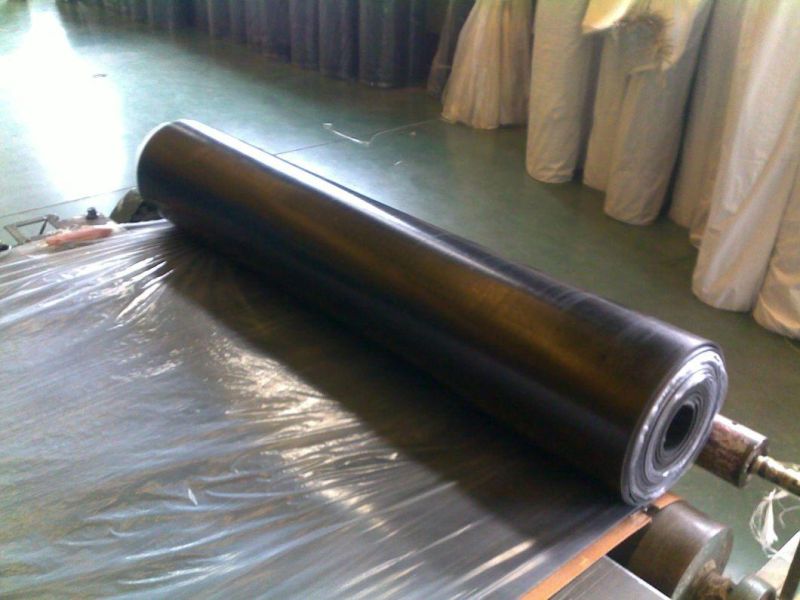

Description: the hypalon rubber sheet, hypalon roll are made by drum vulcanizer(ROTOCURE) or plate vulcanizer with high quality hypalon material. The hypalon is a synthetic rubber for chlorosulfonated polyethylene(CSM) which one well known for its resistant to chemical, extreme temperature and UV. With wide service temperatures ranging from -40°C to 140°C., Hypalon rubber offers an excellent resistance to environmental conditions especially ozone and UV light, and is excellent resistant for corrosive chemicals. In addition, Hypalon are outstanding in resistance to deterioration by heat, oils, and many chemicals and fluids. so it is recommended for outdoor applications that require durability and tough enough to use for seals and equipment protection for the chemical and automotive industries. 1-10mm thickness made by drum vulcanizer(ROTOCURE) with shiny surface, 12-100mm thickness  made by plate vulcanizer for higher thickness. With middling hardness and high tensile strength, excellent performance of aging resistance, oxygenation resistant, high temperature resistant, low temperature resistant, oil resistant, acid and alkali resistant, chemic cautery resistant, working in the liquid which contains 70% acid or alkali at the temperature of -40°C - +140°C. Apply to punch all kinds of seals, gaskets, chemical container lining with other shapes and cover on the mechanical equipments.



Specifications:

material: virgin hypalon or hypalon+EPDM

quality: industrial grade

color: black, red, white, grey etc.

surface: smooth/smooth, smooth/impression fabric, double impression fabric

Insertion: reinforce and insert 1-3PLY cotton, polyester, EP fabric or wire mesh SS201, SS304, SS316

tensile strength: 8-12Mpa

hardness: 50, 60, 70+/-5shore A

elongation: 350%

density: 1.4g/cm³

working temperature: -40°C - +140°C

thickness: 0.5-100.0mm

width: 0.1-2.0m

length: 1-20m

OEM & customized size are agreed

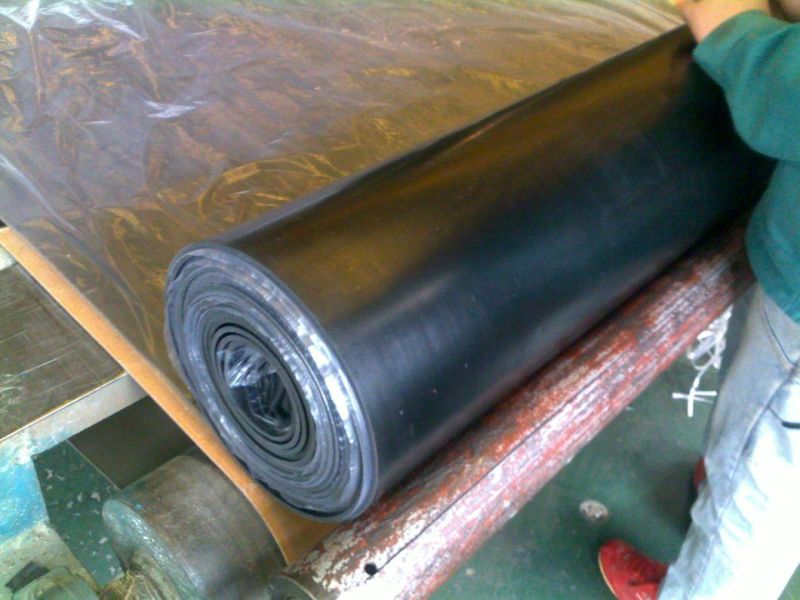

packing in rolls and pallets

***when you enquiry, pls confirm the tensile strength, hardness, color, size and quantity***
