• Model NO.：SAE 100 R2 AT
• Outer Tube：Neoprene
• Length：100m,Roll, 50m,Roll
• Certification：ISO9001 and Ce
• Temperature：-40 Degree~ +100 Degree
• Surface：Cloth or Smooth
• Transport Package：Well Packed by Striped or OPP Fims
• Specification：3,16" to 2"
• Trademark：Passion or as per customer′s request
• Origin：Zhejiang, China
• HS Code：7307990000
• Production Capacity：30, 000 Each Month

part
In
Hose Size ID DIN Dash Size
Hose   OD
Max.Working pressure
Min.Bend Radius
Min..burst pressure
Weight
(ibs/foot)
in
mm
psi
mpa
in
mm
psi
mpa
GR2SN-03
3/16
4.8
0.484
12.3
6000
41.4
3.5
89
24000
165.5
0.2
GR2SN-04
1/4
6.4
0.593
15.1
5800
40
4
102
23200
160
0.24
GR2SN-06
3/8
9.5
0.753
19.1
4800
33.1
5
127
19200
132.4
0.34
GR2SN-08
1/2
12.7
0.875
22.2
4000
27.6
7
178
16000
110.3
0.43
GR2SN-10
5/8
15.9
1
25.4
3630
25
8
203
14520
100.1
0.5
GR2SN-12
3/4
19
1.157
29.4
3120
21.5
9.5
241
12480
86
0.61
GR2SN-16
1
25.4
1.5
38.1
2400
16.5
12
305
9600
66.2
0.88
GR2SN-20
11/4
31.8
1.877
47.7
1820
12.5
16.5
419
7280
50.2
1.2938
GR2SN-24
11/2
38.1
2.129
54.1
1310
9
20
508
5240
36.1
1.6134
GR2SN-32
2
50.8
2.627
66.7
1160
8
25
635
4640
32
1.9825

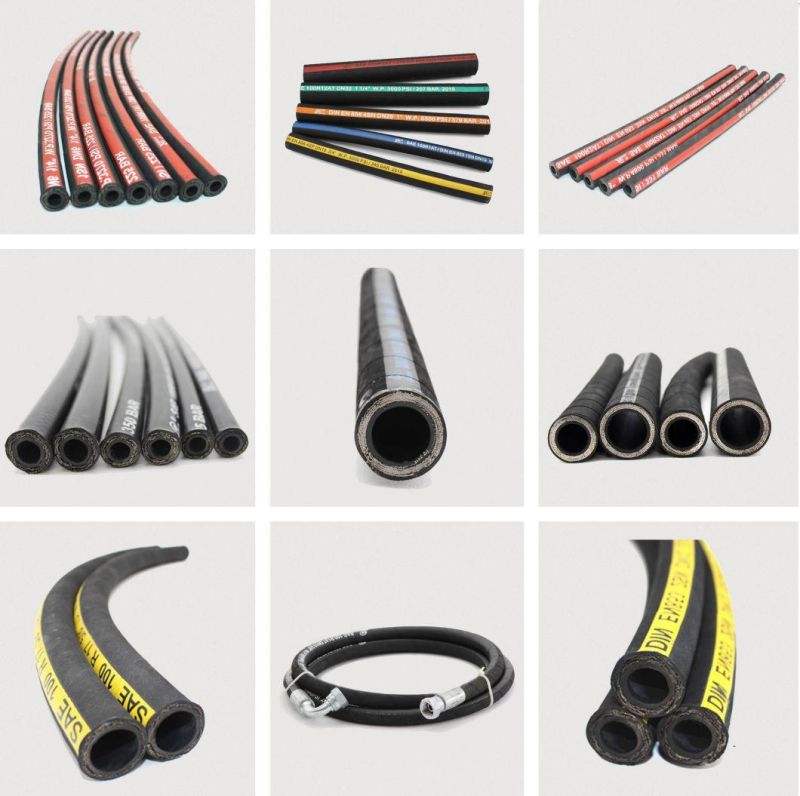

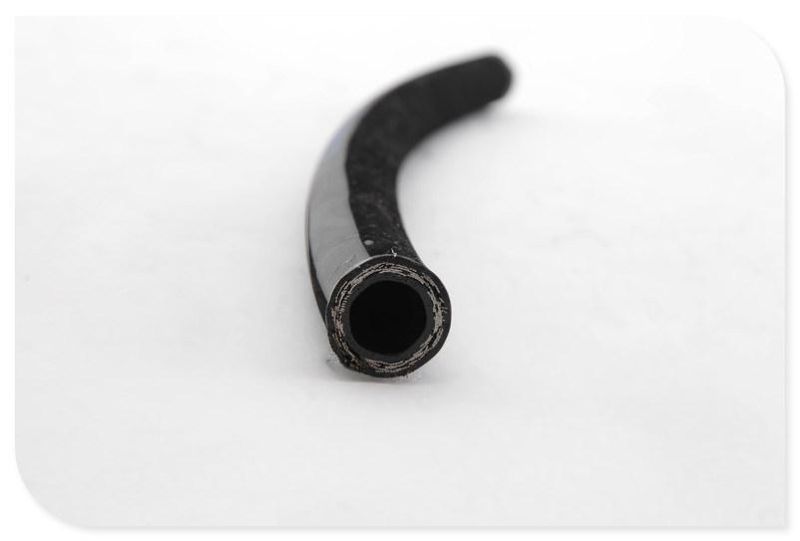

Picture of Product



Other products we supply

* Hydraulic Fittings
* PTFE Hoses
* Rubber Air/Water Hoses
* Rubber Gas/LPG Hoses
* Fuel Hoses
* Other kinds of Rubber and Plastic Hoses

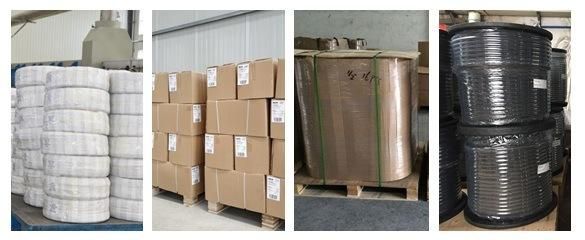

Packaging
Well packed by poly stripes or as your requirement.

Shipping
We ship the goods by express, by air, by sea or according to your requirement.

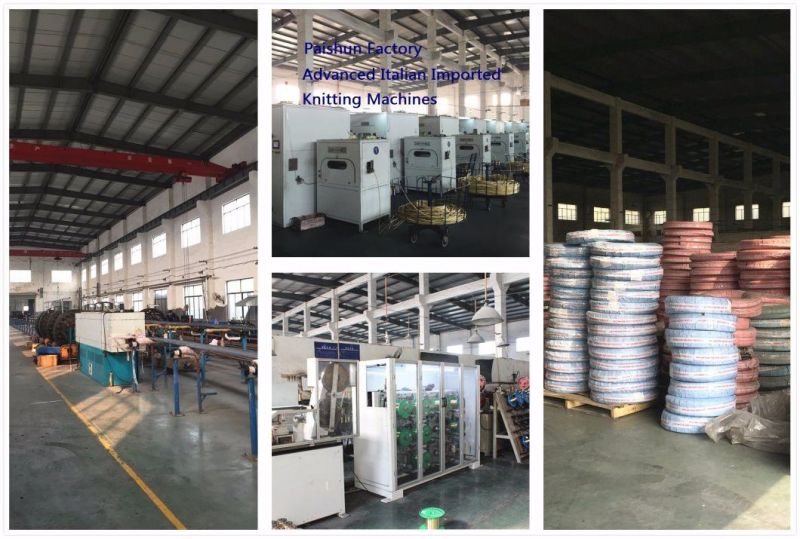

Workshop
We just imported 14 sets of brand new automatic inner hose knitting machines from Italy. The knitting speed is faster, production capacity has been greatly improved, quality is better and more stable.

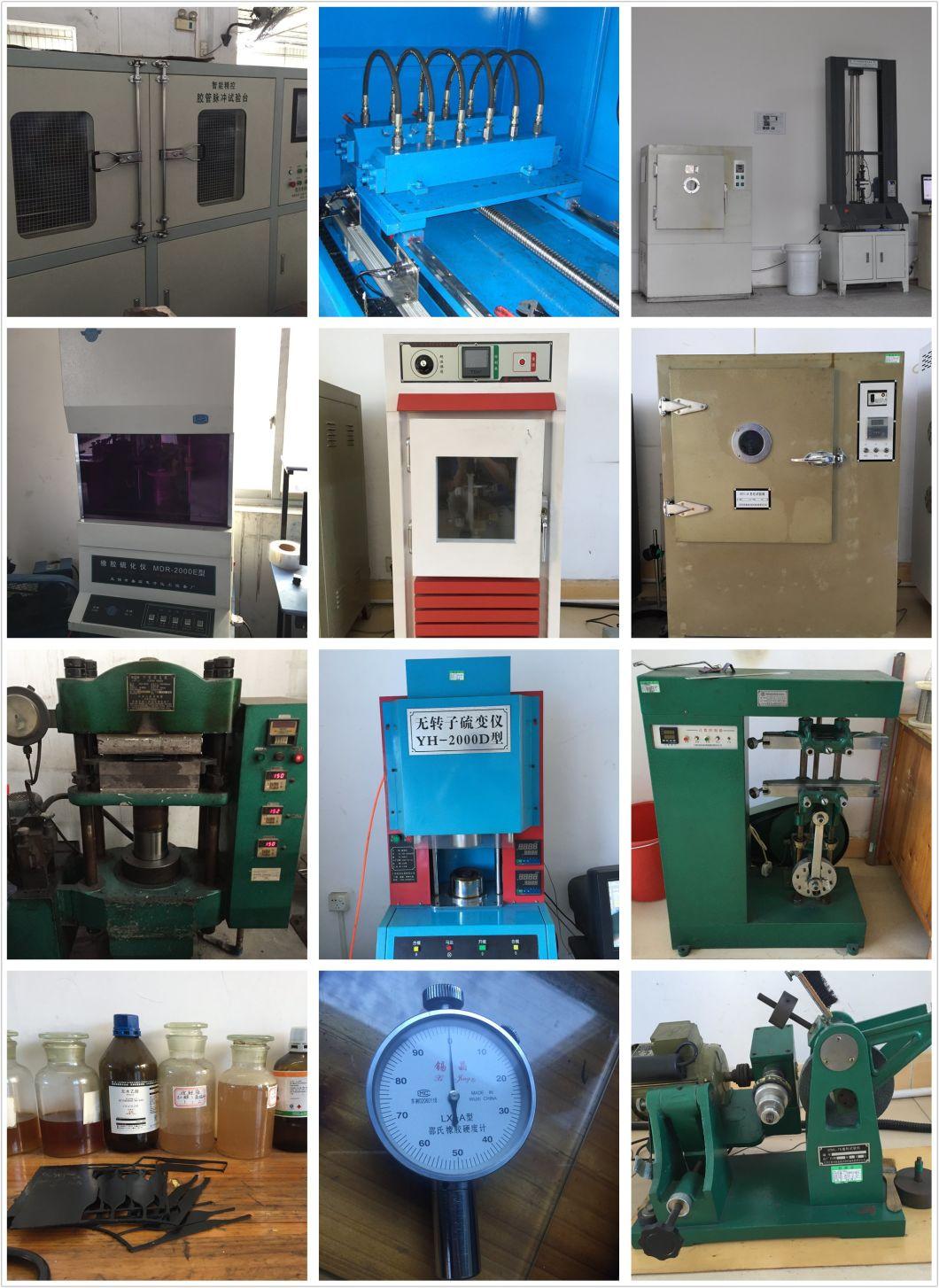

Test Machines

In order to ensure the quality of our hydraulic hoses are good and stable. We test every batch of goods before sent out. Below are some common tests.
1 Working pressure test
All the hoses need to do this test before shipment.
2 Burst pressure test
3 Impulse test
1 wire and 2 wire braided hoses pass the impulse testing of 200,000 times; 4 wire spiral hoses pass the impulse testing of 400,000 times.

We also run other tests such as oil resistance test, ozone resistance test, aging test, etc. The test report can be provided.

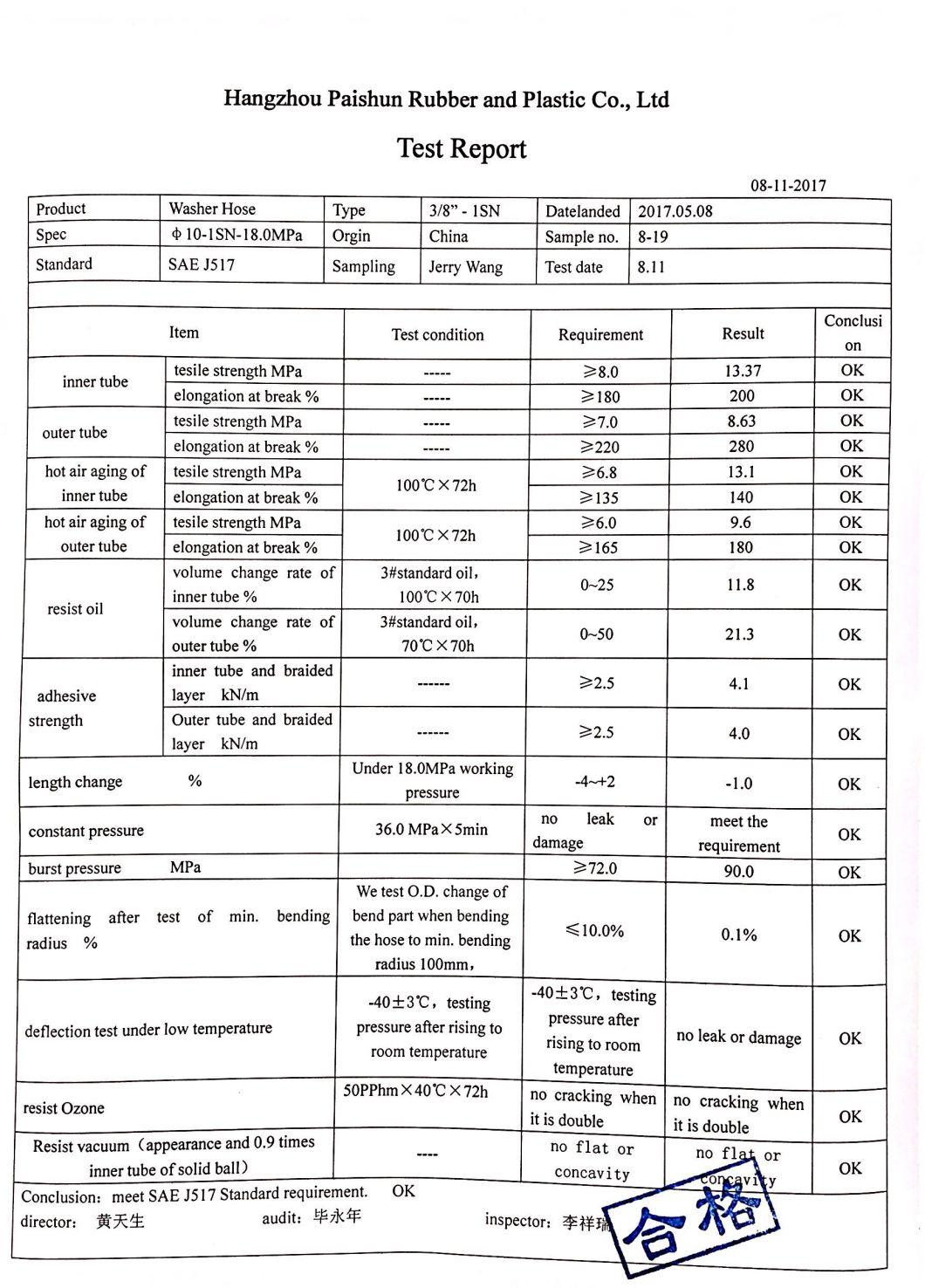

Test Report Sample

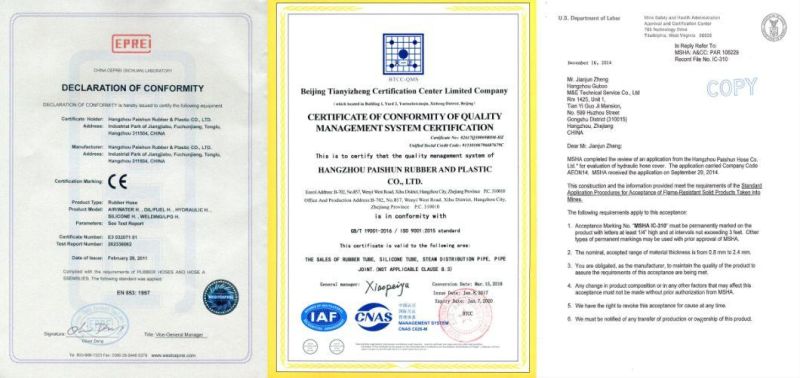

Certification

Paishun has various types of certificates, such as ISO, CE, Rohs, MSHA, etc.



About Paishun

Paishun factory covers a land of over 3 hectares, and the workshops occupy a surface of 25000 square meters. We own complete production lines of the rubber mixing process, cold feeding material extrusion process, microwave vulcanization process, and high-speed braiding process, etc.

We produce mainly the industrial hoses like Air Hose, Water Hose, Oil Hose, Welding Hose, Hydraulic Hose, and Assemblies. Paishun, being a rapidly growing enterprise focusing on the professional production of pure rubber hoses and braided rubber hoses, its yearly production capacity reaches 10 million meters.

Our key policy is "enterprise may thrive with the technology, and may last with good quality". So we put much investment in the research team, and in advanced testing laboratory equipment. We now use a series of tensile testing machine, vulcanization testing device, aging testing chest, pressure testing machines to ensure effective quality control. All these testing machines and related procedures may form a complete quality control system, beginning from the selection of the raw materials till the end step. Thus, we wish our products can satisfy in maximum our customers, and help them to gain more and more market share.

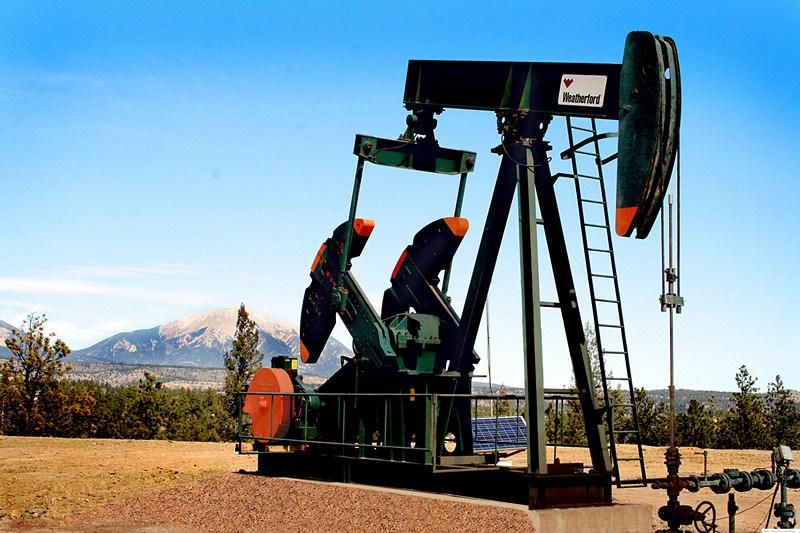

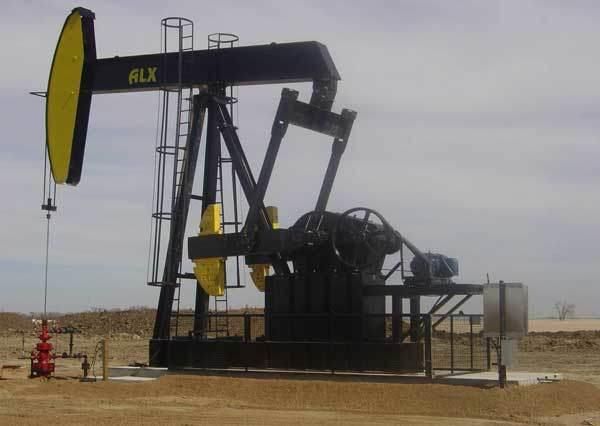

Application Images:
