• Model NO.：DB-QB
• Product Name：Y Type Double Lips Dual Skirt Rubber Polyurethane
• Porduction Process：Hot Casting Polyurethane Elastomer
• Benefits：Reduces Dust Leakage, Wear Resistant
• Features：Lightweight, Compact, Easy to Install
• Advantage：Factory Price, High Quality, Warranty, Experience
• Function：Prevent Material Spillage, Effective Seal
• Hardness：70 Shore a, 63 Shore a
• Bevel Edge：35 Degree or 45 Degree or Straight
• Description：Conveyor Polyurethane Skirting
• Keyword：Y Type Skirt Rubber
• Certificate：ISO, Ce, SGS
• Transport Package：Crates, Pallet
• Specification：15mm thickness * 150mm,190mm width * length
• Trademark：Debon
• Origin：China
• HS Code：3920999090
• Production Capacity：50000 Meters Per Month

Basic Info.

Model NO. DB-QB Product Name Y Type Double Lips Dual Skirt Rubber Polyurethane Porduction Process Hot Casting Polyurethane Elastomer Benefits Reduces Dust Leakage, Wear Resistant Features Lightweight, Compact, Easy to Install Advantage Factory Price, High Quality, Warranty, Experience Function Prevent Material Spillage, Effective Seal Hardness 70 Shore a, 63 Shore a Bevel Edge 35 Degree or 45 Degree or Straight Description Conveyor Polyurethane Skirting Keyword Y Type Skirt Rubber Certificate ISO, Ce, SGS Transport Package Crates, Pallet Specification 15mm thickness * 150mm/190mm width * length Trademark Debon Origin China HS Code 3920999090 Production Capacity 50000 Meters Per Month

Product Description

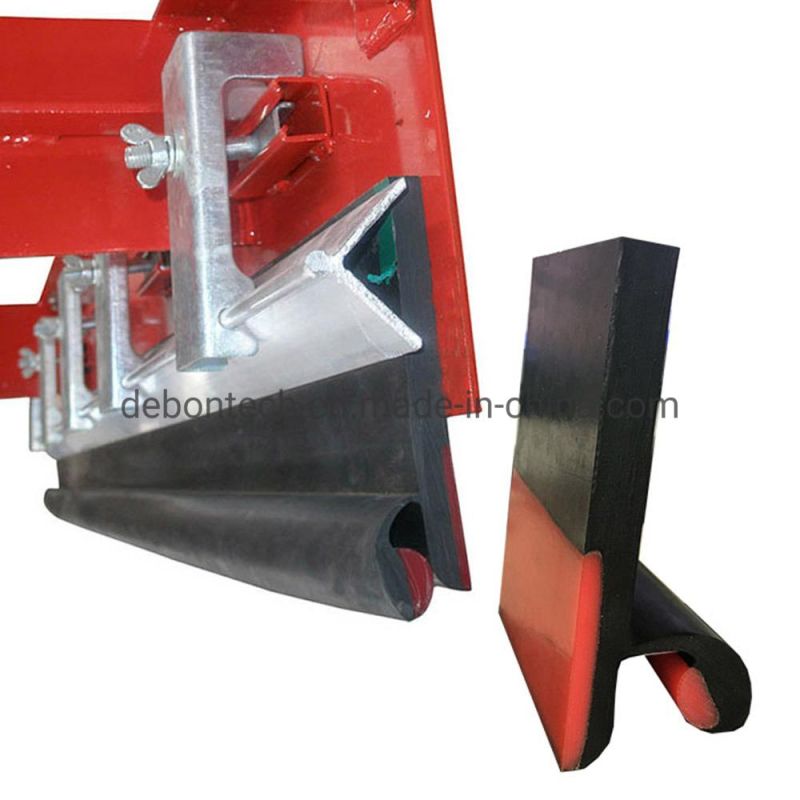

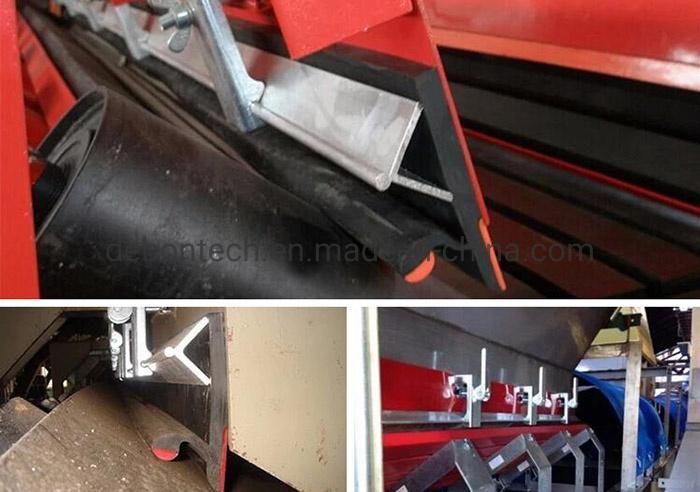

Y Type Double Lips Dual Skirt Rubber Polyurethane Conveyor Skirting Double lips Dual skirt rubber seal, inside layer keeps materials, outside layer prevent dust-leakage.
The parts where contact the belt is made of polyurethane, which has longer lifetime and do not damage the belt.
Clamp units are easy to install, adjust and maintain.


Specification of Y Type Double Lips Dual Skirt Rubber Polyurethane Conveyor Skirting:
Thickness: 15mm
Width/Height: 150mm, 190mm
Length: 10m, 15m, 20m, 30m as request

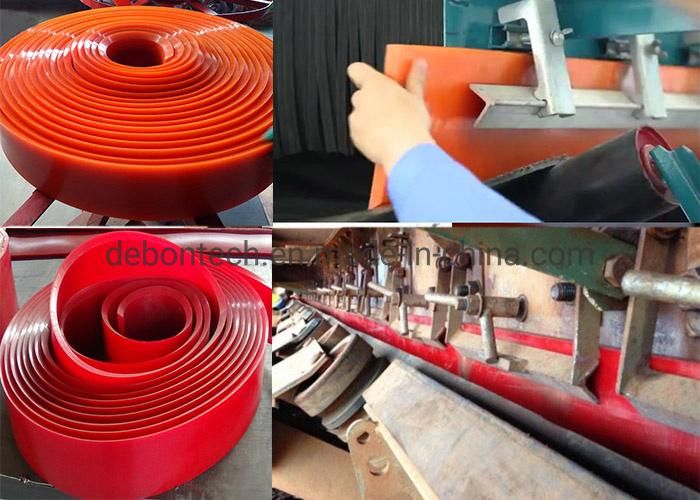

Color: red polyurethane + black rubber

Features of Y Type Double Lips Dual Skirt Rubber Polyurethane Conveyor Skirting:

* Up to 3~5 times better wear life than rubber
* High wear and abrasion resistance, high tear resistant
* Provides effective sealing on any speed belt.
* Reduces dust leakage, Wear resistant, Low contact pressure, Long life, Belt friendly.
* Toughness - Tensile strength
* Easy to install
* High load bearing ability
* Mechanical properties
* Resistance to water, oil, grease
* Cost effectiveness (when long service life of PU parts are taken into account)

Related Products:

Specification of Coal Mining Industrial Conveyor Belt Skirting Polyurethane Conveyor Skirt:
Colors: Red, Orange,Green,Navy Blue,Black
Thickness: 10mm 12mm 14mm 15mm 16mm 20mm etc.
Hardness: 63 shore a, 65 shore a, 70 shore a, 85 shore a ,90 shore a , etc.
Length: 15m 20m 30m per roll
Width: 100mm, 125mm, 150mm, 200mm, 250mm, 300mm, 400mm,customize.
Applicable on 0°, 35° and 45° Troughing Angles.

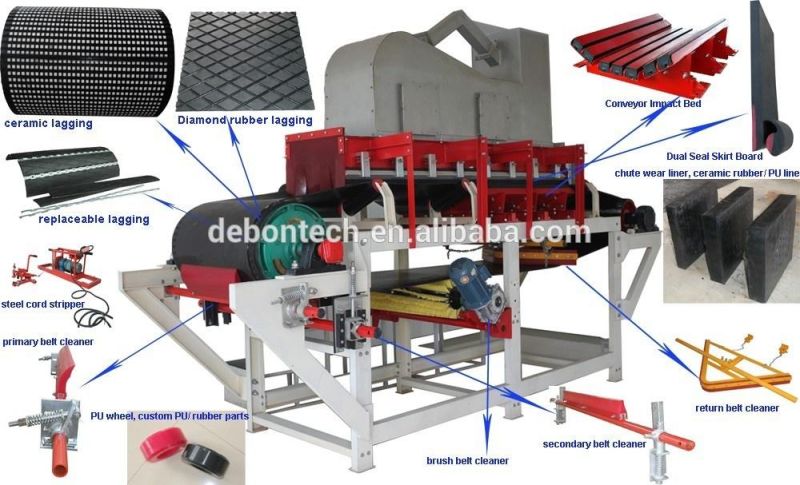

Main Products:

Company Info:

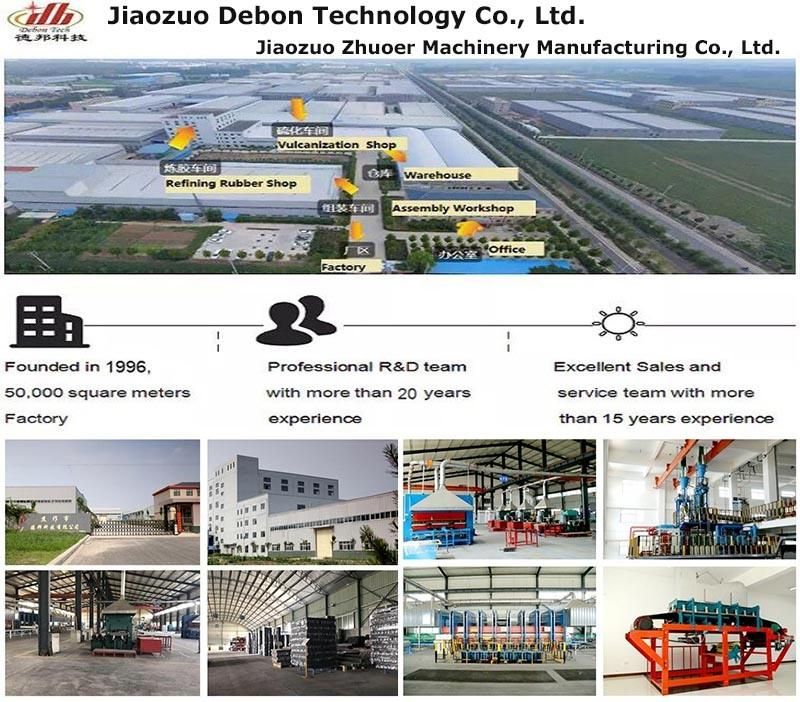

Jiaozuo Debon is a manufacturer with 126 employees, including 35 engineers. We are manufacturer specialized in designing and manufacturing Industrial Conveyor Belt Related Products. Our company is certified to ISO 9001:2008 Quality Management System, and rubber lagging products were certified to "SAFETY CERTIFICATE OF APPROVAL FOR MINING PRODUCTS".

Main Market: Southeast and Eastern Asia , Europe, South America, North America, Middle East, Africa, Oceania.








Y Type Double Lips Dual Skirt Rubber Polyurethane Conveyor Skirting
