5/8" Inch W. P 300psi Rubber Hose for Compressor Air
Hangzhou Paishun Rubber and Plastic Co., Ltd.- Material：SBR & Nr
- Capability：Rubber Air Hose
- Color：Black, Red, Yellow, Blue, Green, Orange, etc.
- Size：5,8" Inch
- Inner Diameter：16mm
- Outer Diameter：24mm
Base Info
- Model NO.：5,8"
- Certification：Ce
- Cover：Nr & SBR Synthetic Rubber
- Standard Length：50m, 100m
- Hose Surface：Smooth Surface
- Reinforcement：High Tensile Polyester Fiber Braided
- Standard：ISO3821
- Transport Package：OPP Film or Woven Poly Strips
- Specification：5,8"
- Trademark：PASSION
- Origin：China ( Mainland )
- HS Code：40093100
- Production Capacity：300000meters,Month
Description
Overview
Product Description
Reinforcement: High tensile polyester fiber braided.
Cover: NR & SBR synthetic rubber.
Temperature: -30ºC - +80ºC
Color: Black, Red, Yellow, Blue, Green, Orange, etc.
Application: Mainly used for conveying of air, insert gas and water in mining, construction, engineering, shipbuilding, steel production etc.
Standard length: 50m, 100m.
Product ParametersInner Diameter Outer Diameter Working Pressure Burst Pressure Length Measurement Weight inch mm mm bar psi bar psi m cbm/roll kg/m PRA-05 3/16" 5 11.5 20 300 60 900 100 0.02 0.15 PRA-06 1/4" 6 13 20 300 60 900 100 0.025 0.17 PRA-08 5/16" 8 15 20 300 60 900 100 0.03 0.22 PRA-10 3/8" 10 17 20 300 60 900 100 0.04 0.26 PRA-13 1/2" 13 21 20 300 60 900 100 0.07 0.4 PRA-16 5/8" 16 24 20 300 60 900 50 0.06 0.45 PRA-19 3/4" 19 29 20 300 60 900 50 0.07 0.7 PRA-25 1" (1b) 25 36 12 180 36 540 50 0.09 0.85 PRA-25-2 1" (2b) 25 37 20 300 60 900 50 0.1 0.95 PRA-32 1-1/4" 32 44 10 150 30 450 50 0.16 1.4 PRA-38 1-1/2" 38 51 10 150 30 450 50 0.20 1.7 PRA-51 2" 51 65 10 150 30 450 20 0.20 2.2
Packaging & Shipping
Shipping: We ship the goods by express, by air, by sea or according to your requirement.
Lead time: according to your quantity, generally speaking, 35 days 20' container.
Packing & Delivery:
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile:
Paishun is a leading rubber hose manufacturer in east China for over 13 years, with professional and permanent technical service and support for you.
We own complete production lines of rubber mixing process, cold feeding material extrusion process, micro wave vulcanization process, and high speed braiding process, etc.
Certifications
Paishun has various types of certificates, such as ISO9001, CE, RoHS, etc.Exhibition
Our Advantages
Competitive Advantage:
♦ How about your delivery time?
• Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
♦ Can you produce according to the samples?
• Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
♦ What is your sample policy?
• We can supply the sample for free, but the courier cost for you to pay.
♦ Do you test all your goods before delivery?
• Yes, we have 100% test before delivery
♦ How do you make our business long-term and good relationship?
• We keep good quality and competitive price to ensure our customers benefit ;
• We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
How to contact us?
If you want to Know More Details. Please feel free to Contact Us!
Web: http//cnparshun.en.made-in-china.com
Rubber Air Hose (smooth surface)
Construction: Tube: NR& SBR synthetic rubber.Reinforcement: High tensile polyester fiber braided.
Cover: NR & SBR synthetic rubber.
Temperature: -30ºC - +80ºC
Color: Black, Red, Yellow, Blue, Green, Orange, etc.
Application: Mainly used for conveying of air, insert gas and water in mining, construction, engineering, shipbuilding, steel production etc.
Standard length: 50m, 100m.
Product Parameters
Item code
Detailed Photos

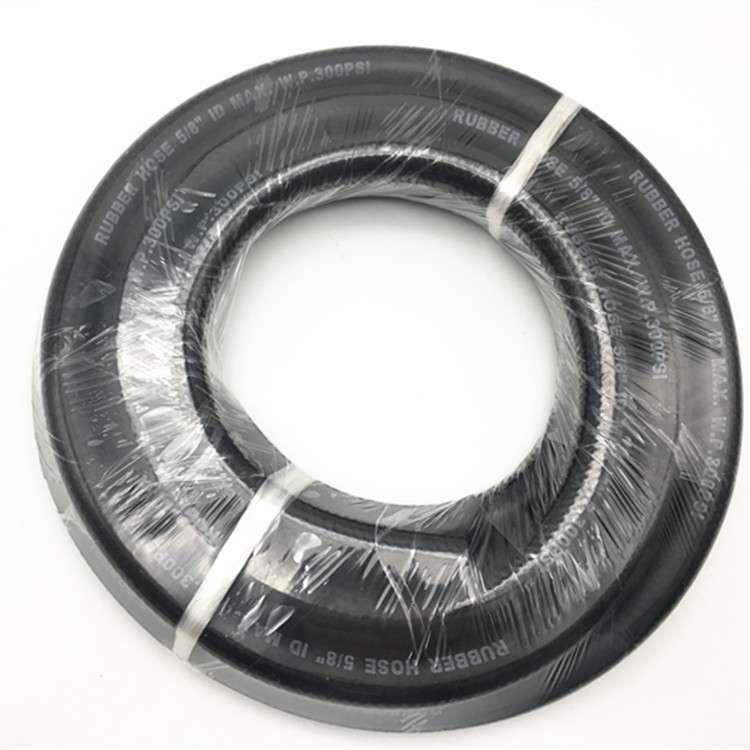

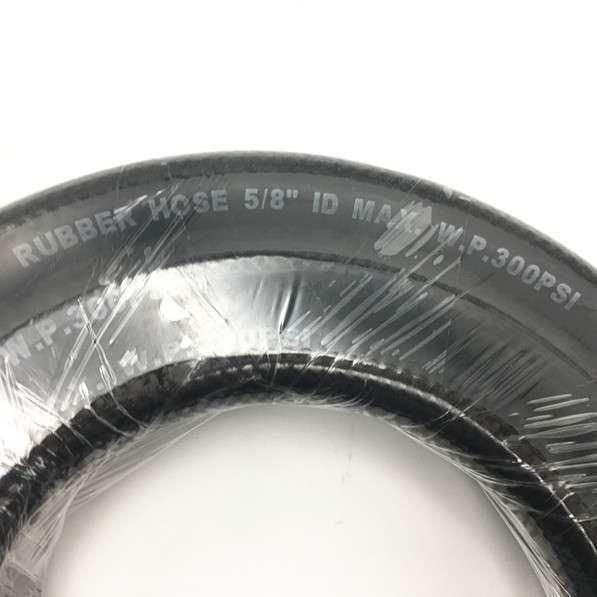

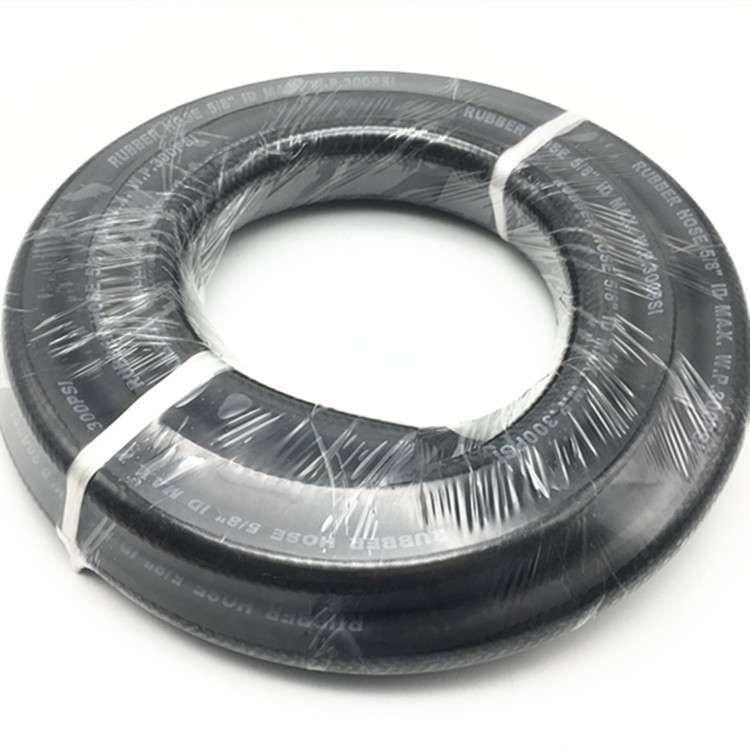

Product Photo:
Packaging & ShippingPackaging: Well packed by transparent OPP film or according to your requirement.
Shipping: We ship the goods by express, by air, by sea or according to your requirement.
Lead time: according to your quantity, generally speaking, 35 days 20' container.
Packing & Delivery:
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile:
Paishun is a leading rubber hose manufacturer in east China for over 13 years, with professional and permanent technical service and support for you.

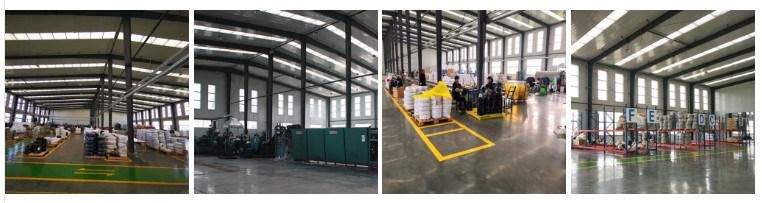

We own complete production lines of rubber mixing process, cold feeding material extrusion process, micro wave vulcanization process, and high speed braiding process, etc.
Certifications
Certifications:
Paishun has various types of certificates, such as ISO9001, CE, RoHS, etc.Exhibition
Exhibition:
Our Advantages Competitive Advantage:
1) We are professional manufacturer with 14 years' experience, enjoy good reputation oversea
2) Full range of advanced equipment ,testing line ensure production capacity and satisfactory quality
3) Top quality with competitive price and fast delivery bring us very good reputation all over the world .
4) Our Hose includes such features as constant working pressures, low expansion, low temperature
and high temperature applications.
Product Advantages:
High Quality
Competitive Price
Fast Delivery Time
Fast Response on Service
Performance requirements:According to the customers' requirements
(Tensile strength, elongation, compression set, high temperature resistance, low temperature resistance, ozone resistance, density and so on)
