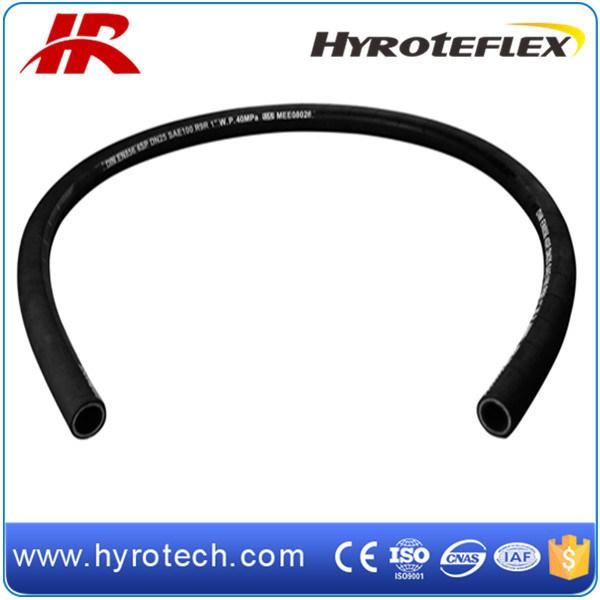

Competitive Price! Hydraulic Hose SAE 100r9

Qingdao Hyrotech Rubber & Plastic Products Co., Ltd.

Material：Nitrile Rubber
Capability：Hydraulic Hose
Color：Black and Colourful
Size：6mm--51mm
Model：Hydraulic Hose SAE 100r9
Working Temperature：-40c to +120c

Base Info

Model NO.：SAE 100R9
Length：20meters to 50meters
Transport Package：as Your Request
Specification：CE
Trademark：Hyroteflex
Origin：Qingdao of Shangdong
HS Code：40093100
Production Capacity：5000000meters, Per Year

Description

DNHose I.DWire O.DHose O.DWorking PressureBurst PressureMinimum Bend RadiusWeightLengthinchmmmmmmMPapsiMPapsimmkg/mmetres193/419.028.432.134.55000138.0200002401.6820/4025125.435.238.734.55000138.0200003002.2420/403211/431.841.950.234.55000138.0200004203.9020/403811/238.148.857.734.55000138.0200005005.0720/4051250.863.271.534.55000138.0200006307.9220/40
Competitive Price! Hydraulic Hose SAE 100r9

Competitive Price! Hydraulic Hose SAE 100r9
