• Model NO.：LO
• Standards：GB,T7984-2001, DIN22102, BS490, As1332, Rma, Jisk6
• The Strength Specifications：9-25 MPa
• Belt Width：400-2200mm
• Used in：Chemicals, Pulp, Pottery, Foodstuff, Fertilizer an
• Transport Package：PVC Water-Proof Cloth, Wooden Box or Steel Fram
• Trademark：HUAYUE
• Origin：China
• HS Code：4001210000
• Production Capacity：5000 Meters Per Day

Basic Info.

Model NO. LO Standards GB/T7984-2001, DIN22102, BS490, As1332, Rma, Jisk6 The Strength Specifications 9-25 MPa Belt Width 400-2200mm Used in Chemicals, Pulp, Pottery, Foodstuff, Fertilizer an Transport Package PVC Water-Proof Cloth, Wooden Box or Steel Fram Trademark HUAYUE Origin China HS Code 4001210000 Production Capacity 5000 Meters Per Day

Product Description

Manufacturer  direct  sale  coveyor  belt/oil  resistant conveyor beltApplicationOil resistant tape/conveyor belt has good oil resistance and organic solvent resistance. It is fit for carrying materials including oil and organic solvent.Characteristic

Oil resistant type/conveyor belt carries parts and components coated with machine oil, heavy-oil treated coal in cooking plants and electric power generating plants, soybean draff, fish meat and other oily materials. Materials containing non-polar organic solvents and fuel. Oil resistant conveyor belt compounded of oil resistant synthetic rubber with good resistance to the damaging effects encountered when conveying oil contaminated or treated materials. Overlay glue is NBR which has good oil resistance According to consumer's ordering we choose strengthen material.

Type:
The product is made of cotton canvas, nylon canvas or EP canvas and finished through the processes of pressing, shaping, vulcanizing and etc. It is suitable for transporting oily materials.
1. It can be divided into two types according to the characteristics of the cover; Anti-abrasive type(D) and Ordinary type (L).
2. According to different oil resistance, it falls into two type of Y1 and Y2.

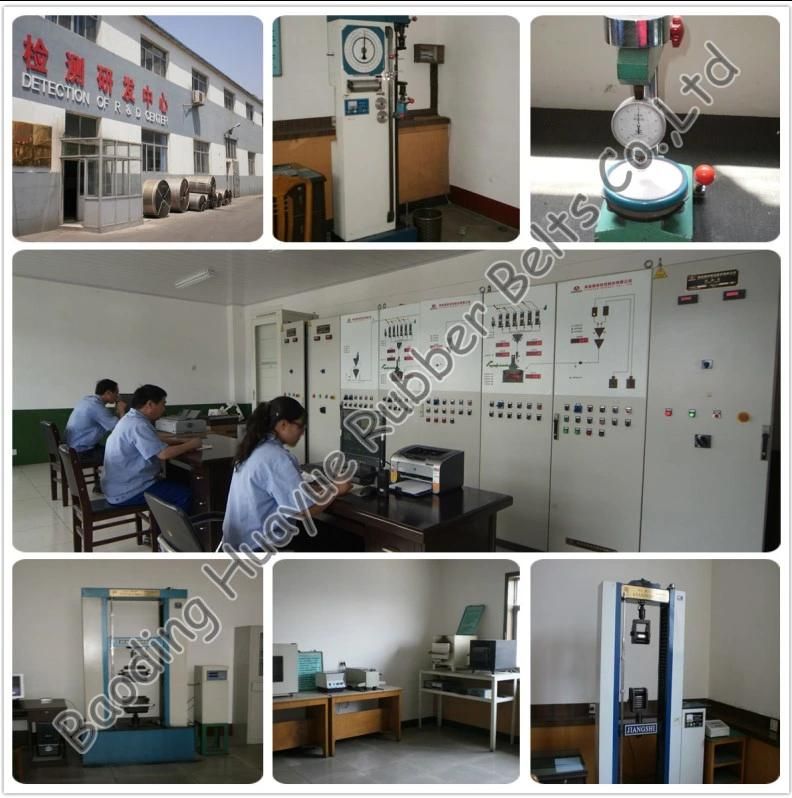

By preventing the swelling phenomenon, cover rubber flaking phenomenon and reverse through phenomenon that occur when oil-containing material is conveyed, it prolongs the belt's life. It is used to convey chemicals, pulp, pottery, foodstuff, fertilizer and when drugs are attached to the conveyed material. Accordig to the conveyed material or the kind of drug attached to the conveyed material, acid-proof or alkali-proof cover rubber should be selected.Testing:

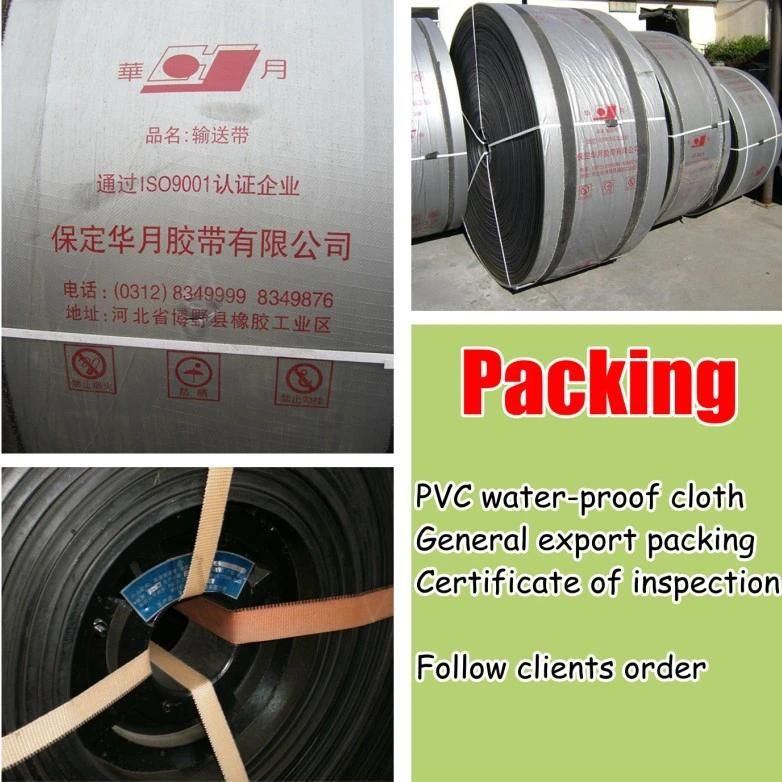

Packing:





	Tensile Strength	Elongation at Break	Maximum Abrasion Loss	Polymer Rubber	Working Temperature
	mpa	% min	Mm3		Degree Centigrade
OR	15	300%	150	NBR Blended	-30 to +60
MOR	12	300%	300	NBR Blended	-30 to +50
OHR	15	400%	180	NBR Blended	+ 100 lump
