• Model NO.：Concrete Pump Hose
• W.P：85bar
• Transport Package：Rolls Packed by Plastic Film or Woven Bag
• Specification：3,4′′ to 6′′
• Trademark：OEM,KINGDAFLEX
• Origin：China
• HS Code：4009210000
• Production Capacity：800, 000m,Month

Basic Info.

Model NO. Concrete Pump Hose W.P 85bar Transport Package Rolls Packed by Plastic Film or Woven Bag Specification 3/4′′ to 6′′ Trademark OEM/KINGDAFLEX Origin China HS Code 4009210000 Production Capacity 800, 000m/Month

Product Description

85 Bar Steel Wire Reinforcement Concrete Pump Delivery Hose

The advantage of reducing concrete pump hose:
It has less weight at the boom tip, making it easier to operate for workers.
It can control smooth concrete flow, and it can eliminate splatter.
It is convenient for the application of different diameters.
The details of reducing concrete pump hose:
Structure: reducing concrete pump hose is composed of three parts: tube, reinforcement and cover.
Tube: resistant to high abrasion, mainly NR synthetic rubber.
Reinforcement: multiple layers of high tensile steel wires or polyester cords.
Cover: resistant to weather, ozone, corrosion, abrasion and cutting synthetic rubber, mainly cutting.
Temperature range:  -30°C (-22°F) to +80°C(+176°F).
Application: usually used concrete pump, concrete jetting manipulator, concrete spraying machine for conveying pump and so on.

Specification:

Size	ID(mm)	OD(mm)	Working Pressure (bar)	Burst Pressure (bar)	Bend Radius (mm)	Weight (kg/m)
2"	51mm	68±1.5	85	200	200	2.8
2.5"	64mm	85±1.5	85	200	250	4.0
3"	76mm	102±1.5	85	200	270	6.0
3.5"	89mm	116±1.5	85	200	290	7.5
4"	102mm	130±1.75	85	200	300	9.2
4.5"	115mm	143±2.0	85	200	320	10.5
5"	127mm	158±2.0	85	200	360	11.7
6"	152mm	186±2.0	85	200	570	17.0

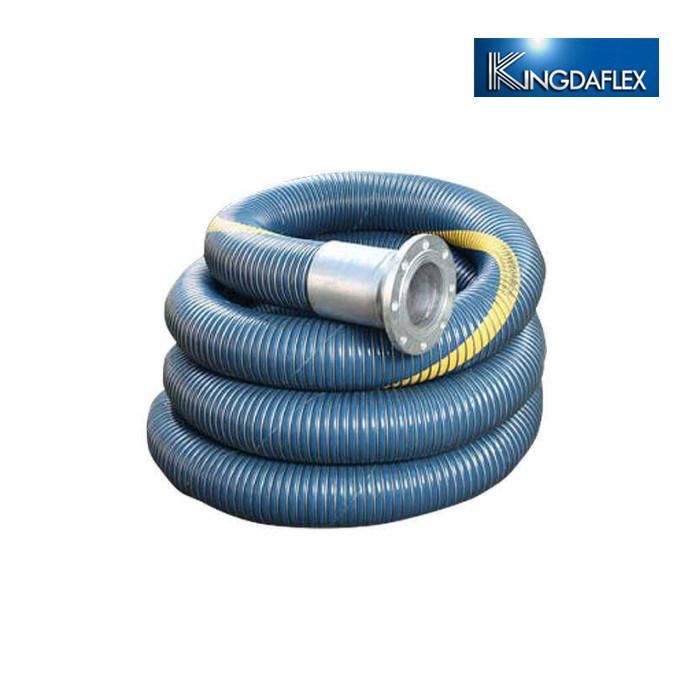

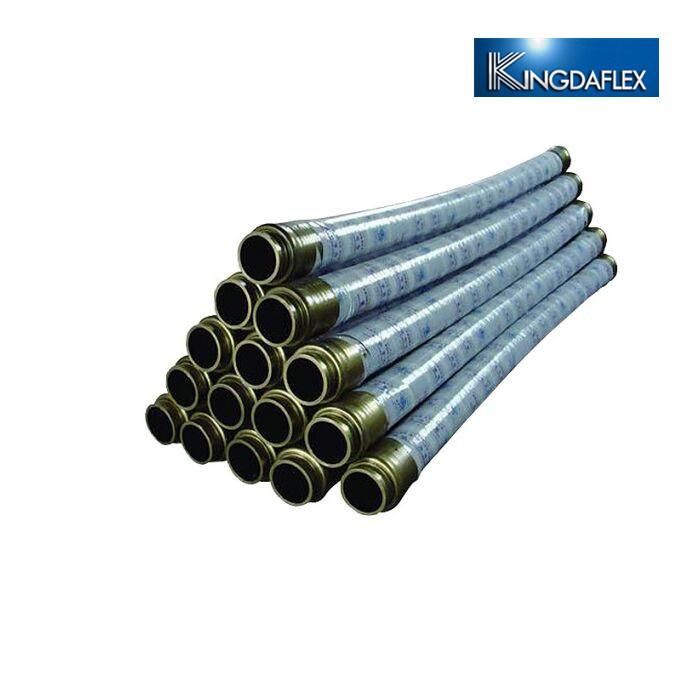

Product Show:



Our Main Product:
1. Hydraulic Hose
    SAE 100R1AT/EN853 1SN
    SAE 100R2AT/EN853 2SN
    SAE 100R5
    SAE 100R7/R8
    SAE 100R9/R12
    SAE 100R14/Teflon hose
    EN856 4SP/4SH
2. Air/Water hose
3. Welding hose
    Oxygen hose
    Acetylene hose
    Lpg hose/Propane hose
    Twin hose
4. Oil/Water suction and discharge hose
5. Sandblast hose
6. Fire sleeve
