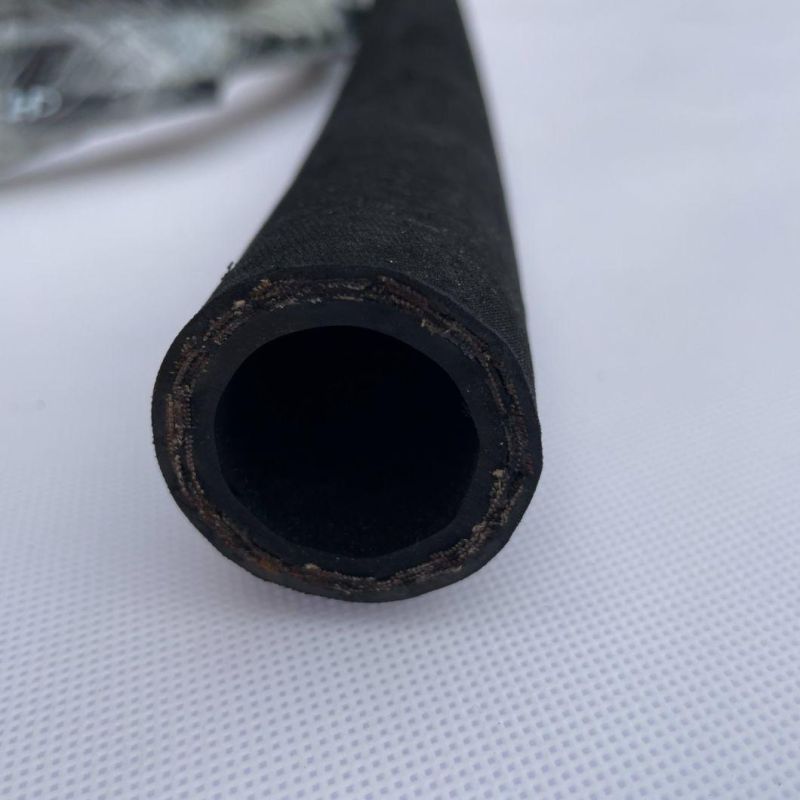

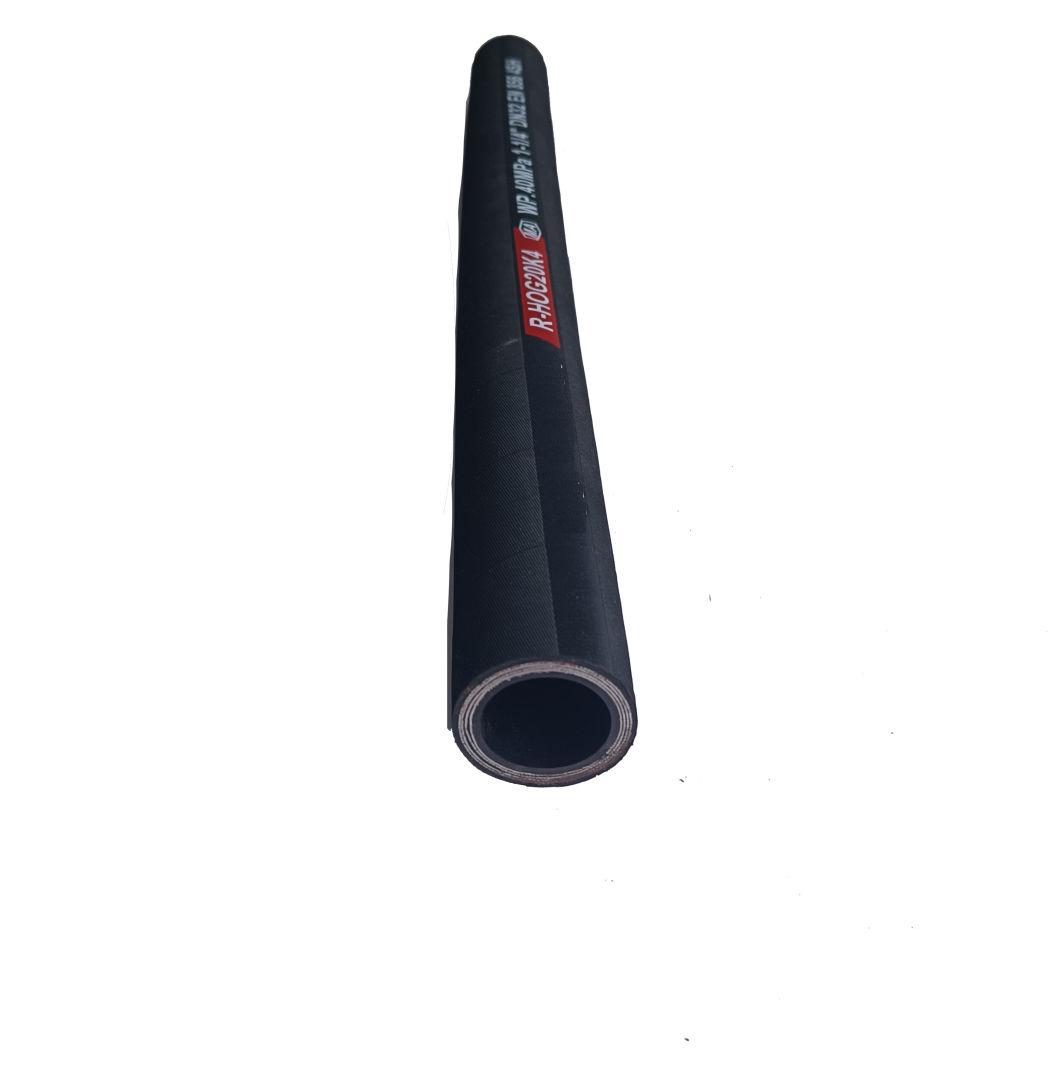

Consolidflex Oil Resistant Synthetic Rubber R15 Hydraulic Oil Hose
Consolidflex Industry Co., Ltd.- Material：Nitrile Rubber
- Capability：Acid Alkali Resistant Rubber Hose
- Color：Black
- Transport Package：Transparent Film
- Specification：0.05m³
- Trademark：Consolidflex
Base Info
- Model NO.：R15 3,4"
- Origin：Hebei
- HS Code：40093100
- Production Capacity：1000000meter,Year
Description
WeightBend Radius inch mm mm MPa psi MPa psi mm kg/m 19 3/4" 19 32.1 34.5 5000 138 20000 240 1.68 25 1" 25.4 38.7 34.5 5000 138 20000 300 2.24 32 1 1/4" 31.8 50.2 34.5 5000 138 20000 420 3.9 38 1 1 /2" 38.1 57.7 34.5 5000 138 20000 500 5.07 51 2" 50.8 71.5 34.5 5000 138 20000 630 7.91

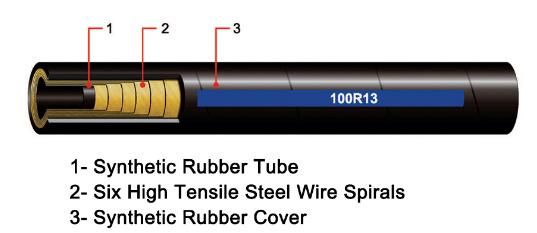

Tube:Oil resistant, synthetic rubber
Reinforcement:3/4" to 1-1/4"- four spiral wires; 1-1/2" and 2"- six spiral wires
Cover:Oil and weather resistant synthetic rubber
Temperature:-40° F / +212° F, Intermittent use up to 250° F
Application:Petroleum based hydraulic fluid, water, diesel fuels, lubricating oils, glycol, mineral oils, and more
Tube:Oil resistant, synthetic rubber
Reinforcement:3/4" to 1-1/4"- four spiral wires; 1-1/2" and 2"- six spiral wires
Cover:Oil and weather resistant synthetic rubber
Temperature:-40° F / +212° F, Intermittent use up to 250° F
Application:Petroleum based hydraulic fluid, water, diesel fuels, lubricating oils, glycol, mineral oils, and more
