• Model NO.：DB-LZ
• Color：Black Rubber Sheet
• Description：Pulley Lagging
• Product Usage：Reduce Slippage & Extend Service Life of Conveyor
• Our Advantage：Factory with Extensive Experience
• Sample：Free Sample
• Product Material：Nr, Br & Fras Approved Rubber
• Cn Bonding Layer：with Cn Bonding Layer
• Hardness：65 Shore a
• Abrasion Loss：<100mm3
• Thickness：8, 10, 2, 15, 20mm, etc
• Length：10 Meters Packed in Roll or as Per Customers′ Requ
• Transport Package：Pallet
• Specification：10mmx2mx10m, etc.
• Origin：Henan, China
• HS Code：4008210000
• Production Capacity：200, 000 Meters,Year

Basic Info.

Model NO. DB-LZ Color Black Rubber Sheet Description Pulley Lagging Product Usage Reduce Slippage & Extend Service Life of Conveyor Our Advantage Factory with Extensive Experience Sample Free Sample Product Material Nr, Br & Fras Approved Rubber Cn Bonding Layer with Cn Bonding Layer Hardness 65 Shore a Abrasion Loss <100mm3 Thickness 8, 10, 2, 15, 20mm, etc Length 10 Meters Packed in Roll or as Per Customers′ Requ Transport Package Pallet Specification 10mmx2mx10m, etc. Origin Henan, China HS Code 4008210000 Production Capacity 200, 000 Meters/Year

Product Description

Conveyor Drum Rubber Lining and Ceramic Lining

 Our advantages:
1. Manufacturer with rich experience, good quality.
2. Strong research and development capability.
3. Strict QC management.





Description:

Coefficient of friction between conveyor belt and pulley is a very important factor in determining the performance of a conveyor belt on a drive.

Low coefficient of friction may cause conveyor belt slippage and lead to more wear of the belt and belt tracking problem.

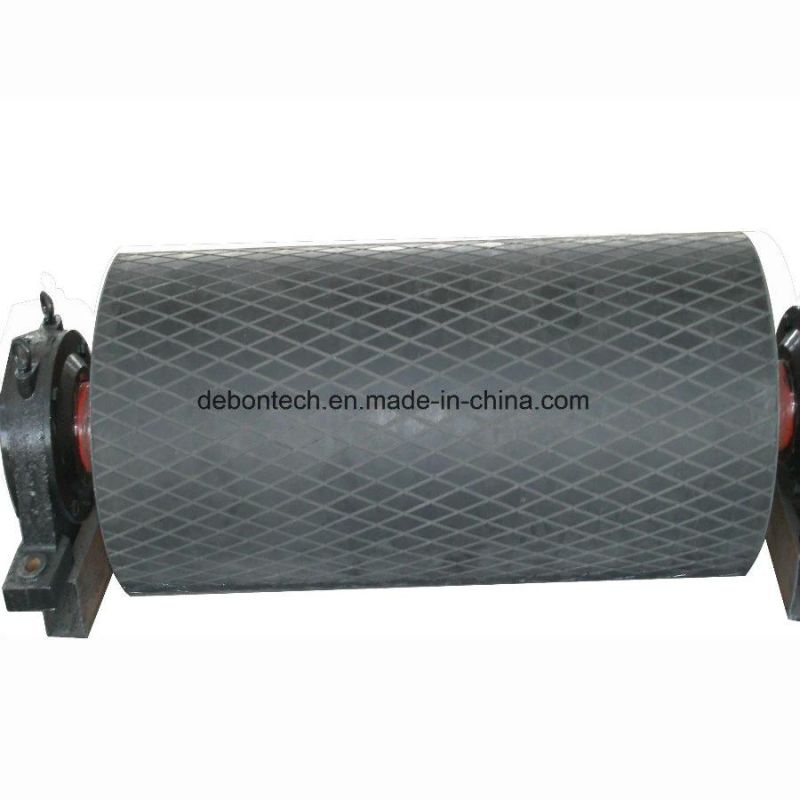

Pulley rubber ceramic lining, also called rubber pulley lagging can reduce slippage and extend service life of conveyor belt.

Features of rubber lining for pulley:
     1.Reduce conveyor belt slippage
     2.Extend conveyor belt and pulley life
     3.Available in Natural Rubber and FRAS approved rubber
     4.With cn layer



Technical Data:
     Material: NR ,SBR, etc.
     Hardness: 65 shore a or as request
     Abrasion loss: 100mm3
     Overall thickness:8mm,10mm,12mm,15mm,20mm,etc
     Length:10m, 20m, 30m, etc

Pulley lining rubber sheet in different dimensions and colors are all available.

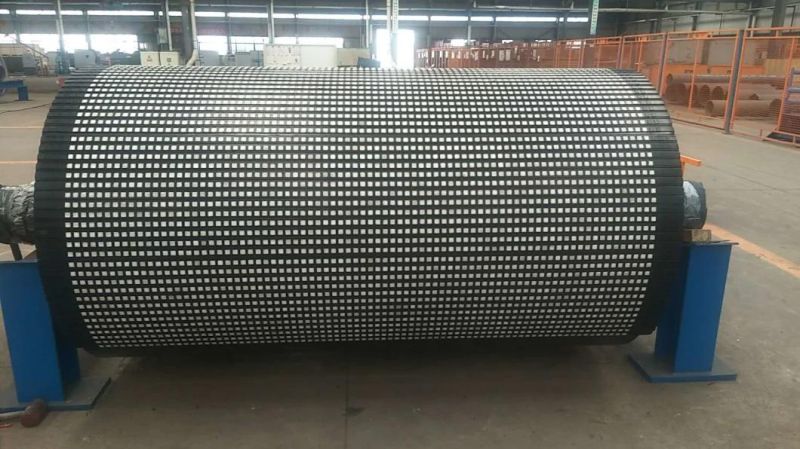

Ceramic Rubber Lining for Pulley:

Ceramic rubber lining for pulley is a important factor to improve conveyor belt performance.

Ceramic lining for pulley is designed and suited for conveyor pulleys, such as conveyor drive pulley, where slippage and wea problems make normal rubber lagging ineffective. The alumina ceramic tiles help in proper grip of the conveyor belt under wet, muddy or any other such arduous conditions.


Features of ceramic pulley lining:

1.Aluminum Oxide: 95% al2o3
2.Ceramic Hardness(Mohs) > 9t
3.Working temperature: ≤85 C
4.Rubber Hardness: 60±5 Shore A
5.Tensile strength:19 MPa
6.With cn bonding layer or as request.




Installation of ceramic pulley lining:
Ceramic pulley lining is suitable for pulleys performing in the most difficult conditions.
It can be installed through cold vulcanization process on site or at pulley manufacturer.



Company:

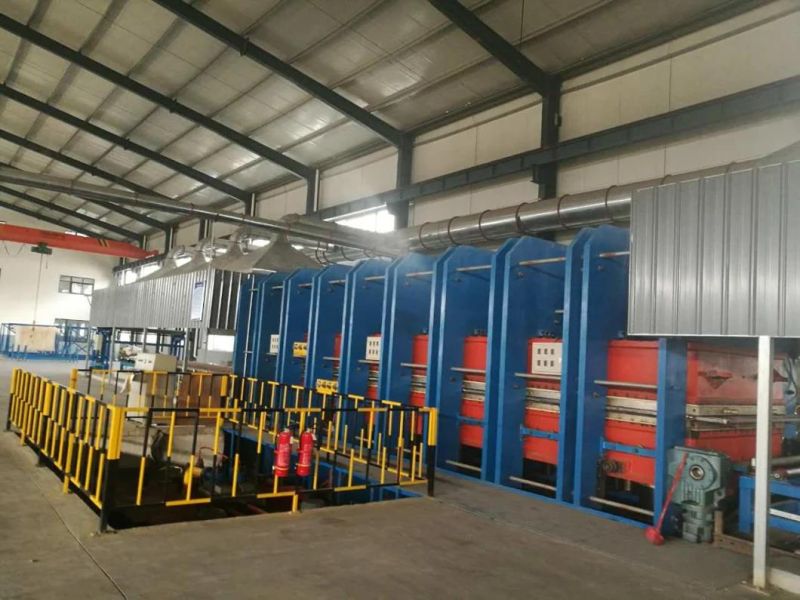

Jiaozuo Debon Technology CO., LTD. is a manufacturer specialized in designing and manufacturing rubber products, polyurethane products and conveyor accessories.

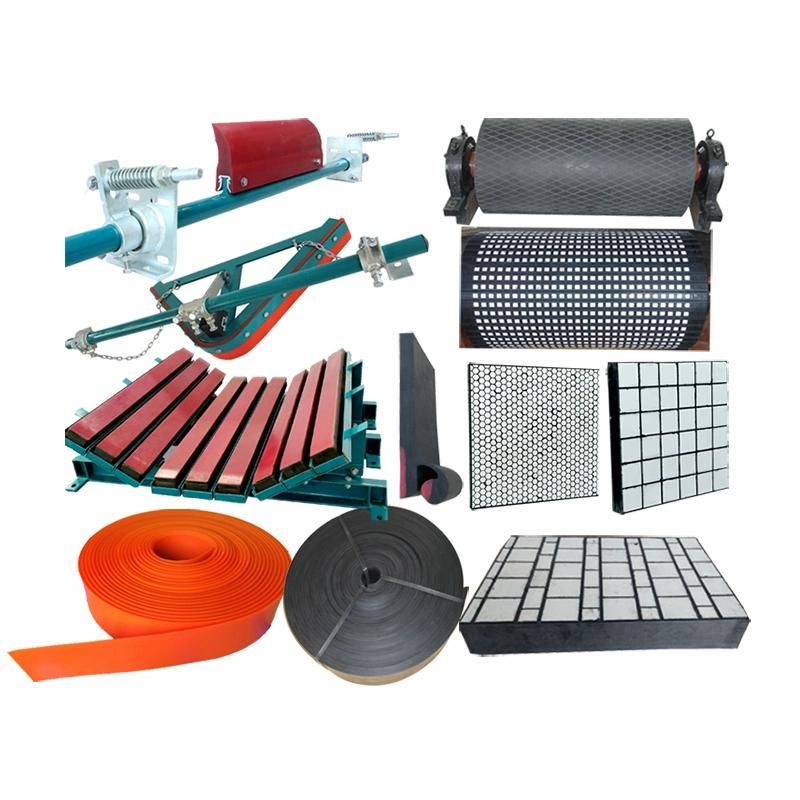

Main products include: various kinds of rubber sheets, rubber lagging, impact bar, custom rubber products, polyurethane sheets and custom polyurethane products, etc.

Debon is a manufacturer with 106 employees, including 35 engineers.  The company is certified to ISO 9001:2008 Quality Management System, and rubber lagging products were certified to "SAFETY CERTIFICATE OF APPROVAL FOR MINING PRODUCTS".

Quality Control:
To ensure high quality, strict quality control are implemented in all factors of production: raw material inspection, the whole production processes, finished products inspection, etc.


Export:
Products have been exported to Australia, USA, UK, France, Chile, Russia, etc., high quality has been approved.
