• Color：Black, Red, Brown or Tailor Made
• Transport Package：25kgs Per Carton, 500kgs Per Pallet
• Specification：Hardness: 50-90
• Trademark：Fudi
• Origin：China
• Production Capacity：800t,Year

Basic Info.

Color Black, Red, Brown or Tailor Made Transport Package 25kgs Per Carton, 500kgs Per Pallet Specification Hardness: 50-90 Trademark Fudi Origin China Production Capacity 800t/Year

Product Description

FFKM Perfluoroelastomer compounds
 (FFKM, Perfluoroelastomer, Kalrez)FFKM is perfluoroelastomeric compound containing an even higher amount of fluorine than FKM fluoroelastomer.

• Excellent resistance to high temperature as high as 320°C
• Excellent resistance to highly corrosive fluids. Better than general FKM.



• FD8100:

FD8100 exhibits very low particle generation and low weight loss in oxygen and fluorine-based plasmas. Also it has good mechanical properties and good properties for both static and dynamic sealing applications.

Color: Ivory
Hardness Shore A: 80
Tensile strength: 16.2 Mpa
Elongation: 158%
Modulus at 100% Elongation: 7.4 Mpa
Compression set 70 hrs @200°C: 37%
Temperature range: -6 to 250°C


• FD8200

FD8200 is specially for select semiconductor plasma and gas deposition applications. This unfilled compound offers very low particle generation in oxygen and fluorine-based plasmas than mineral-filled compounds.
FD8200 also have excellent resistance to dry process chemistry, has good mechanical strength properties and is well suited for both static and low stress/ low sealing force applications.
FD8200 is substitution of Kalrez-8002

Color: dark brown
Hardness: 65 Shore A
Tensile strength: 13.2 Mpa
Elongation: 240%
Modulus at 100% Elongation: 3.4 Mpa
Compression set 70 hrs @200°C: 21%
Temperature range: -6 to 270°C


• FD9001

FD9001 has low erosion and the lowest particle generation in harsh plasma environments.
FD9001 has excellent thermal stability, very low out gassing as well as excellent elastic sealing application.

Color: amber translucent
Hardness: 75 Shore A
Tensile strength: 13.2 Mpa
Elongation: 120%
Modulus at 100% Elongation: 7.4 Mpa
Compression set 70 hrs @200°C: 28%
Temperature range: -6 to 300°C





RFQ
____________________________________________________

1. Are you trading company or factory?

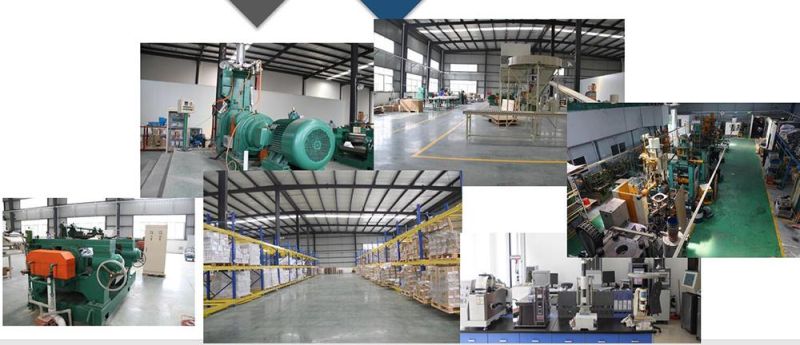

We are factory with 20 years' experience. Welcome to visit our factory in Chengdu city, Sichuan, China.

2. What shipping methods can I choose?

For more than 100kgs, you can choose by sea or by train.
For small quantity, courier like TNT, Fedex, SF express is cheaper. Or you can choose by air in urgent case.

3. How can I contact you?

You can contact me via Email, Whatsapp, Wechat, Tellephone, Facebook.

4. Can I get a sample?

Sure. 1kg free sample is provided. You just need to pay for the postage.

5. How I can get a quotation?

Tell me your detailed requirement like hardness, color, quantity, application, any special physical property requirements. So I can give you a better quotation.

6. What is your lead time?

Our advanced production lines and experienced workers gurantee that we can delivery orders within 5 days.

7. What if I have problem during using your product?

You can find me 24 hours by email, tellephone, Wechat, Whatsapp.
