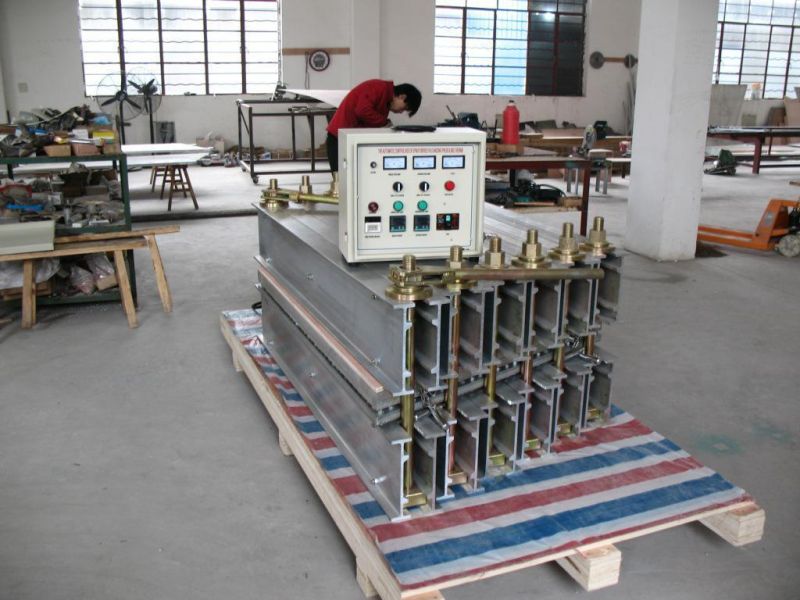

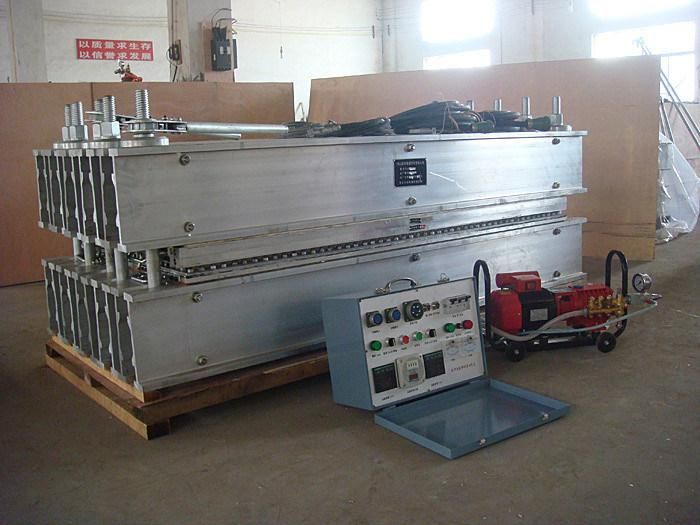

Conveyor Belt Vulcanising Press Machine, Belt Hot Splicing Machine
Qingdao Evertech Industry Co., Ltd.- Type：Conveyor Belt
- Feature：Heat-resistant, Cold-resistant
- Usage：Waterproof Tape, Electrical Insulating Tape, Coating with Adhesive Tape
- Performance：Strong Rubber Conveyor Belt
- Delivery Time：Within 30 Days After Payment
- Transport Package：Plywood Case
Base Info
- Model NO.：LD
- Specification：conveyor belt vulcanizing
- Trademark：Evertech
- Origin：Shandong, China (Mainland)
- HS Code：84778000
- Production Capacity：10 Unit,Units Per Month
Description
2200
2200*830
830*2478
30
2992*830*980
1720
2200*1000
1000*2478
36.2
3054*1000*980
2030
Specifications
vulcanizing press machine
1)Product Type:conveyor belt
2)Related voltage: 380 v(660v). 50 Hz
3)the electric power output:35KW
a) It's most important for the conveyor belt which is used for heavy-duty and long distance material handing.
b) The special equipment for conveyor belt repairing and jointing.
c)Advantages
The quality of the jointing directly effect the working life & working efficiency.It's most important for the conveyor belt which is used for heavy-duty and long distance material handing
d) Fast heating, steady heating temperature
e)Specification
LD technical performance
Suitable for conveyor width:680mm-2400mm
heating plate length: 600mm,900mm and others
Cementing angle:0°:16.7°(according the client's requirement)
Curing working surface temperature≤165°C
Warming time: less than 30 min
Pressurization method: Aluminum beams+ Pressure mold box
Curing pressure 10Bar-12Bar
Cooling way: Fast water cooling
Application of conveyor belt thickness≤40mm
Related voltage: 380v (660V)(AC 3PH 50Hz)
