• Model NO.：KHD
• Working Media：Oil, Gas, Water, Dust etc
• Color and Dimension：Accept Customized Products
• Transport Package：Carton
• Specification：40-13000mm
• Trademark：morgan
• Origin：China
• HS Code：4016931000
• Production Capacity：100000PCS,Month

Temperature-30°C / +120°C depending on the material selectedPressure50 MpaSpeed1.5 m/sMediasMineral hydraulic oils
Glycol/oil emulsions
Water/oil

Materials
Elastomer
NBR 80 Shore A
FKM 80 Shore A
Friction ring
Bronze-filled PTFE
Back-up rings
Polyoxymethylene (POM)
Applications
Mobile machinery
Hydraulic cylinders

Advantages
Low friction coefficient; no stick-slip effect
Possible increase in extrusion gaps
Excellent extrusion resistance even during pressure peaks
Excellent abrasion resistance
Assembled by deformation

Extrusion gaps

Pressure
MPaRadial extrusion gap
F/210 MPa0.5025 MPa0.5035 MPa0.4040 MPa0.3050 MPa0.30

Surface roughness

RoughnessDynamic surface areaStatic surface areaGroove flanksRa0.05 - 0.2 µm≤ 1.6 µm≤ 3.2 µmRz0.4 - 1.6 µm≤ 6.3 µm≤ 10.0 µmRmax0.63 - 2.5 µm≤ 10.0 µm≤ 16.0 µm

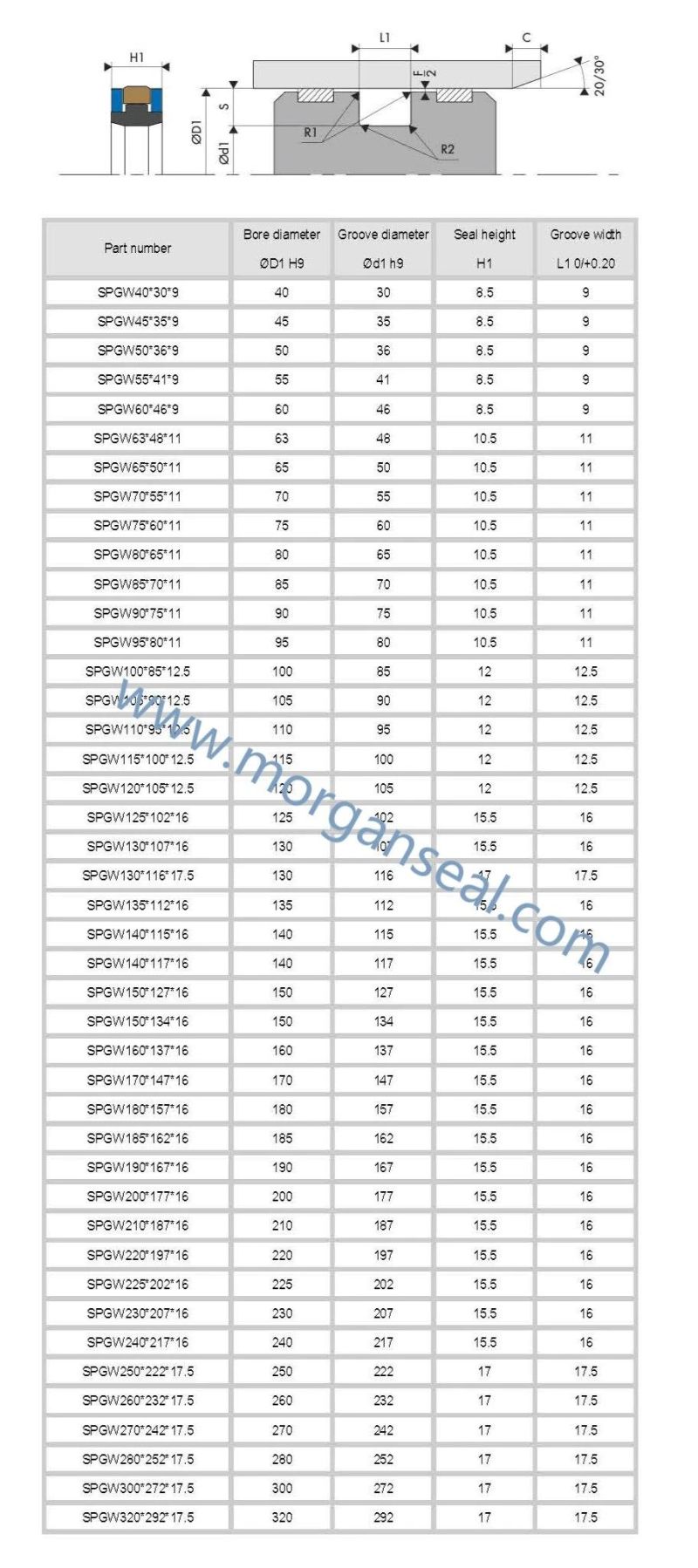

Chamfers and radius

Radial section
SRadius
R1Radius
R2Chamfer
C5.000.200.702.507.500.201.205.0011.500.201.808.0014.000.202.5010.00

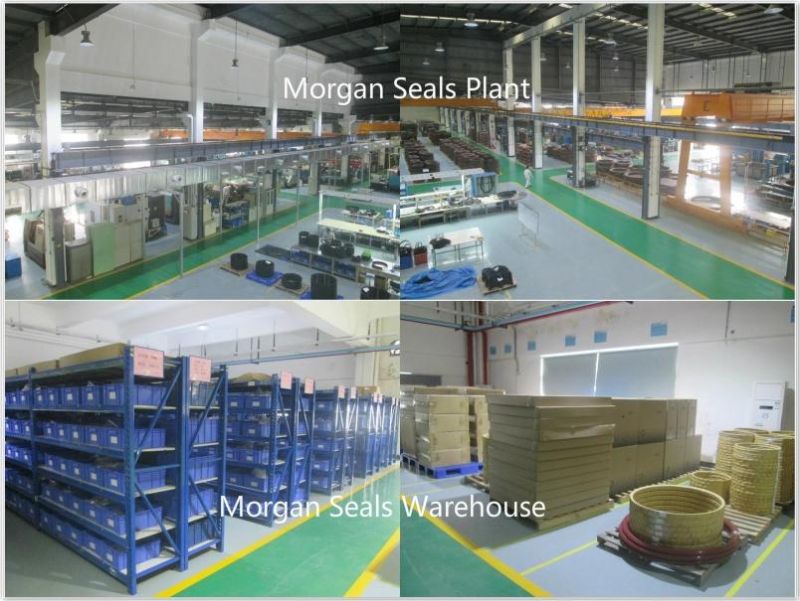

Morgan Seals has the biggest vulcanizing machine(4000T) and different kinds of seal moulds. So for the non standard hydraulic seals, please do not hesitate to contact with us. The following is the the picture of Morgan production line and warehouse:

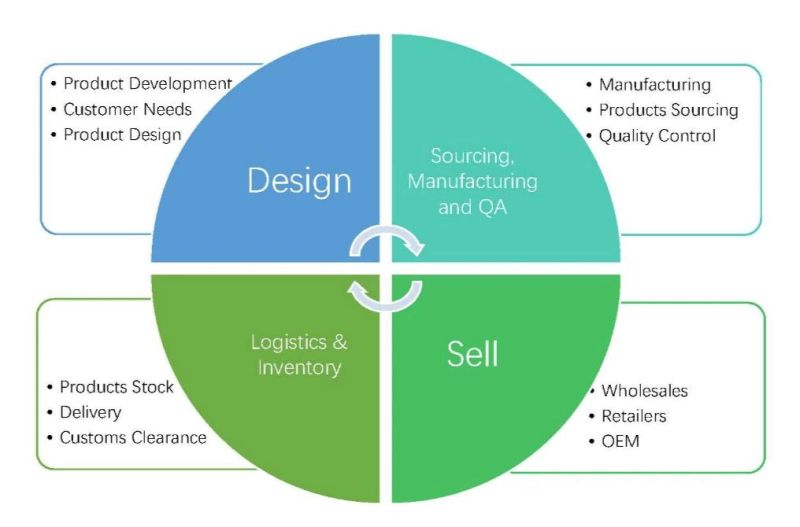

Our services:
Guangzhou Morgan Seals Co., Ltd the expert in sealing solution field who combines the rich seals research and production experience of her parent firm with the advanced technology and administration of Morgan, Worcester. Morgan Seals Research and Development ability is based on her parent firm who has won awards as scientific research achievements for more than 1000 projects and over 200 of them won scientific and technological progress prizes of municipal, provincial, ministerial and national levels. At the same time, it also has one National Certified Laboratory, one National Engineering Research Centers and three Industry Level Inspection Centers.
