Rubber Wire Braided Fuel Dispenser Hose / Gasoline Pump Hoses
Hangzhou Paishun Rubber and Plastic Co., Ltd.- Material：NBR
- Capability：Rubber Oil Hose
- Color：Black, Red, Blue, Green.
- Tube：NBR
- Reinforcement：Single High-Strength Wire
- Cover：NBR
Base Info
- Model NO.：Pump Hose
- Temperature：-40c to +100c
- Application：for Fuel Dispensing Pump Applications, Including G
- Standard Length：20m, 50m (Random Length)
- Manufacturer：Hangzhou Paishun
- Suface：Smooth Suface
- W.P：30bar
- B.P：120bar
- Product Name：Rubber Wire Braided Fuel Dispenser Hose , Gasoline
- Keyword：Gasoline Pumps Hose
- MOQ：500 M for Black Hose
- Package：Well Packed by Braided Straps
- Manufaturer：Paishun
- Transport Package：Packed by Woven Bag, Big Size Is 20mtr,Roll.
- Specification：CE CERTIFICATE
- Trademark：PASSION
- Origin：Zhejiang, China (Mainland)
- HS Code：40092100
- Production Capacity：150000m,Month
Description
Technical information:
Rubber Content of "Paishun's Hose" - The NBR Content of Hose Inner Tube is 42% and 40% in Hose Outer Tube.
The High NBR Material Content makes the Hose has excellent "permeability", so the Hose is able to not " bulge" even being immersed in High grade gasoline after 72 hours.
The Electrical Conductivity of Hose Assembly - When our workers do the assembling, we'll make sure that the Connectors to be well connected to Hose Wire, to make sure the Hose has "stable conducting electrostatic property", we test the " Hose Electrical Conductivity" with Ammeter.
Pressure Test - Every batch Hose will be tested under the Test Pressure (10times higher than the Hose's W.P.) and keeps at least 3 minutes, this is to avoid any invisible holes appear on Hose.
The Wire we use - The tensile strength of Single Wire we use is 2750 Newton high strength wire, the wire diameter is 0.295mm.

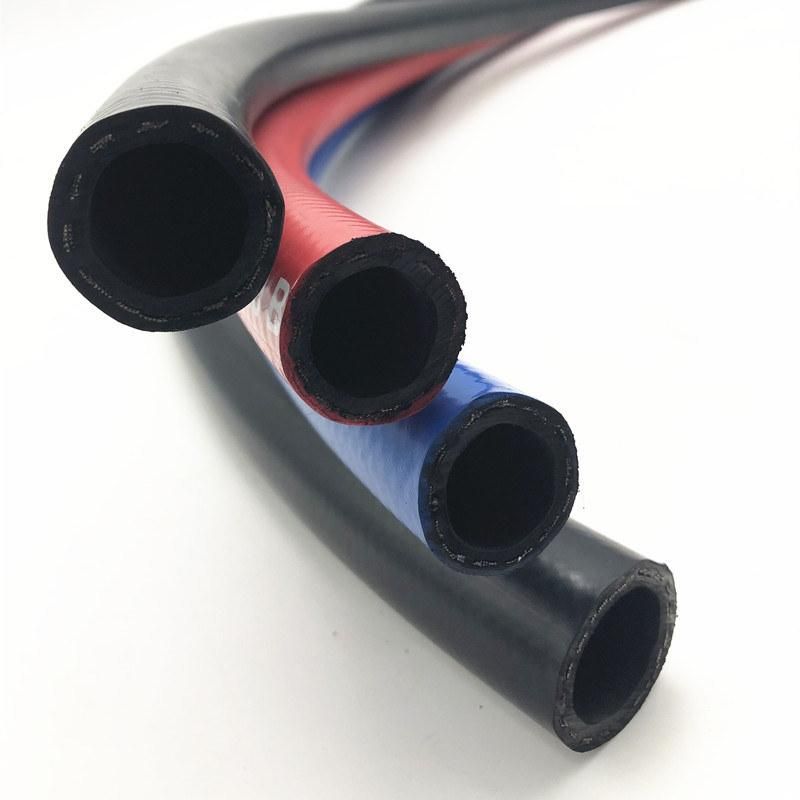

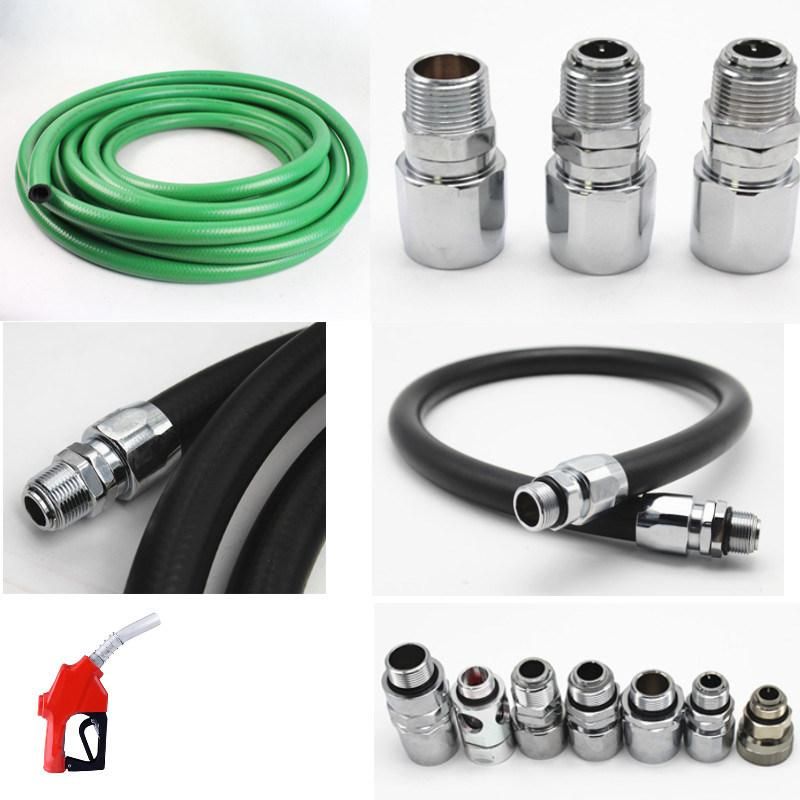

Pictures of Hose & Accessories:
PAISHUN Hose Advantages:
Our gasoline hose can transfer #92 Unleaded gasoline, #95 Unleaded gasoline,
diesel.
Below are some advantages of PAISHUN's gasoline hose:
1. the hose is with excellent " permeability resistance ", after being immeraged into gasoline for 72 hours, the expansion rate will not beyond 2%. So hose can prefectly transfer gasoline without leakage.
- The NBR rubber content covers as high as 44% in both inner tube and outer tube.
The high rubber content makes the hose with excellent permeability resistance.
(NBR material may only cover 37% in the hoses from other manufacturers).
2. The hose is very flexible and light-weight, so it is easy to handle during application.
- The high NBR rubber content and our unique innovated production technique makes the hose flexible and light-weight.
3. The hose is with excellent aging resistance and ozone resistance, it extends hose usage life.
- The innovated PVC/NBR blend rubber material makes the hose resist to aging
and ozone prefectly.
4. We make sure every piece of hose assembly is resist to static, so it will be safe during application in service station (for hose assembly).
- How to make hose assembly resist to Static? -
1. When we are assembling the hose, we make sure steel wire layer connects well with fittings.
2. We use Ammeter to test every piece of hose assembly during production.
5. The color will not fade (for color hose).
- After testing for many times, we concluded the best pigment ratio.
6. The hose is with smooth and nice appearance.
