Vulcanized Ceramic Coating Lagged Pulley Rubber Lagging Sheet Roller for Conveyor Pulley Lagging
JIAOZUO DEBON TECHNOLOGY CO., LTD.- Material：Alumina Ceramic, Natural Rubber, Cn Layer
- Usage：Eliminate Belt Slippage, Increase Pulley Life
- Feature：Wear-resistant, Impact-resistant, Tear Resistant
- Raw Materials：Alumina Ceramic, Natural Rubber, Cn Layer
- Medium：None
- Performance：Wear Resistant, Impact Resistant, Tear Resistant
Base Info
- Model NO.：DB-TC
- Color：Black, White
- Alumina Oxide：>92%
- Ceramic Hardness(Mohs)：>9t
- Working Temperature：<85 Degree
- Rubber Hardness：65+,-5 Shore a
- Tensile Strength：24 MPa
- Cn Bonding Layer Peel Strength：>12kn,M
- Transport Package：Plywood Case, Pallet
- Specification：15*500mm, 12*200mm
- Trademark：DEBON
- Origin：Henan, China
- Production Capacity：500 PCS,Week
Description
Basic Info.
Model NO. DB-TC Color Black, White Alumina Oxide >92% Ceramic Hardness(Mohs) >9t Working Temperature <85 Degree Rubber Hardness 65+/-5 Shore a Tensile Strength 24 MPa Cn Bonding Layer Peel Strength >12kn/M Transport Package Plywood Case, Pallet Specification 15*500mm, 12*200mm Trademark DEBON Origin Henan, China Production Capacity 500 PCS/WeekProduct Description

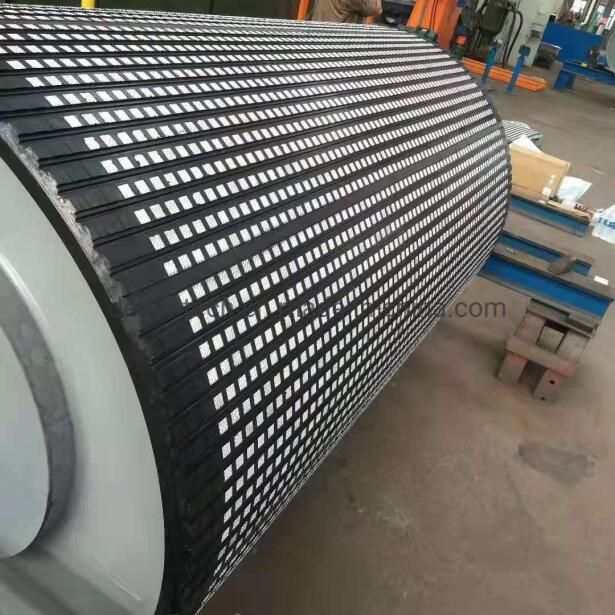

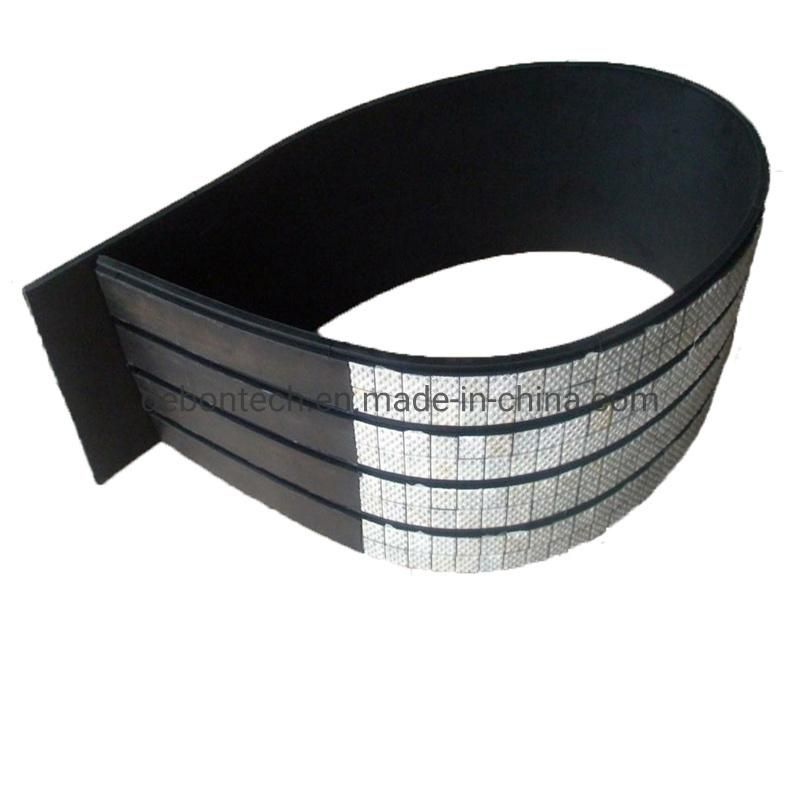

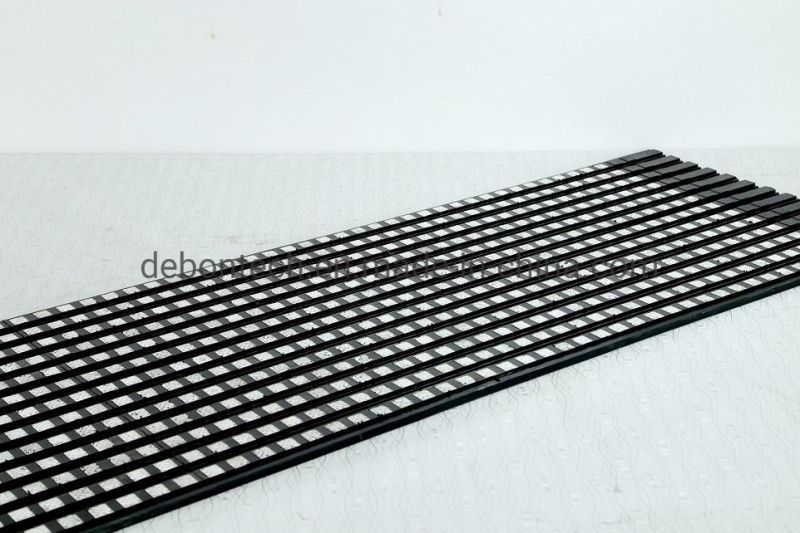

Conveyor Ceramic Pulley Lagging Sheet for Drive Drum RollerCeramic rubber lagging is specially suited for pulleys where slippage and excessive wear and tear problems make normal rubber lagging ineffective. The alumina ceramic tiles help in proper grip of the belt under wet, muddy or any other such arduous conditions.DB-TC-I ceramic pulley lagging:
Ceramic coverage: 80%
DB-TC-I size: 12mm thick * 200mm width
Length: 50mm~100mm longer than your pulley width
DB-TC-II ceramic pulley lagging:
Ceramic coverage: 39%
DB-TC-II Size: 15mm thick * 500mm width
Length: 50mm~100mm longer than your pulley width

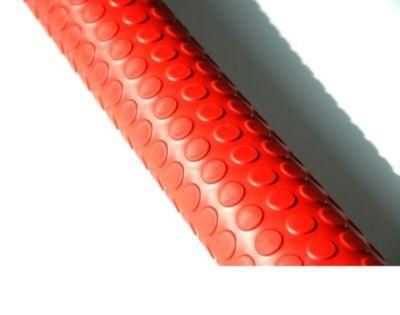

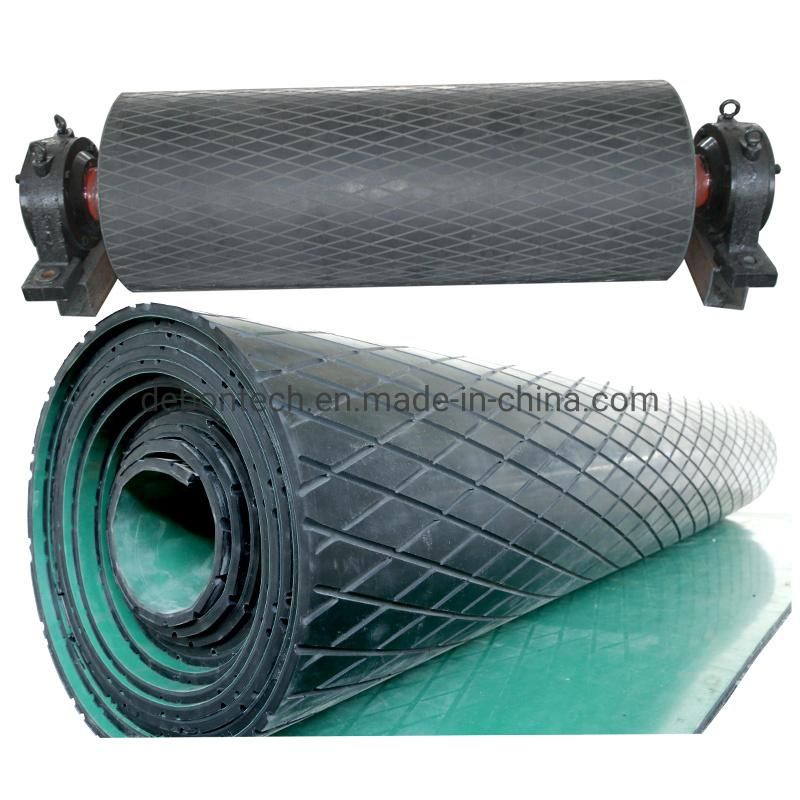

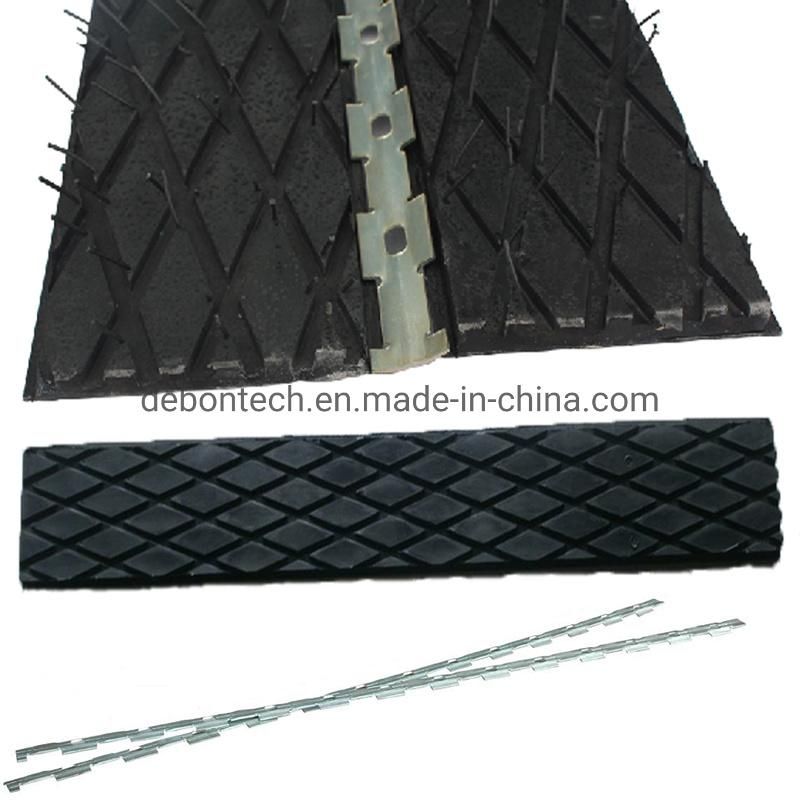

Other types of pulley lagging

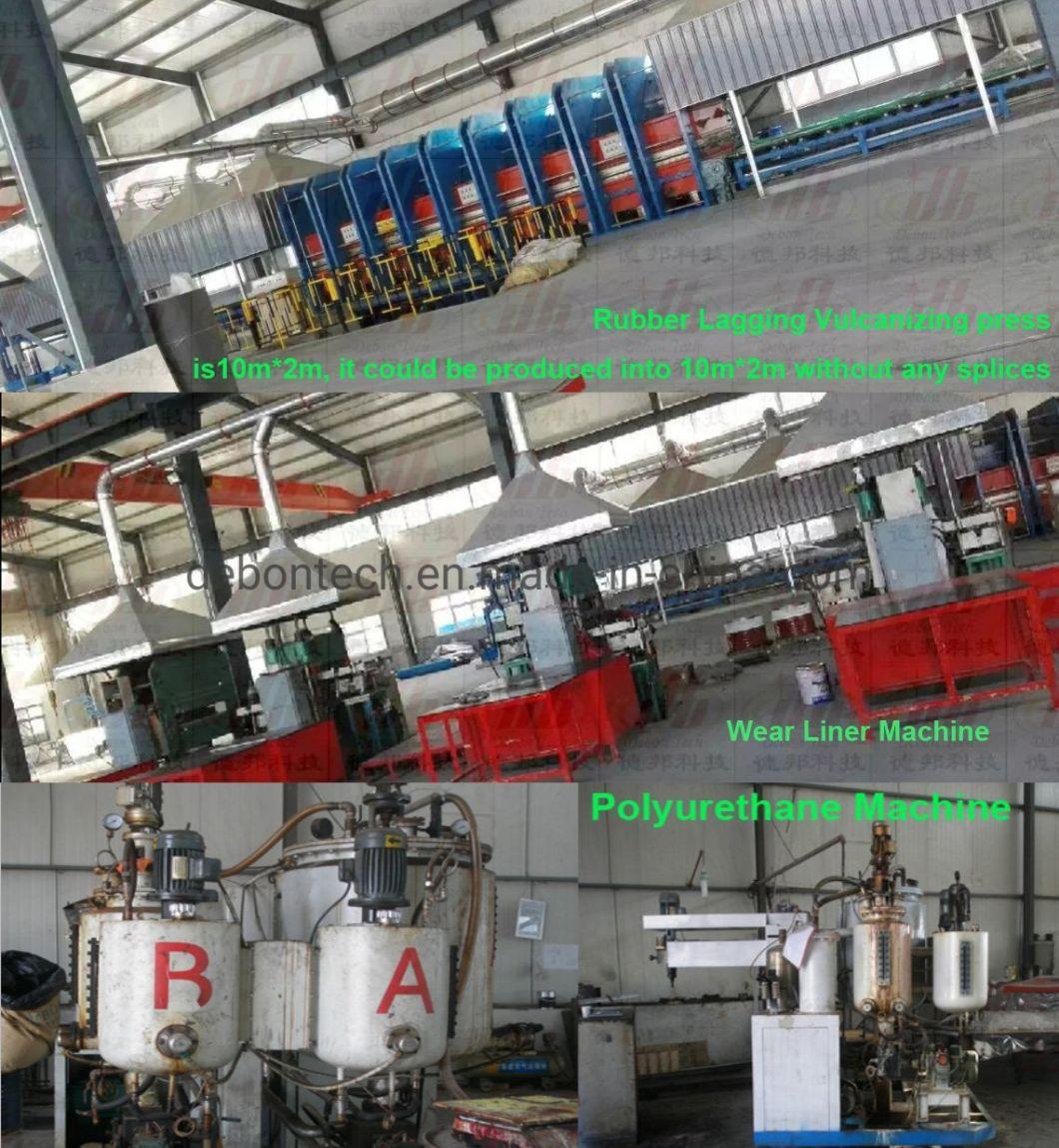

Factory
- Over 15 years experience of producing and developing, Debon Technology have become top 10 belt conveyor accessories factory in China.
- Certificate we had: ISO, SGS, Saftey Certificate of Approval for Mining Products, etc..
- 8-Year Exporter to more than 45 countries in the world.
Main Products
Conveyor Accessories:Belt cleaner, impact bed/impact bar, skirt board,pulley lagging,etc..
Wear Liner:Ceramic wear Liner, Rubber liner, PU liner, Composite liner, Liners with/without wear strips, etc..
Belt Repair:Steel Cord Stripper, rubber belt stripper, repair strips, diamond patches, etc..
Custom Rubber and Polyurethane:Polyurethane Blade, PU rods, PU wheels, PU Sheet, Rubber sheet, Rubber seal parts, etc..Contact me for more details
