• Color：Gray Sheet
• Structure：Two Color Three Rubber
• Type：Air or Water Filled
• Anchor Type：Single or Double
• External Form：Pillow, Spine
• Transport Package：Pallet
• Trademark：Sunny
• Origin：Shandong, China
• HS Code：4016999090
• Production Capacity：30000 Pieces Per Year

Basic Info.

Color Gray Sheet Structure Two Color Three Rubber Type Air or Water Filled Anchor Type Single or Double External Form Pillow, Spine Transport Package Pallet Trademark Sunny Origin Shandong, China HS Code 4016999090 Production Capacity 30000 Pieces Per Year

Product Description

A Rubber Dam is a highly efficient water controlling structure with a permanent structure comprising a sheet of rubber-coated fabric (rubber body) which is fixed to a reinforced concrete foundation using clamp plates and anchor bolts. The rubber dam is inflated by pumping air or water inside the rubber body until the design height or pressure is reached. It is deflated by allowing the air or water inside the rubber body to escape.

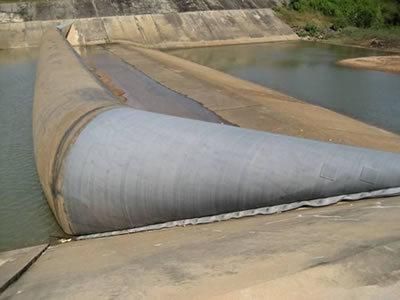

Air inflatable Rubber dam

Specification

• Material structure: one cloth two rubber, two clothes three rubber, three clothes four rubber, etc.
• Color: blue, black, red, gray, purple, etc.
• Medium in dam: air.
• According to installation method:
  • Single anchor.
  • Double anchor (pillow-like dam and inclined dam).
• According to anchored method:
  • Bolt anchored.
  • Wedge anchored.

Physical and mechanical properties of air inflatable rubber dam


H(M)	pressure rate (in/out)	radial strength kN/m	model	thickness(mm)	safety factor
1.0	1.00	5.00	JBD1.0-080-3	10	45.00
1.5	1.00	11.25	JBD1.5-100-3	10	20.00
2.0	1.00	20.00	JBD2.0-120-3	10	13.50
2.5	1.00	31.25	JBD2.5-160-3	10	11.52
3.0	0.90	40.50	JBD3.0-200-3	12	11.11
3.5	0.80	49.00	JBD3.5-220-3	12	10.10

The whole dam air bag strength

The whole dam airbag, also called none overlap joints dam airbag. It produce according to the whole manufacturing technology, which realized by the super large curing press and the patented technology of folding and curing the sulfide. The whole dam bag has no second time splicing and vulcanization process, and the tensile strength of all directions can be consistent, so there is no obvious weak part, which will improve the safety greatly. The service life is fully guaranteed.
1. No weak parts in overlapping, obviously improved in performance, safety and reliability.
2. Flat dam airbag, without "knots" and "bump" phenomenon, more beautiful.
3. The production efficiency is greatly improved, and the delivery is short.
4. Reduce the cost, and increase the investment and comprehensive social benefits.

Features:

• Air has huge compressibility, so air inflatable rubber dam will appear recess when crest overflow, and flow is concentrated, has strong scour strength for downstream river.
• Medium in air inflatable rubber dam is available easily, does not freeze in winter.
• Air inflatable rubber dam is requested with high tightness.
• Air inflatable rubber dam can be inflated or deflated quickly by air blower, and equipment can control the height of rubber dam casually.
• It has simple structure, perfect performance, completely collapse capability.
• It can resistant to sharp objects, pieces of ice, stone and vibrations caused by river overflowing.
• It can be easily installed to potential differential settlement of the foundation.
• Maximum overflow can higher 20% than rubber dam.
• The outer rubber layer has excellent weathering, aging, abrasion, sunlight, UV, heat and ozone resistance.
• The middle rubber layer is used for protection of canvas and for connection of two or more canvas with rubber layers.
• The inner layer is used for protection of canvas and has excellent watertight and airtight.
• Air inflatable rubber dam can be installed on any channel cross section shape, and can seal well, without leakage.
• Investment of air inflatable rubber dam is lower than water inflatable rubber dam.
• It has short construction time, installation only need 3 to 15 days.
• The service life span of air inflatable rubber dam is up to 15 years, and it is maintenance free, does not have moving parts and painting.
