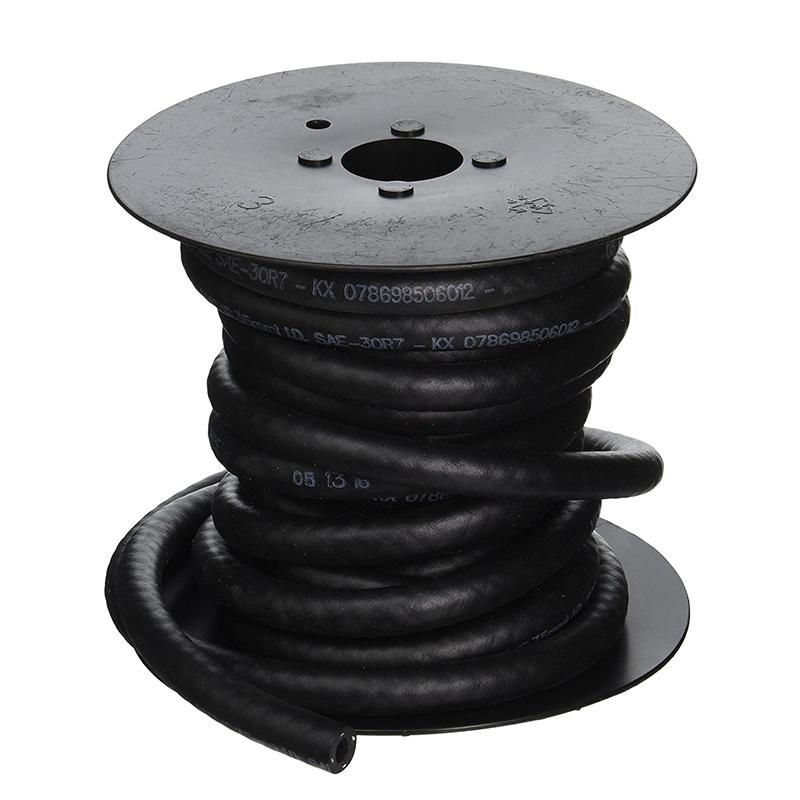

Yute 3/8 Inch 9.5mm Fuel Hose for Diesel Injection
Ningbo Shijun Auto Parts Technology Co., Ltd.- Material：Nitrile Rubber
- Capability：Oil Resistant
- Color：Black
- Product Name：Fuel Hose
- Warranty：2 Years
- Applications：for Automotive Fuel System
Base Info
- Model NO.：3,8 inch
- Working Pressure：300 Psi
- Burst Pressure：1200 Psi
- Temperature Range：-40 - +125 Degree
- Standard：SAE J30r7
- Size：1,8 -1 Inch
- Service：Provide OEM Service
- MOQ：Accept Small Order
- Transport Package：Carton
- Specification：3,8 inch
- Trademark：YUTE
- Origin：Zhejiang
- HS Code：4009310000
- Production Capacity：30000 Meters,Day
Description
B.Pinch mm Tolerance
(mm) inch mm Tolerance
(mm) Bar PSI Bar PSI 1 1/8 3.2 ±0.3 23/64 9 ±0.3 20 300 80 1200 2 5/32 4 ±0.3 25/64 10 ±0.3 20 300 80 1200 3 3/16 4.8 ±0.3 7/16 11 ±0.3 20 300 80 1200 4 1/4 6.3 ±0.3 1/2 12.7 ±0.4 20 300 80 1200 5 5/16 7.9 ±0.4 35/64 14 ±0.5 20 300 80 1200 6 3/8 9.5 ±0.4 5/8 16 ±0.5 20 300 80 1200 7 15/32 12 ±0.4 3/4 19 ±0.5 20 300 80 1200 8 1/2 12.7 ±0.5 25/32 20 ±0.6 20 300 80 1200 9 5/8 16 ±0.5 61/64 24 ±0.6 10 150 40 600 10 3/4 19 ±0.6 1-9/64 28.8 ±0.8 10 150 40 600 11 1 25.4 ±0.8 1-3/8 35 ±1 10 150 40 600

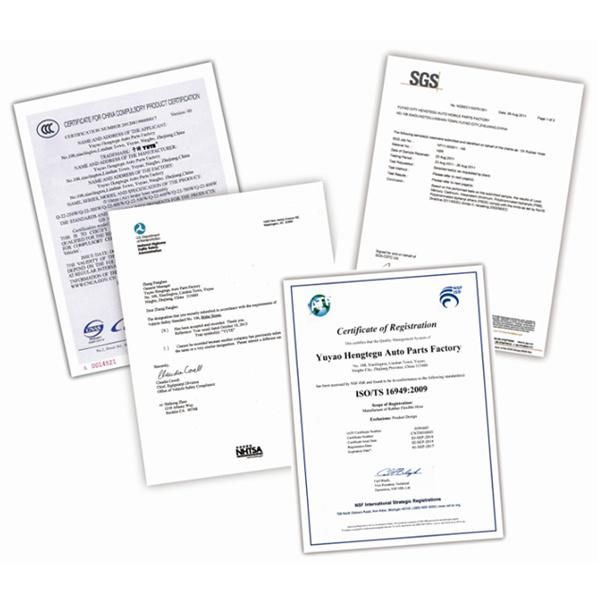

Certificate

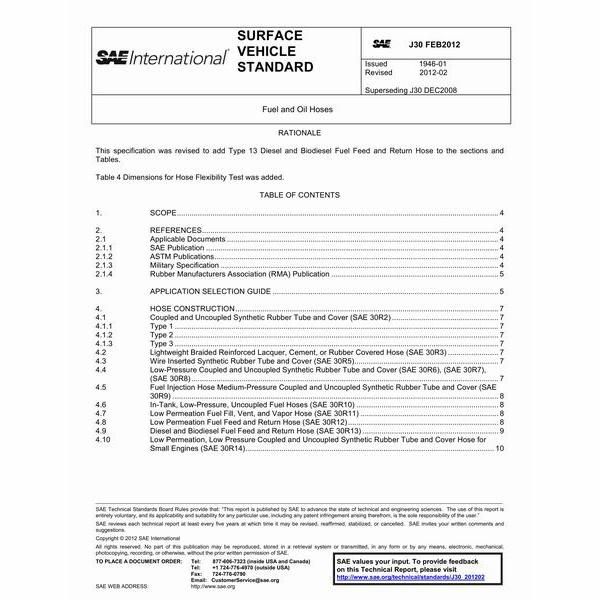

SAE J30R7
(mm)
(mm)
Certificate
SAE J30R7
