• Model NO.：Hydraulic Rubber Hose R1 R2
• Type：R1. R2. R3. R4. R5. R6. R12. R17 etc
• Outer Cover：Neoprene Rubber
• Reinforcement：1 ~ 6 Layers Steel Wire
• Advantage：Fire-Resistance, High Pressure
• Application：Oil, Water and Other Liquid Deliver
• Connector：NPT, Bsp Carbon , Stainless Steel Fitting
• Length：50, 100, 200 M,Roll
• Transport Package：by Transparent Plastic Film and Woven Belt.
• Specification：CE, ROSH, SGS
• Trademark：HIGH - QUA , OEM , 2SN Hydraulic Hose
• Origin：Zhejiang, China
• HS Code：40092100
• Production Capacity：100000 M Per Month

Basic Info.

Model NO. Hydraulic Rubber Hose R1 R2 Type R1. R2. R3. R4. R5. R6. R12. R17 etc Outer Cover Neoprene Rubber Reinforcement 1 ~ 6 Layers Steel Wire Advantage Fire-Resistance, High Pressure Application Oil, Water and Other Liquid Deliver Connector NPT, Bsp Carbon / Stainless Steel Fitting Length 50, 100, 200 M/Roll Transport Package by Transparent Plastic Film and Woven Belt. Specification CE, ROSH, SGS Trademark HIGH - QUA / OEM / 2SN Hydraulic Hose Origin Zhejiang, China HS Code 40092100 Production Capacity 100000 M Per Month

Product Description

DIN/En853 High Pressure Rubber Hydraulic Hose R1 R2
 Product Features
1. Application: Medium pressure hydraulic applications including mobile, machine tool and agricultural applications, using petroleum or water-based hydraulic fluids.
2. Process feature: Refrigeration technique
3. Inner tube: Nitrile
4. Reinforcement: One or Two braids of high-tensile steel wire
5. Cover compound: Neoprene
6. Temperature range: -40°F 212°F; -40ºC~121ºC
7. Color available: Black, grey, blue, yellow, red, etc
8. Surface: Smooth and cloth

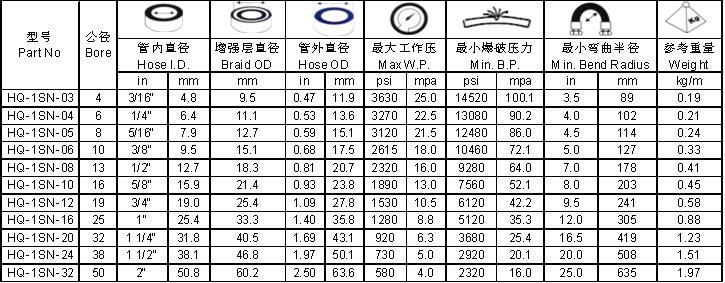

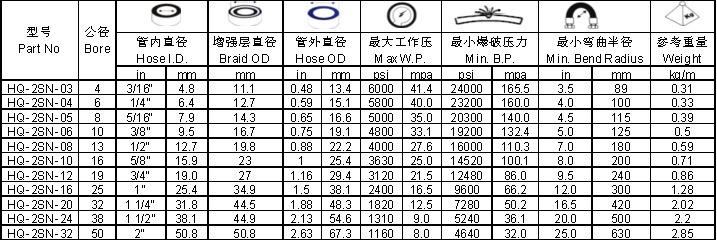

Specifications

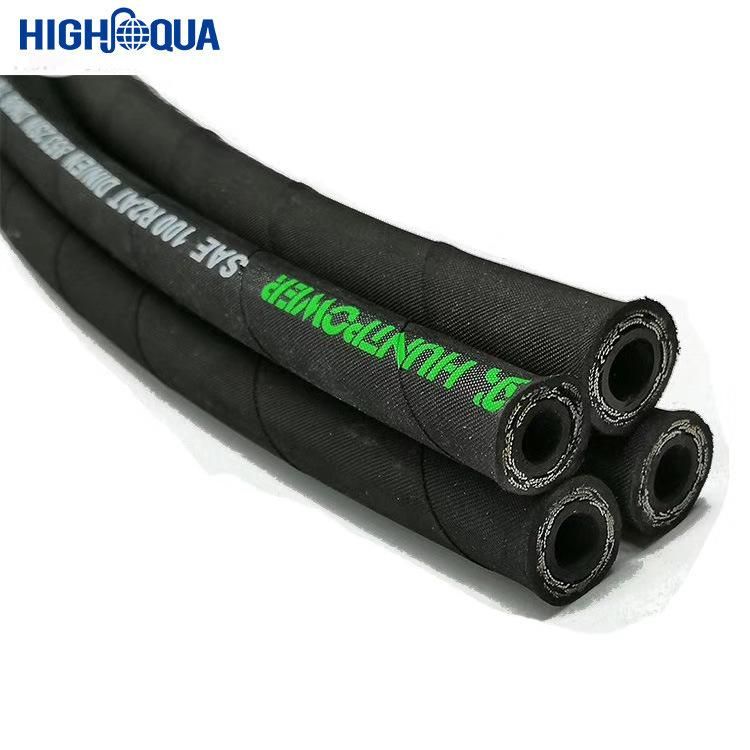

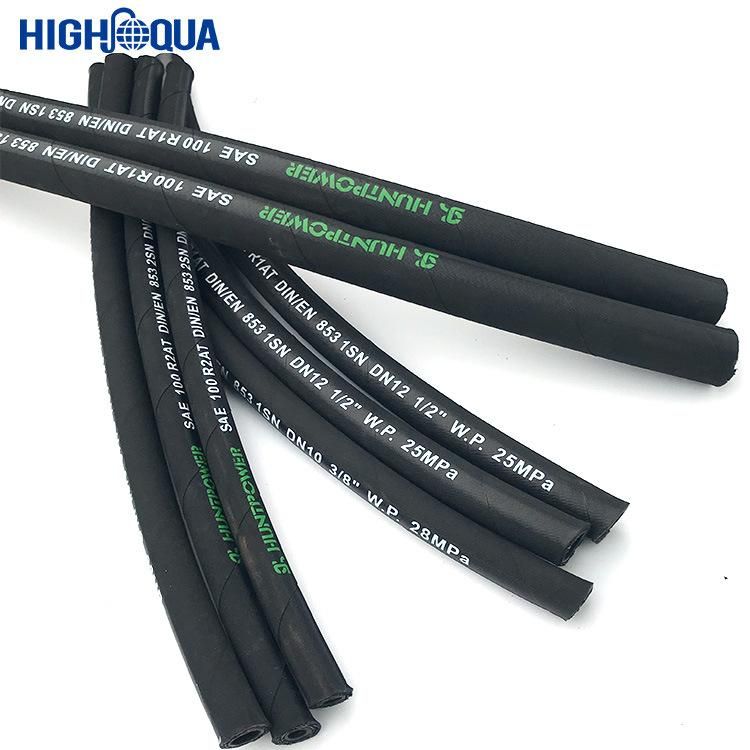

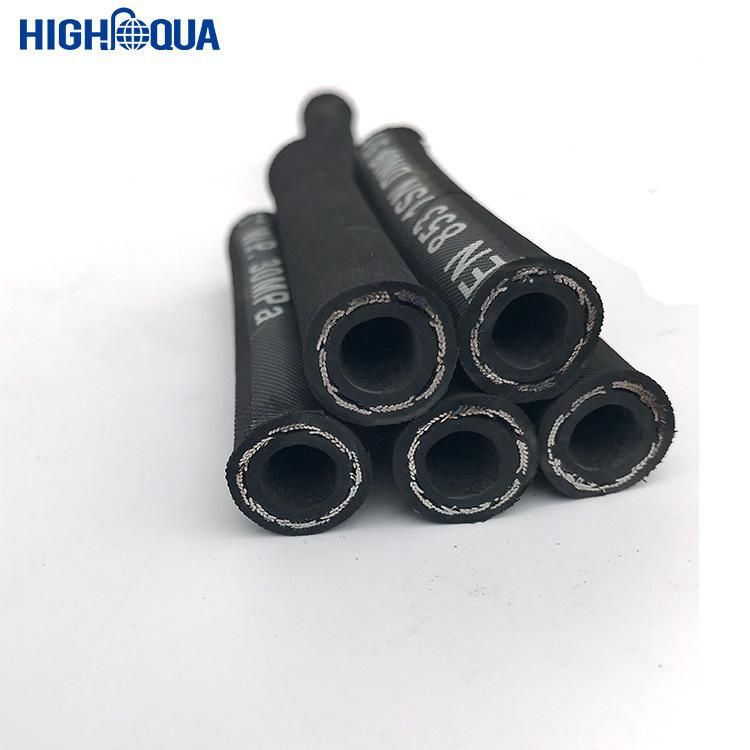

Product Show of hydraulic rubber hose











Quality Assurance:
Each production process would be controlled strictly. The material as export standard.
Packaging&Shipping
Packaging Details: By transparent plastic film and woven belt  or your request.
Delivery Time: We are responsible for shpping goods to delivery port on time.

 Exhibition show




If you have any other questions, please do not hesitate to contact us!
