3/4" Flexible Single Wire Braided Low Pressure Gasoline Dispensing Hose
Hangzhou Paishun Rubber and Plastic Co., Ltd.- Material：NBR
- Capability：Rubber Oil Hose
- Color：Black, Red, Blue, Green.
- Tube：NBR
- Reinforcement：Single High-Strength Wire
- Cover：NBR,PVC Blend
Base Info
- Model NO.：Gasoline Dispensing Hose
- Temperature：-40c to +70c
- Application：for Fuel Dispensing Pump Applications, Including G
- Standard Length：20m, 50m (Random Length)
- Size：3,4"
- Brand：Passion
- W.P：30 Bar
- B.P：120 Bar
- MOQ：500 Meters
- Lead Time：20 Days
- Shipment：by Sea
- Medium：Gasoline and Diesel
- Destination Port：Ningbo
- Transport Package：Packed by Poly Stripe.
- Specification：CE CERTIFICATE
- Trademark：PASSION
- Origin：Zhejiang, China (Mainland)
- HS Code：40092100
- Production Capacity：300000,Month
Description
Burst PressureLength Measurement Weight / inch mm mm bar psi bar psi m cbm/roll kg/m HPR-1 5/8'' 15.9 25.4 30 450 120 1740 50 0.07 0.57 HPR-2 3/4'' 19 28 30 450 120 1740 50 0.08 0.65 HPR-3 1'' 25 35.5 30 450 120 1740 50 0.124 0.82
Construction: Tube: High grade nitrile handles all types of gasoline, diesel and blended fuels.
Reinforcement: High tensile strength wire braid construction provides maximum coupling retention.
Cover: Resistant to all grades of gasoline, including oxygenated fuels containing MTBE and Ethanol.Temperature: -40ºC to +70ºC.
Color: Black, Blue, Red and Green etc
Application: For fuel dispensing pump applications, including gasoline, diesel, oxygenated fuels (up to a maximum of 15% oxygenated compounds), lubricating oil, and other mineral oil etc.

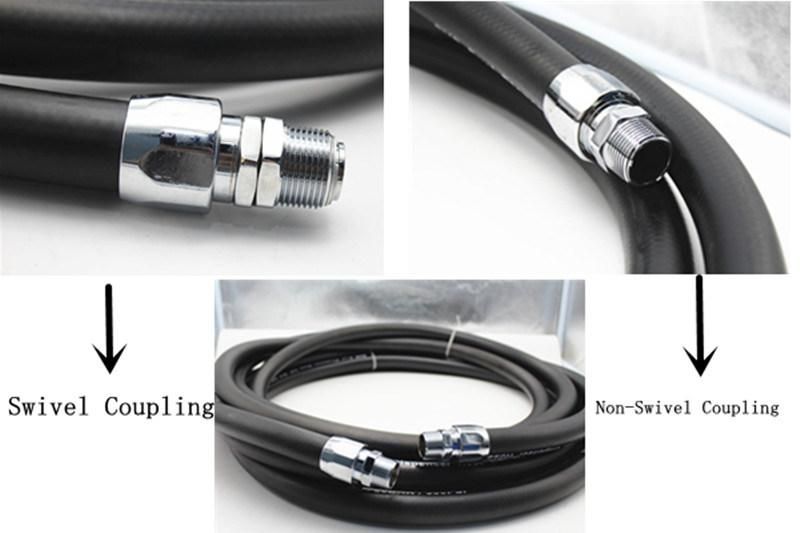

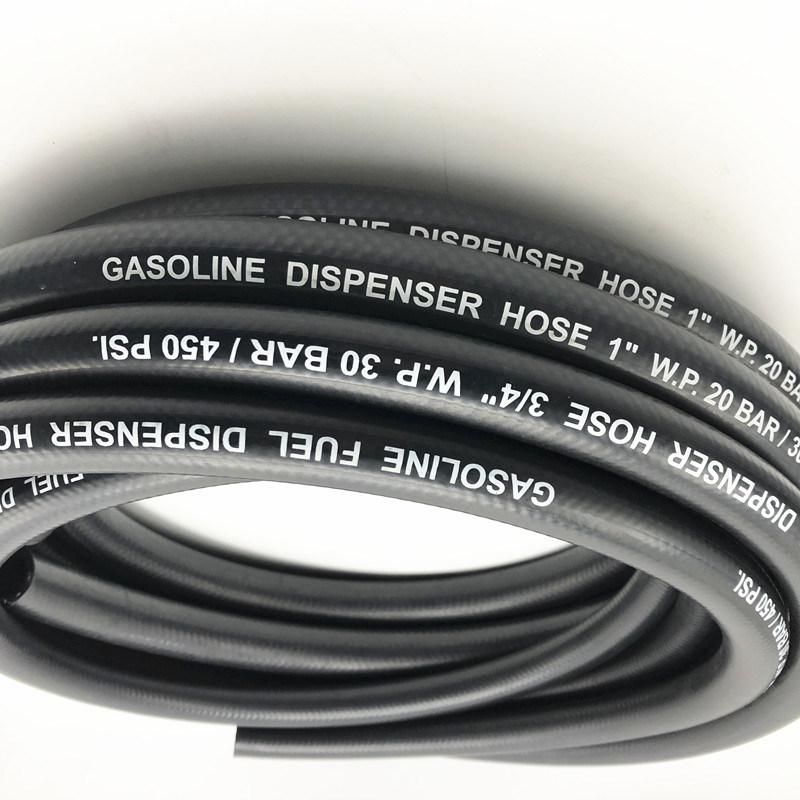

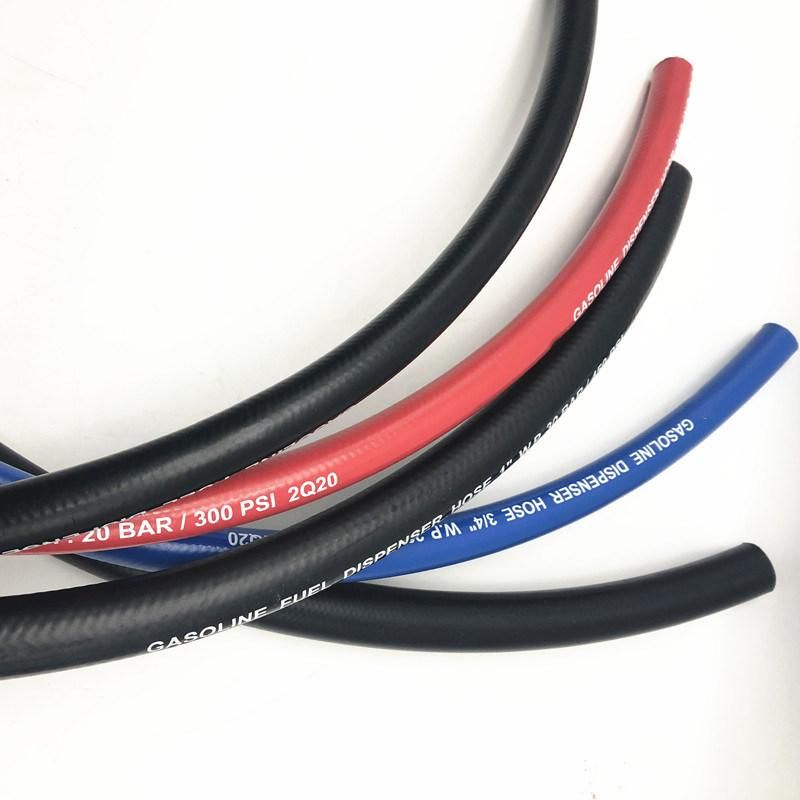

Standard length: 20m, 50m (Random Length). Hose Pictures:
Advantanges:
1). Wire Braid Reinforcement Makes the Hose Anti-Static and Provides Strength, Resistance to Crushing, Kinking;
2). Special Smooth Cover is Highly Resistant to Cuts, Abrasion, Sun & Weather and Will Not Scratch or Mark Vehicle Finish.
3). Very Fexible.
4). Light-Weighted.
5). Long usage time.
Paishun Team:
Exhibitions:
PASSION FOR HOSE, PASSION FOR YOU !
Construction: Tube: High grade nitrile handles all types of gasoline, diesel and blended fuels.
Reinforcement: High tensile strength wire braid construction provides maximum coupling retention.
Cover: Resistant to all grades of gasoline, including oxygenated fuels containing MTBE and Ethanol.Temperature: -40ºC to +70ºC.
Color: Black, Blue, Red and Green etc
Application: For fuel dispensing pump applications, including gasoline, diesel, oxygenated fuels (up to a maximum of 15% oxygenated compounds), lubricating oil, and other mineral oil etc.
Standard length: 20m, 50m (Random Length). Hose Pictures:
Advantanges:1). Wire Braid Reinforcement Makes the Hose Anti-Static and Provides Strength, Resistance to Crushing, Kinking;
2). Special Smooth Cover is Highly Resistant to Cuts, Abrasion, Sun & Weather and Will Not Scratch or Mark Vehicle Finish.
3). Very Fexible.
4). Light-Weighted.
5). Long usage time.
Paishun Team:
Exhibitions:
PASSION FOR HOSE, PASSION FOR YOU !
