Hydraulic Hose SAE100 R2
Hangzhou Haikuo Rubber and Plastic Products Co., Ltd.- Material：Nitrile Rubber
- Capability：Rubber Oil Hose
- Color：Color
- I.D.：3,16"-2"
- W.P.：80-415bar
- B.P.：320-1660bar
Base Info
- Model NO.：Hydraulic hose SAE100 R2A
- Length：100, 50meters
- Brand：Print and Embossed
- Surface Type：Smooth.Cloth
- Color Abailable：Black, Blue, Red, Grey or by Request
- Package：Roll, Plastic Film and Weave Bag
- OEM：Viable
- Sample：Viable
- Transport Package：Plastic Film and Pallet
- Trademark：HAIKUO OR OEM
- Origin：China
- Production Capacity：1000000m,Mon
Description
Part No.Hose Size ID Hose OD Max. Working Pressure Min. Bend Radius Min. Burst Pressure Weight in DIN in mm psi mpa in mm psi mpa kg/m 2SN-03 3/16 4.8 0.48 13.4 6000 41.4 3.5 89 24000 165.5 0.31 2SN-04 1/4 6.4 0.59 15.1 5800 40 4 100 23200 160 0.33 2SN-05 5/16 7.9 0.65 16.6 5000 35 4.5 115 20300 140 0.39 2SN-06 3/8 9.5 0.75 19.1 4800 33.1 5 125 19200 132.4 0.50 2SN-08 1/2 12.7 0.88 22.2 4000 27.6 7 180 16000 110.3 0.59 2SN-10 5/8 15.9 1 25.4 3630 25 8 200 14520 100.1 0.71 2SN-12 3/4 19 1.16 29.4 3120 21.5 9.5 240 12480 86 0.86 2SN-16 1 25.4 1.5 38.1 2400 16.5 12 300 9600 66.2 1.28 2SN-20 1 1/4 31.8 1.88 48.3 1820 12.5 16.5 420 7280 50.2 2.02 2SN-24 1 1/2 38.1 2.13 54.6 1310 9 20 500 5240 36.1 2.20 2SN-32 2 50.8 2.63 67.3 1160 8 25 630 4640 32 2.85

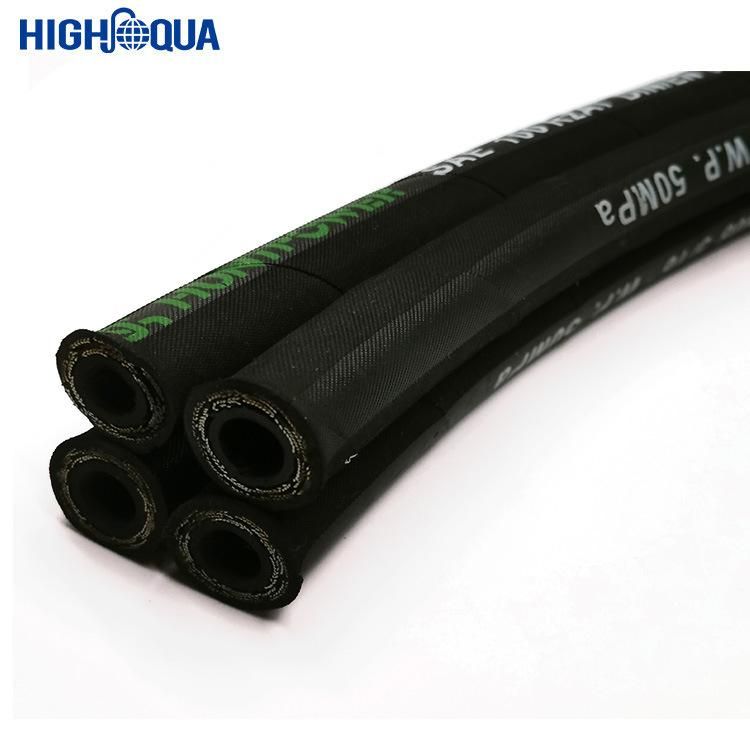

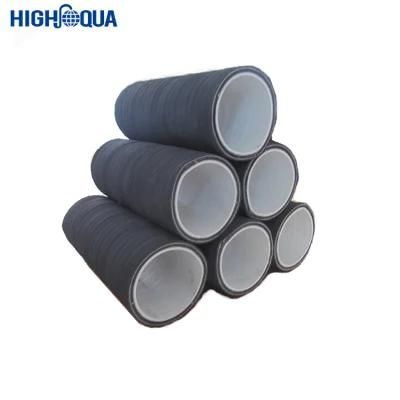

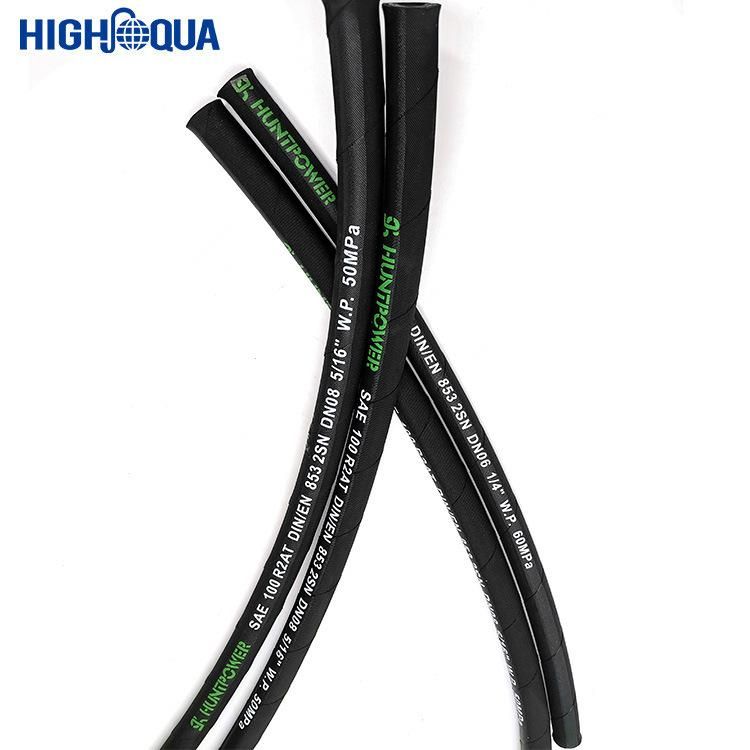

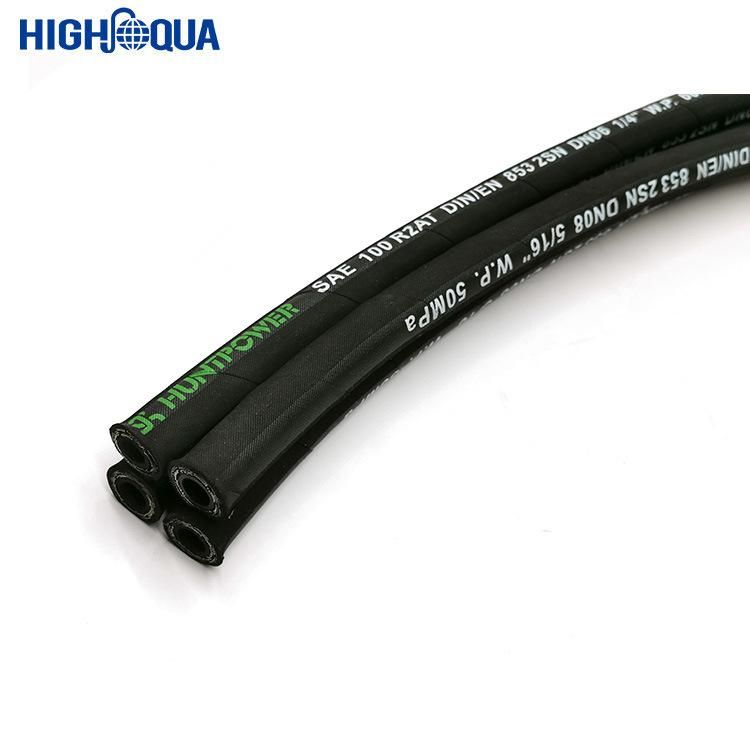

Product Show Of Rubber Hydraulic Hose:
