• Color：Red
• Product Name：Belt Conveyor Polyurethane Skirt Board Dual Seal
• Prdduction Process：Hot Casting Polyurethane Elastomer
• Benefits：Reduces Dust Leakage, Wear Resistant
• Features：Lightweight, Compact, Easy to Install
• Advantage：Factory Price, High Quality, Warranty, Experience
• Function：Prevent Material Spillage, Effective Seal
• Hardness：63 Shore a
• Bevel Edge：35 Degree or 45 Degree or Straight
• Description：Conveyor Polyurethane Skirting
• Keyword：Dual Seal Polyurethane Skirting
• Certificate：ISO, CE, SGS
• Transport Package：Crates, Pallet
• Specification：16mm thick, 120 - 250mm width, 30m length per roll
• Trademark：DebonTech
• Origin：China
• HS Code：4008290000
• Production Capacity：50000 Meters Per Month

Basic Info.

Color Red Product Name Belt Conveyor Polyurethane Skirt Board Dual Seal Prdduction Process Hot Casting Polyurethane Elastomer Benefits Reduces Dust Leakage, Wear Resistant Features Lightweight, Compact, Easy to Install Advantage Factory Price, High Quality, Warranty, Experience Function Prevent Material Spillage, Effective Seal Hardness 63 Shore a Bevel Edge 35 Degree or 45 Degree or Straight Description Conveyor Polyurethane Skirting Keyword Dual Seal Polyurethane Skirting Certificate ISO, CE, SGS Transport Package Crates, Pallet Specification 16mm thick, 120 - 250mm width, 30m length per roll Trademark DebonTech Origin China HS Code 4008290000 Production Capacity 50000 Meters Per Month

Product Description

Belt Conveyor Polyurethane Skirt Board Dual seal Polyurethane Skirting We're a manufacturer for conveyor components since 1996. Our main products include: belt cleaner, wear liner, skirt board, impact bar, pulley lagging, cord stripper, custom rubber and polyurethane products, etc.

Belt Conveyor Polyurethane Skirt Board Dual seal Polyurethane Skirting:

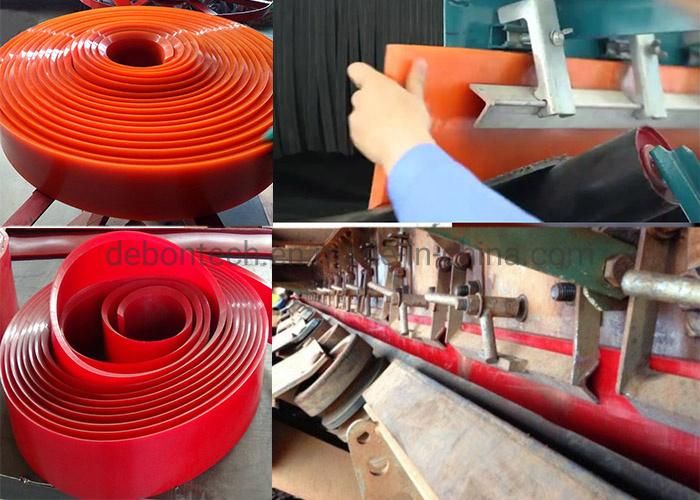

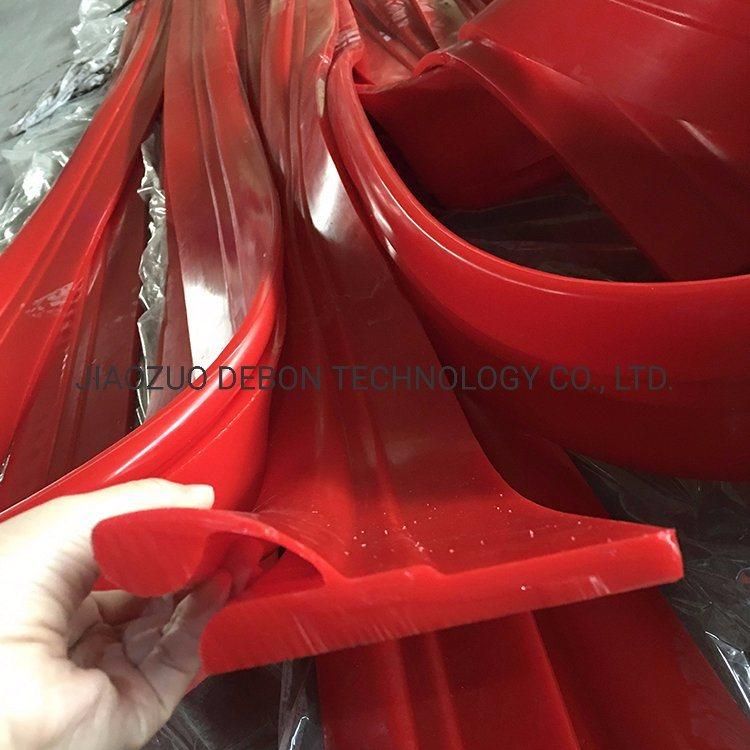

Dual Seal Polyurethane Skirting provides two contact points the entire length of the skirtboard to help prevent material spillage and manage dust emissions for any load zone.
Our proprietary polyurethane provides a softer material to prevent damage to the belt but maintains a high tear resistance to ensure a long functional life no matter the severity of the application.

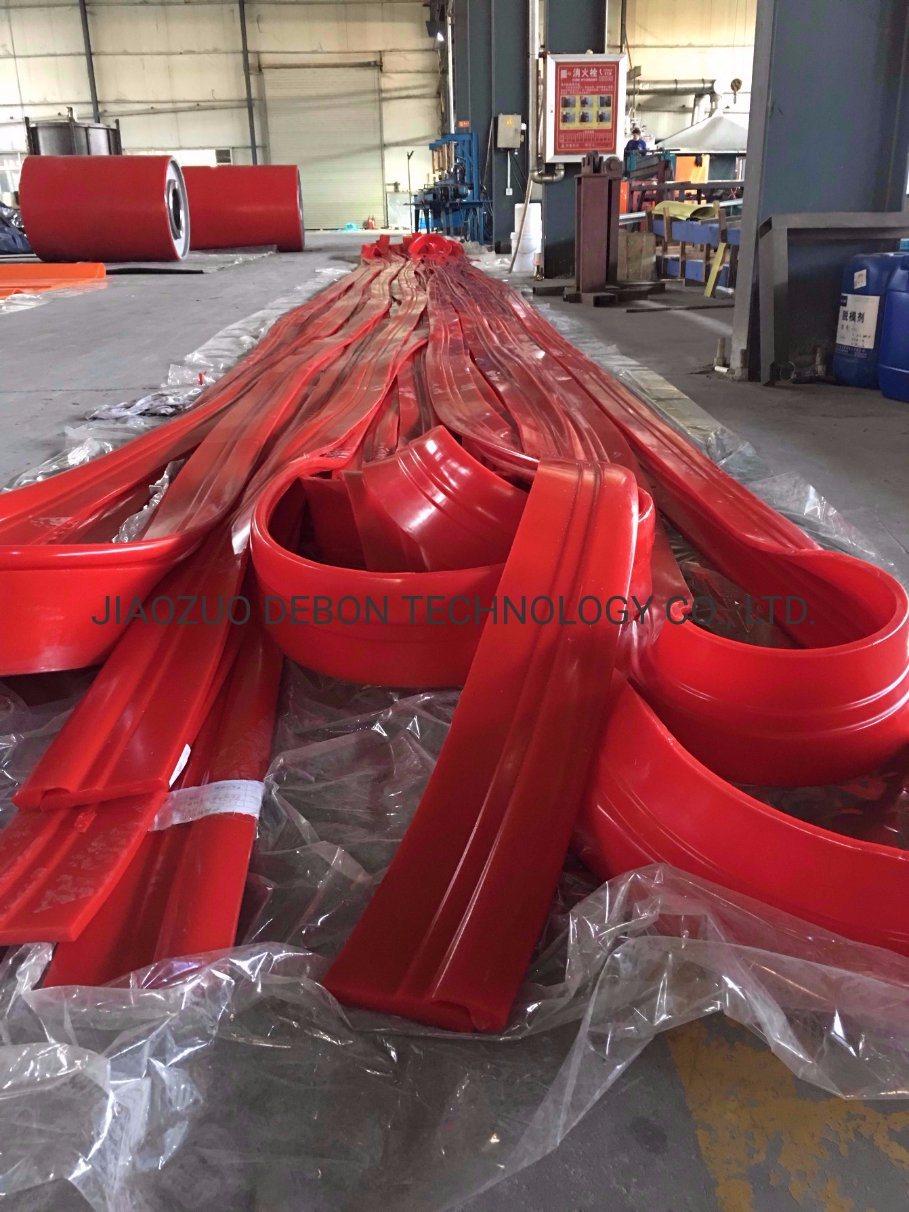

Specification of Dual Seal Polyurethane Skirting:1. Colour: red2. Hardness: 63 shore a3. Material: casting polyurethane4. Thickness: 16mm(12mm)5. Width/Height: 250mm or cut as required.6. Length: 30m per roll, as required.

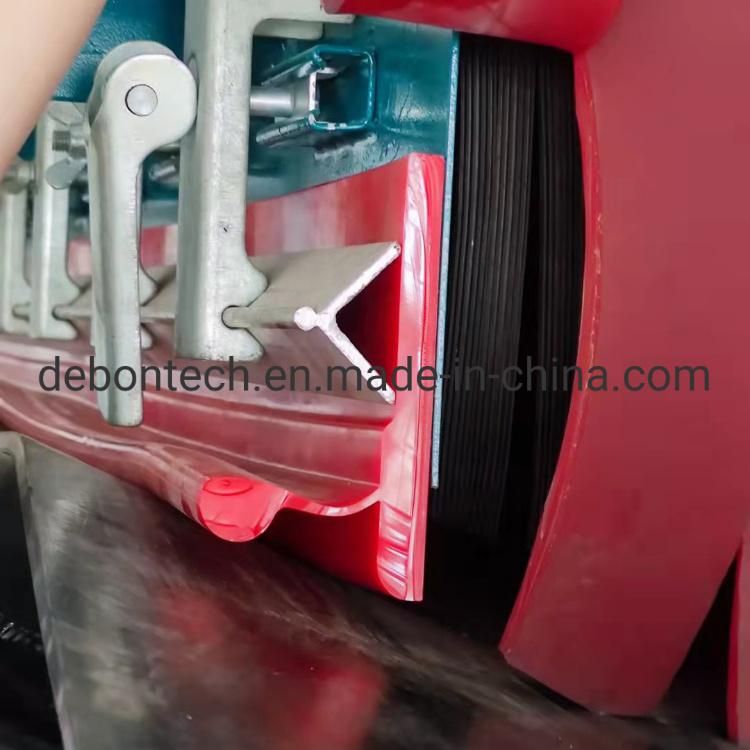

7. Inside seal provides a floating contact area behind the main slab to prevent spillage.

Features:
1. Double layer structure, inside layer keeps materials, outside layer prevents dust-leakage
2. The parts where contact the belt is made of polyurethane, which have longer lifetime and do not damage the belt
3. Clamp units are easy to install, adjust and maitainWe produce a wide range of conveyor skirt boards to meet your requirements.

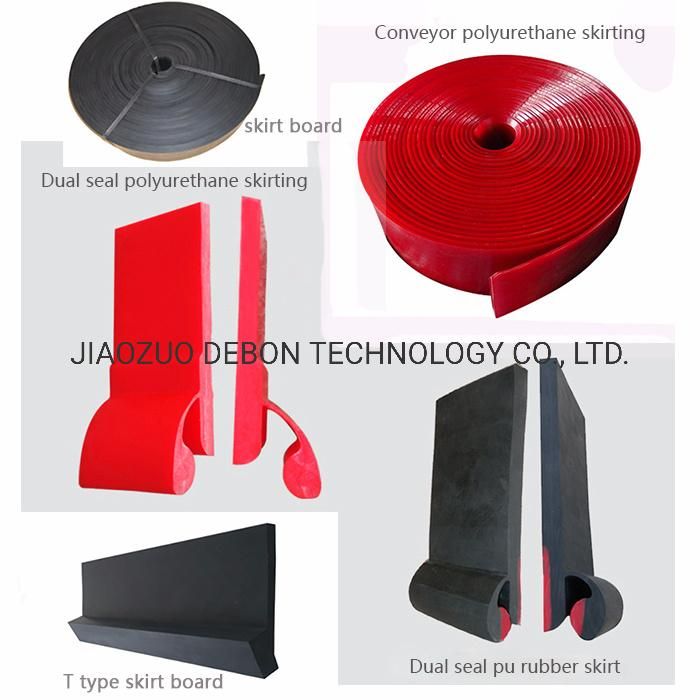

1. polyurethane conveyor skirting.2. double lips pu rubber skirt board, y-type skirt board3. double layers polyurethane skirting4. rubber skirting board5. T-type rubber skirt board.

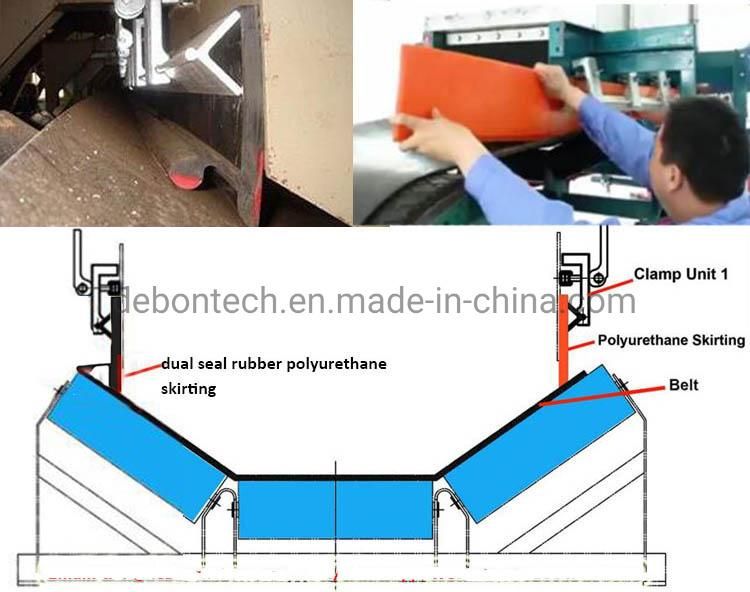

Installation Instructions:
1. Clamp units and angel bar are used together, every 1 meter needs two sets of clamp units
2. The height of skirt board can be adjusted according the dimensions of skirt chute.



Polyurethane Skirting

Custom size available. Poly urethane Conveyor Skirt Board is made of an extremely tough 60 65 70 80 90 Durometer Polyurethane that lasts an average of 5 times longer than rubber skirting equivalents.
Beveled edge that matches the troughing angle of your belt, eliminating the "break-in" adjustment and providing an even greater advantage.

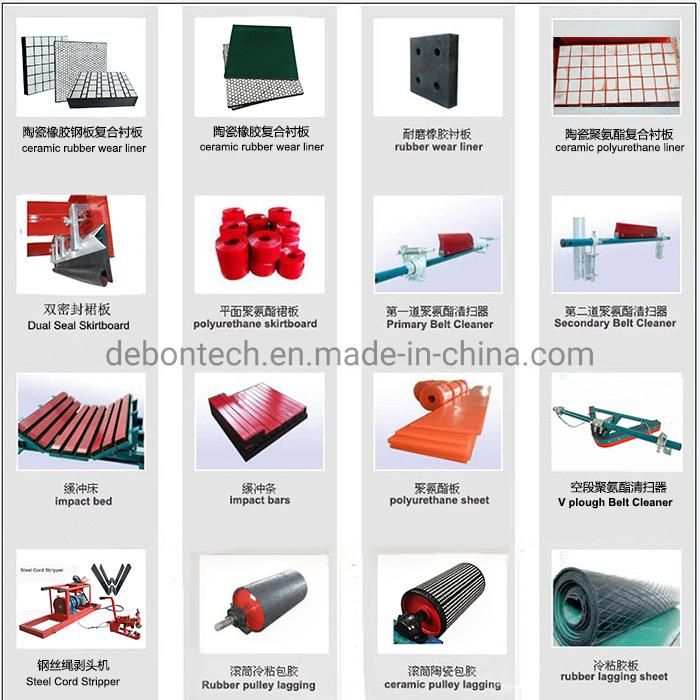

Main Products:

Main products: various kinds of Polyurethane Sheets,Rubber sheets, Rubber Ceramic Pulley Lagging, Conveyor Belt Cleaners, impact bed / bar, Ceramic Rubber Wear Liner For Conveyor Chute,pipe,bin,hopper and other material handing equipment, custom rubber products and polyurethane products, etc.




Company Info:

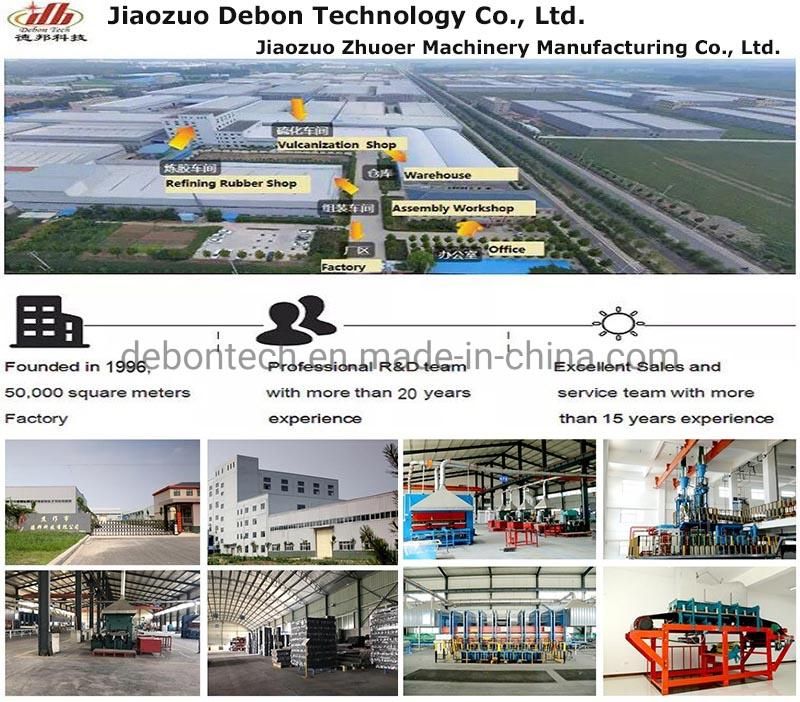

Jiaozuo Debon is a manufacturer with 126 employees, including 35 engineers. We are manufacturer specialized in designing and manufacturing Industrial Conveyor Belt Related Products. Our company is certified to ISO 9001:2008 Quality Management System, and rubber lagging products were certified to "SAFETY CERTIFICATE OF APPROVAL FOR MINING PRODUCTS".

Main Market: Southeast and Eastern Asia , Europe, South America, North America, Middle East, Africa, Oceania.
