Fiber Braided Rubber Water Hose for Transportation of Water and Gas Can Be Customized
Hangzhou Haikuo Rubber and Plastic Products Co., Ltd.- Material：SBR , EPDM
- Capability：Water Rubber Hose
- Color：Color
- Size：3,16"-2"

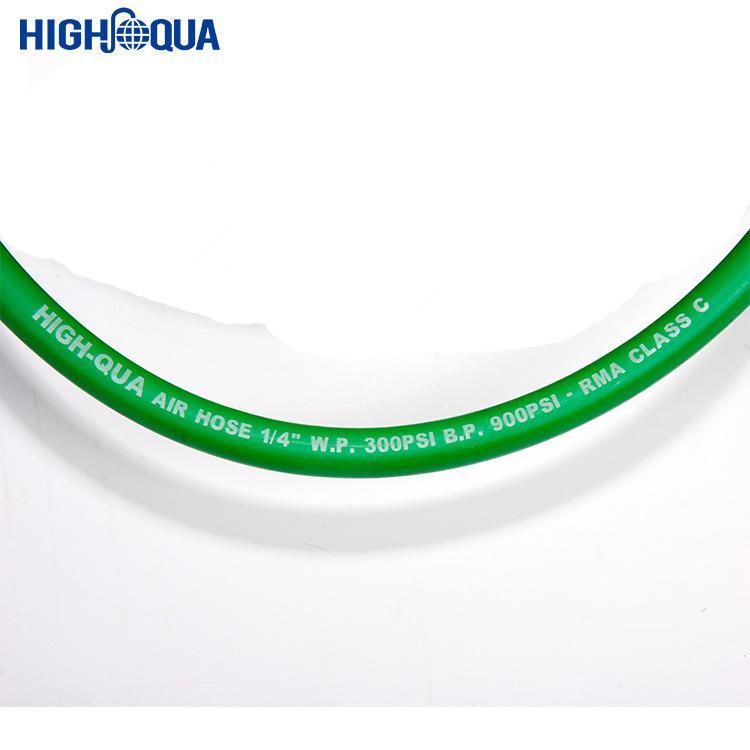

- W.P：300 Psi , 20 Bar
- B.P：900 Psi , 60 Bar
Base Info
- Model NO.：Rubber Water hose
- Application：Water, Air Delivery
- Advantage：Superior Quality and Competitive Price
- Length：50, 100 M,Roll
- Product Standard：ISO 2398
- Certification：Rosh
- Type：Rubber Water Hose

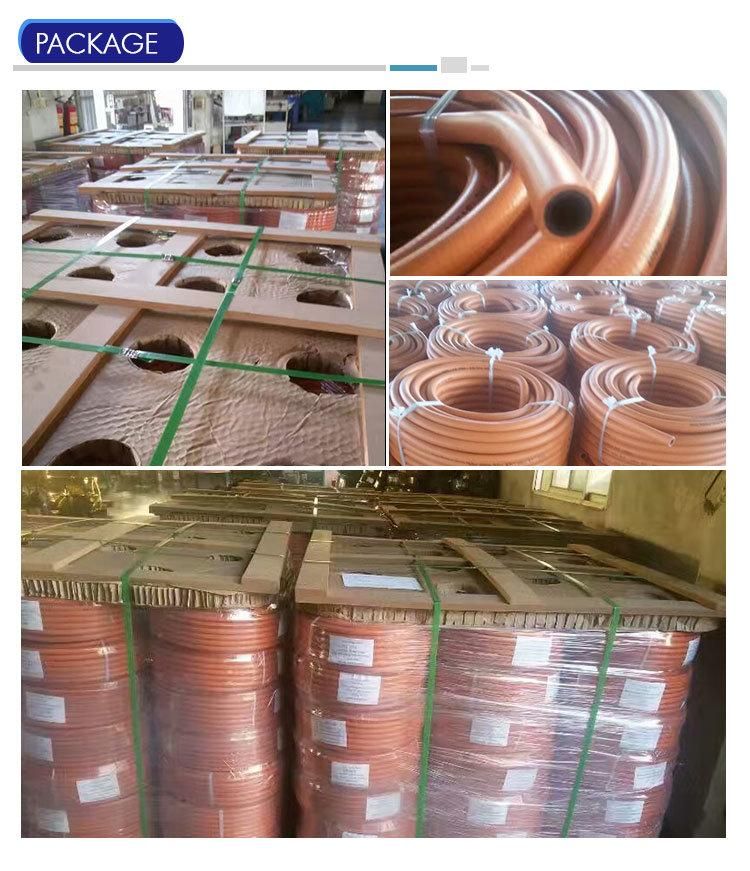

- Transport Package：by Transparent Plastic Film and Woven Belt.
- Specification：CE, ROSH, SGS
- Trademark：HIGH-QUA , OEM
- Origin：China
- HS Code：40093100
- Production Capacity：100000 M Per Month
Description
I.D.O.D. W.P. REIFORCE LAYER WEIGHT UNIT LENGTH mm in. mm psi. mpa. kg/m m/roll 3/16 4.8 0.45 11.5 300 2.07 1 0.15 100 1/4 6.4 0.63 16 300 2.07 1 0.18 100 5/16 7.9 0.59 15.0 300 2.07 1 0.22 100 3/8 9.5 0.75 19.1 300 2.07 1 0.27 100 1/2 12.7 0.91 23.1 300 2.07 1 0.40 100 5/8 15.9 0.96 24.5 300 2.07 1 0.50 100 3/4 19.1 1.14 29.0 300 2.07 1 0.75 100 3/4 19.1 1.18 30.0 300 2.07 2 0.80 100 1 25.4 1.42 36.1 300 2.07 1 0.95 100 1 25.4 1.42 36.1 300 2.07 2 0.95 100 1 1/4 31.8 1.75 44.5 300 2.07 2 0.70 50 1 1/2 38.1 2 54.0 300 2.07 2 0.85 50
Product Features
Material: inner tube is made of SBR or NR; or SBR&NR blend; outer cover is made of SBR or NR; or SBR&NR blend

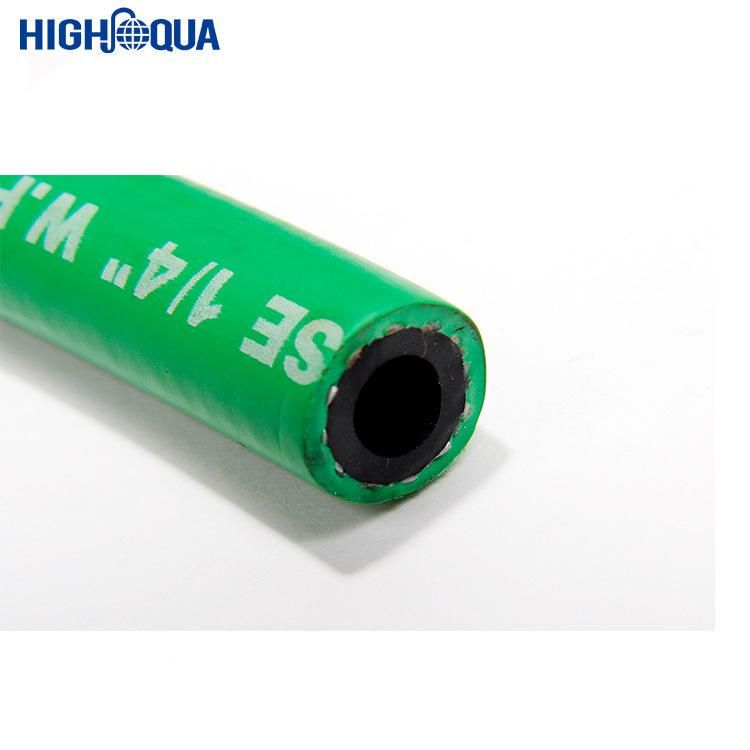

Structure: 1.Common type: Interior lining +Strengthen lining +Exterior lining.
2.Strength type (three lining and two weaving fiber): Add middle rubber lining and a weaving fiber base on the common type.
Color: black, red, blue, green, yellow, white, grey
Temperature: -25ºC-70ºC
Product Application
For the transportation of high pressure air or water liquid.
Product showing
