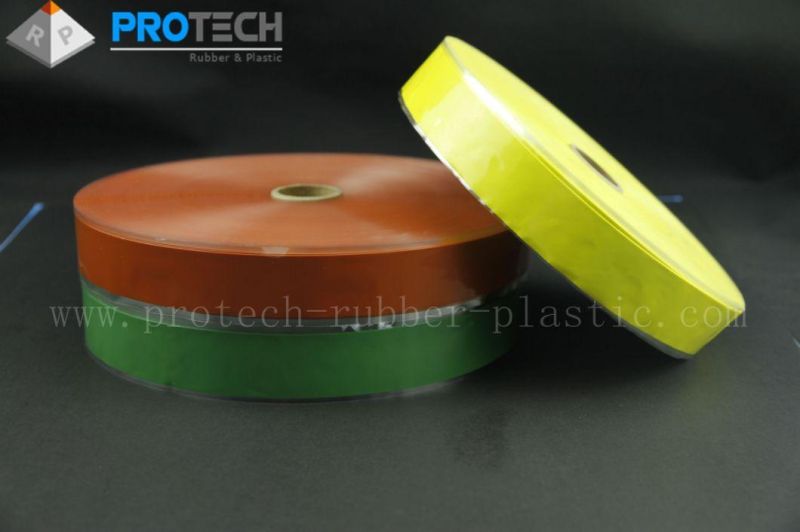

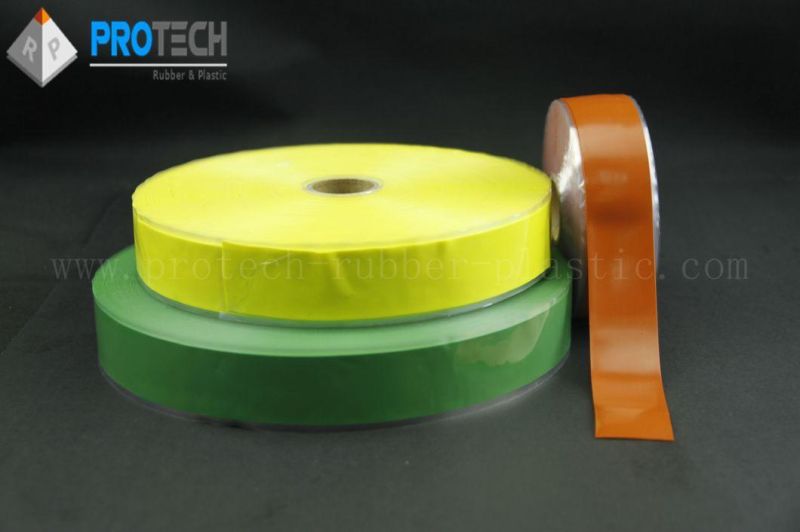

Self-Fusing Silicone Rubber Electrical Tape
Qingdao Protech Rubber&Plastic Co., Ltd.- Material：Silicone Rubber
- Application：Machinery, Industrial Component, Electronic Product, Vehicle, Household Appliance
- Effect：Repair
- Cross-Section Shape：Rectangle
- Color：Yellow, Black, Red, blue, Grey, Tranparent, Gree, W
- MOQ：500rolls
Base Info
- Model NO.：Protech-sf010
- Transport Package：Inside PP Bag+Carton Box+ Pallet(If Needed)
- Specification：thickness 0.3mm~2.5mm Width 20mm, 25mm, 50mm
- Trademark：Protech
- Origin：Qingdao, China
- HS Code：4016999090
- Production Capacity：1000000meters,Day
Description
General Specifications ITEM Silicone Rubber Self-fusing Adhesive Tape material silicone rubber type Insulation Tape thickness 0.3mm~2.5mm Width 20mm, 25mm, 50mm Length 2.5m, 3m, 5m, 10m Color Yellow, Black, Red, Bule, Grey, Tranparent,Gree, White or others Temp Range -60C°~ 250 C° feature Strong Adhesion/ self-melting usage rescue, repair and protect

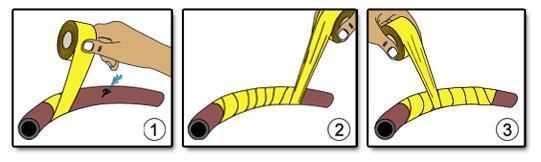

Usage method
Appropriate stretch tape, 1/2 forward lap winding, forming extrusion effect, the start and end positions need a completely overlap wrapping ring.
| Technical data | ||
| Performance | Typical data | Test Method |
| Hardness | 50A | ASTM D2240 |
| tensile strength | 8MPa | ASTM D412 |
| Elongation | 500% | ASTM D412 |
| Self adhesive strength | 6.3N/cm | ASTM D412 |
| Dielectric strength | 35KV/mm | |
| breakdown voltage | 9.5KV/0.5mm | ASTM D149 |
| Water resistance | 720hr without loosening | Water immersion at 25 degrees centigrade |
| Thickness | 0.5mm | ASTM D1000-76 |
| Fusion | Pass | |
| UV Resistance | Pass | ASTM D 4388 |
| Ozone Resistance | Pass | ASTM D 4388 |
| Xenon-arc exposure@1008h | Pass | ASTM D 4388 |
| • Automotive repair | |
| • Jacketing high voltage terminations | |
| • Motor lead insulation | |
| • Boat rigging wrapping | |
| • Flexible heater repair | |
| • Extension cord "connection" wrapping | |
| • Heavy duty industrial pipe wrapping | |
| • Tool handle wrappingr for a great non-slip grip | |
| Applications | • "Final wrap" for Electrical distribution connections |
| • Power & hand toll insulation | |
| • Underwater uses | |
| • Emergency radiator hose repairs; emergency insulating&barrier tape | |
| • Fishing industry uses | |
| • Military applications | |
| • Insulating generator coils | |
| • Temporary hose repairs | |
| • Harness wrapping: automotive, aircraft, protective |
Usage method
Appropriate stretch tape, 1/2 forward lap winding, forming extrusion effect, the start and end positions need a completely overlap wrapping ring.
