• Model NO.：wear-resisting sandblasting hose
• W.P.：3~10bar by Request
• B.P.：9~30 Bar by Reuqest
• OEM：Doable
• Surface：Cloth or Corrugated
• Temp. Range：-20~60 C Degree
• Sample：Viable
• Package：Roll or Straight

Basic Info.

Model NO. wear-resisting sandblasting hose W.P. 3~10bar by Request B.P. 9~30 Bar by Reuqest OEM Doable Surface Cloth or Corrugated Temp. Range -20~60 C Degree Sample Viable Package Roll or Straight

Product Description

2015 high quality Chinese wear-resisting sandblasting hose
High Quality Abrasion Resistant Sand Blasting Hose


Sand Blasting Hose, Abrasion Resistant Sand Blast Hose, Textile Reinforced Sand Blast Hose, sand suction hose

1.Application:
For sand, shot blasting applications and where abrasive materials are carried at high velocity Construction

2.Construction:
   Tube: Abrasion resistant rubber
   Reinforcement; Synthetic fiber
   Cover: Weather, ozone and abrasion resistant rubber

3.Working pressure: 1Mpa, 150Psi;

4.Temperature; -20° C-+80° C


Specifications

Inch	ID(mm)	OD(mm)	W.P. (Bar)	B.P. (Bar)	Bend Radius	Length
3/8"	10	23	20	60	127	20/40 m
1/2"	13	26	20	60	178	20/40 m
5/8"	16	29	20	60	203	20/40 m
3/4"	19	32	20	60	241	20/40 m
1"	25	39	20	60	305	20/40 m
1-1/4"	32	48	20	60	419	20/40 m
1-1/2"	38	56	20	60	508	20/40 m
1-3/4''	45	63	20	60	560	20/40 m
2''	51	69	20	60	635	20/40 m

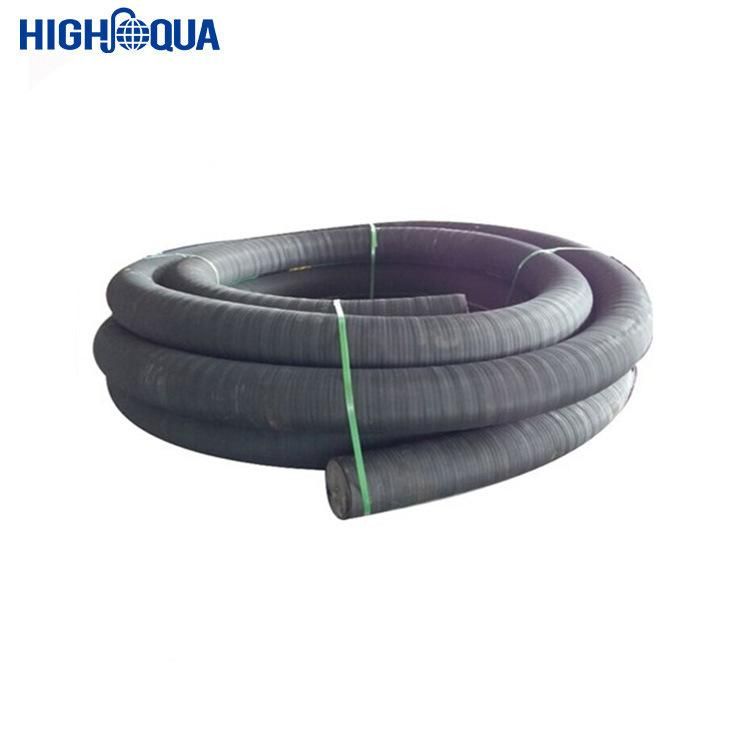

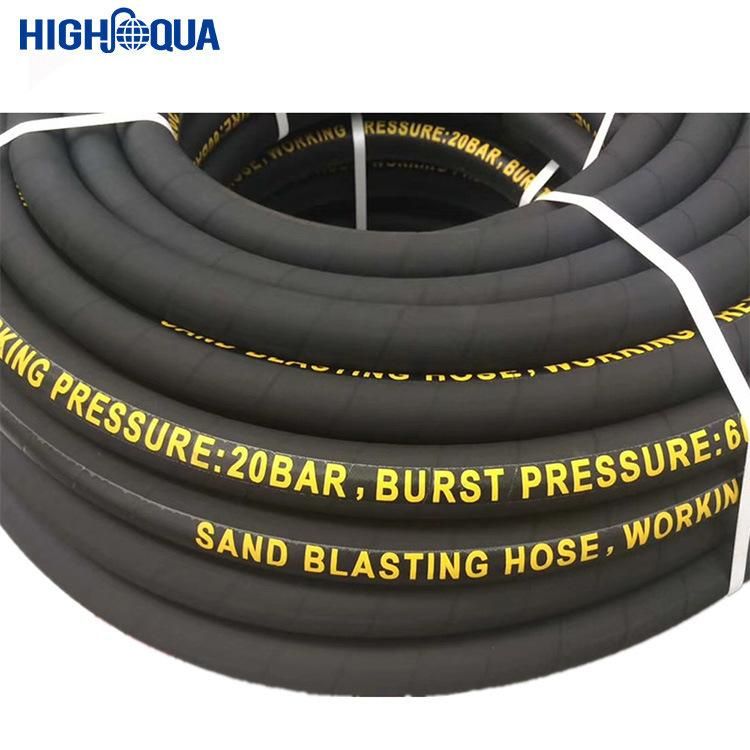

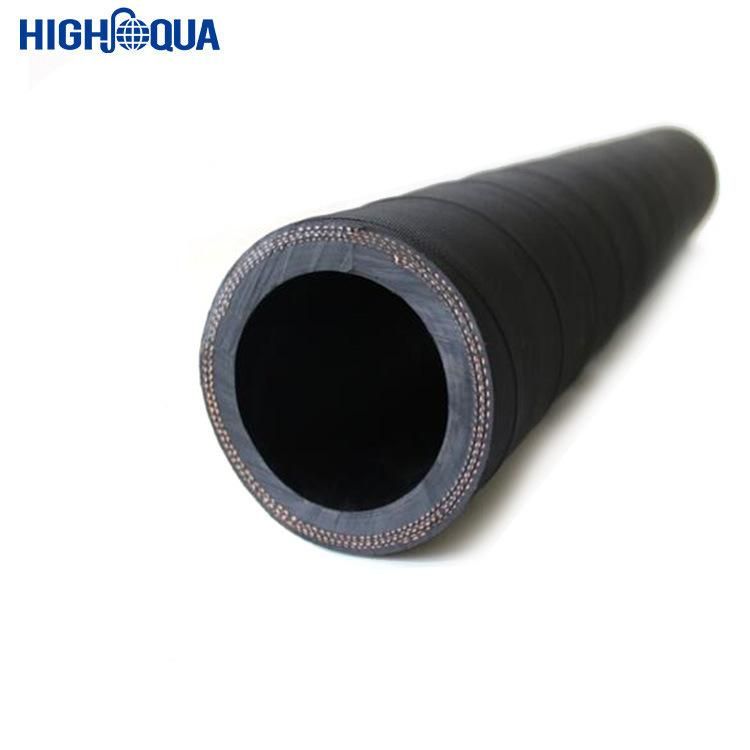

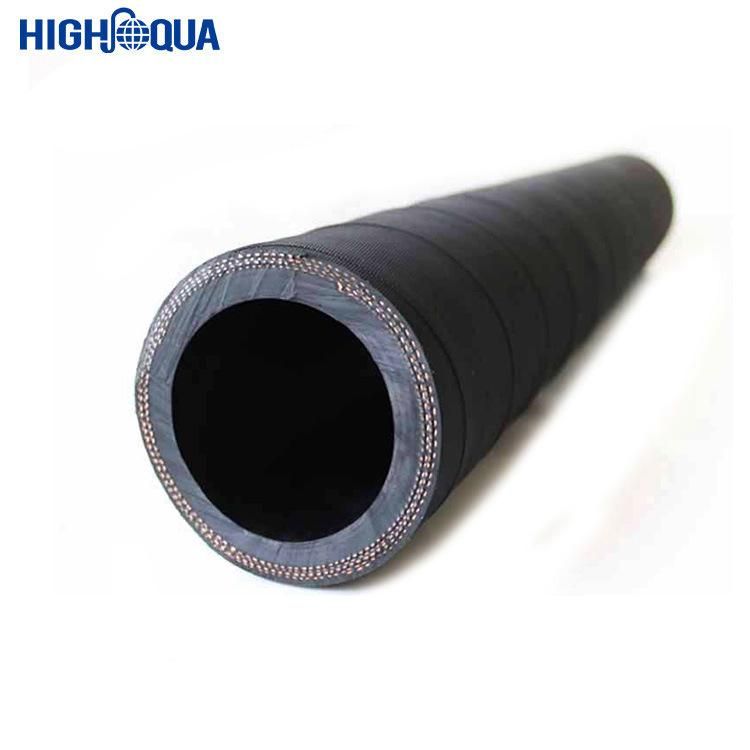

Product showing



                                                             >>>Free samples are available!


Quality Assurance:
Each production process would be controlled strictly. The material as export standard.
Packaging&Shipping
Packaging Details: By transparent plastic film and woven belt  or your request.
Delivery Time: We are responsible for shpping goods to delivery port on time.

 Exhibition show




If you have any other questions, please do not hesitate to contact us!
