• Model NO.：3A5010
• Color：Green Rubber Sheet
• Transport Package：Packing in Rolls and Cartons
• Specification：Standard Size
• Trademark：3A Rubber
• Origin：China
• HS Code：40082100
• Production Capacity：100000kgs,Month

Basic Info.

Model NO. 3A5010 Color Green Rubber Sheet Transport Package Packing in Rolls and Cartons Specification Standard Size Trademark 3A Rubber Origin China HS Code 40082100 Production Capacity 100000kgs/Month

Product Description

Antistatic Sheet, Antistatic Sheeting, Antistatic Rolls, Antistatic Mat, Antistatic Table, Antistatic Rubber Sheet (3A5010)

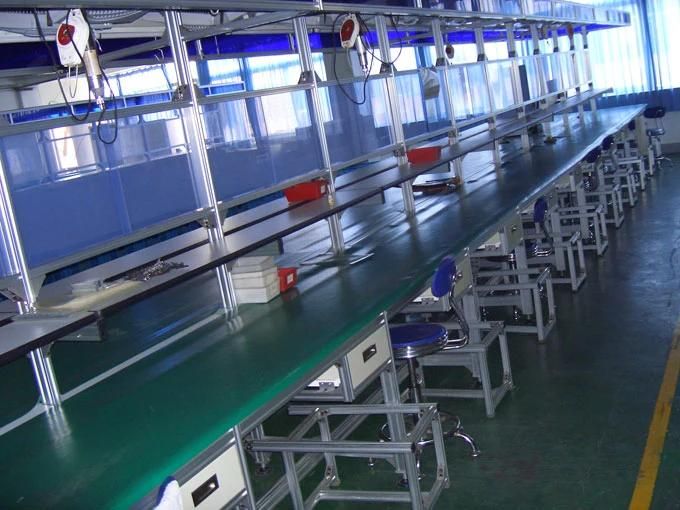

Description: the antistatic rubber sheet, ESD rubber sheet are made by drum vulcanizer(ROTOCURE) with high quality nitrile-butadiene rubber(NBR), special prescription and produce technology with best performance of antistatic, ESD Rubber Sheet also named antistatic rubber sheet, it is a logogram of Electro-Static Discharge(ESD) rubber sheet under moderate hardness and high tensile strength, no smell and good abrasion resistance, oil resistant and elasticity, working under the middling pressure status at the temperature of -35°C - +100°C in air. Apply for the industrial of electronic, textile, printing and dyeing and other place with same or higher request.



Specifications:

material: NBR Rubber

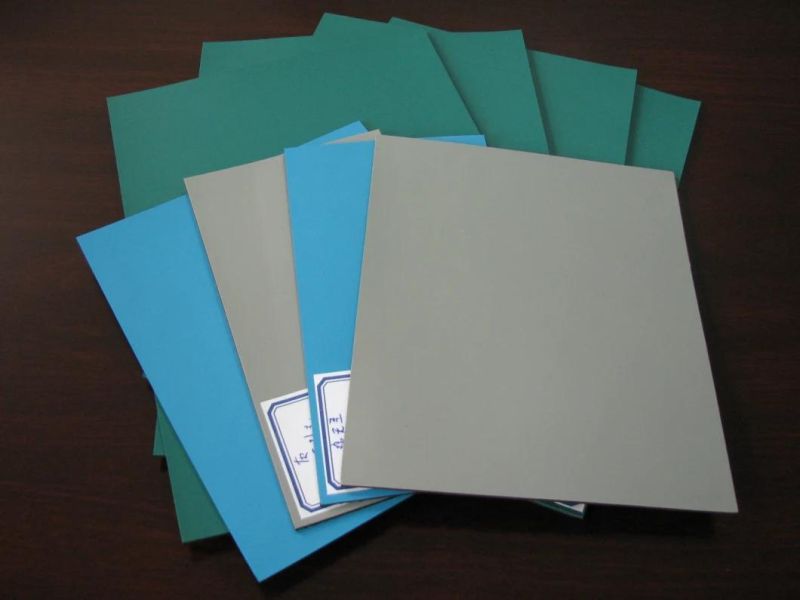

color: green/black, blue/black, grey/black, black/black

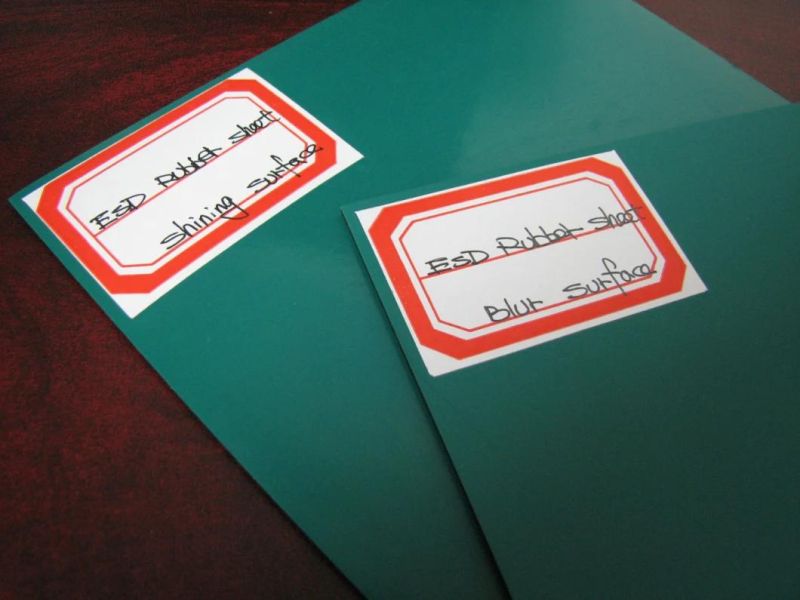

surface: shiny/smooth or sand/smooth

top: 10⁷-10⁹ohm

bottom: 10³-10⁵ohm

attenuation time of electrostatic pressure: 0.1S

tensile strength: 6-8Mpa

hardness: 70+/-5shore A

elongation: 300%

density: 1.4g/cm³

working temperature: -35°C - +100°C

thickness: 2-3mm

width: 0.6, 0.7, 0.8, 0.9, 1.0, 1.1, 1.2mm

length: 10-20m

OEM & customized size are agreed

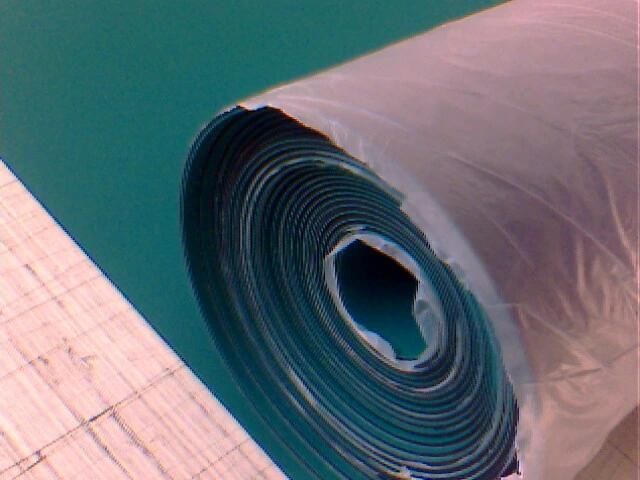

packing in rolls, cartons and pallets

***when you enquiry, pls confirm the color, size and quantity***
