• Model NO.：HPS8 - HPS200
• Specification：HPS8 - HPS200
• Trademark：HY
• Origin：Hebei
• HS Code：3917400000
• Production Capacity：10000m,Day

Basic Info.

Model NO. HPS8 - HPS200 Specification HPS8 - HPS200 Trademark HY Origin Hebei HS Code 3917400000 Production Capacity 10000m/Day

Product Description

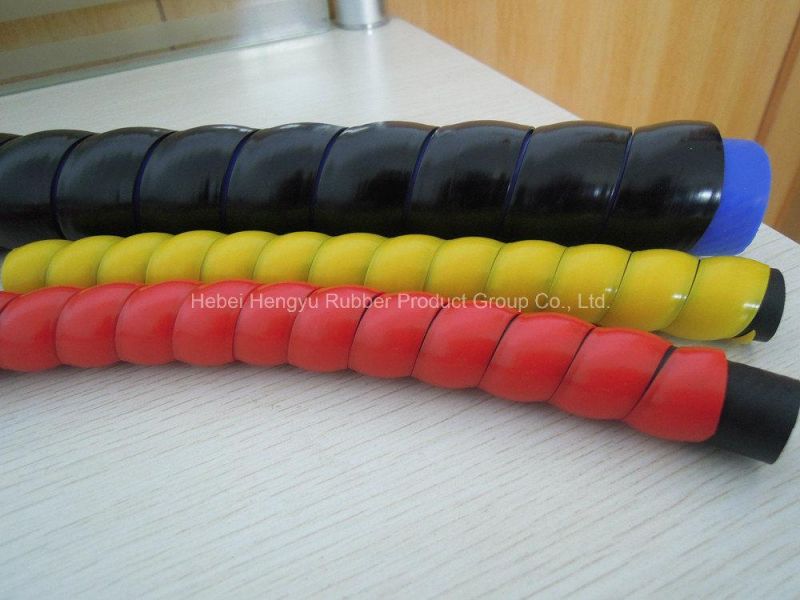

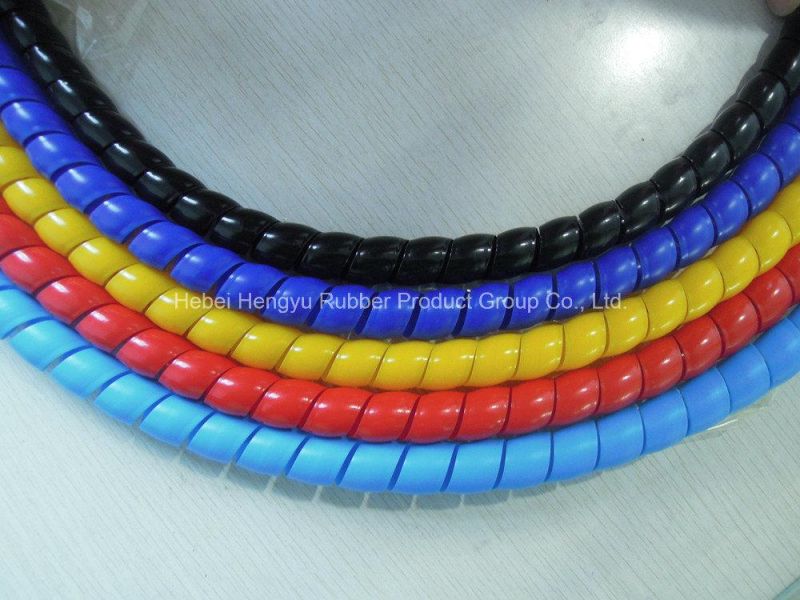

Spiral Protector of Polypropylene
MAIN APPLICATION:
To protect the cover of hose from damage, easy matched with all the flexible rubber hoses.

ТЕМПЕРАТУРНЫЙ ДИАПАЗОН:
-40°F / +212°F  -40°C / +100°C

MATERIAL:
Polypropylene

COVER TYPE:
flat Surface or cambered surface

COLOR:
7 colors can be selected,  black, yellow, red, green, etc.


Part No.	I.D	O.D	Wall Thickness	Recommended Hose O.D	Length
	mm	mm	mm	mm	m
HPS-8	8.0	9.4	1.2	8~12	2 / 50
HPS-10	10.0	13.0	1.3	10~14	2 / 50
HPS-12	12.0	15.0	1.5	12~16	2 / 50
HPS-14	14.0	17.0	1.5	14~18	2 / 50
HPS-16	16.0	20.0	2.0	16~20	2 / 50
HPS-18	18.0	22.0	2.0	18~22	2 / 50
HPS-20	20.0	25.0	2.5	20~25	2 / 50
HPS-22	22.0	27.0	2.5	22~27	2 / 50
HPS-25	25.0	30.0	2.5	25~30	2 / 50
HPS-28	28.0	34.0	3.0	28~32	2 / 50
HPS-30	30.0	36.0	3.0	30~35	2 / 50
HPS-32	32.0	38.0	3.0	32~38	2 / 20
HPS-35	35.0	42.0	3.5	35~40	2 / 20
HPS-38	38.0	45.0	3.5	38~43	2 / 20
HPS-42	42.0	49.0	3.5	42~50	2 / 20
HPS-45	45.0	52.0	3.5	45~60	2 / 20
HPS-50	50.0	57.4	3.7	50~70	2 / 20
HPS-60	60.0	68.0	4.0	60~80	2 / 20
HPS-74	74.0	82.0	4.0	74~90	2 / 20
HPS-80	80.0	89.0	4.5	80~100	2 / 10
HPS-88	88.0	97.0	4.5	88~110	2 / 10
HPS-100	100.0	110.0	5.0	100~120	2 / 10
HPS-110	110.0	122.0	5.0	110~135	2 / 10
HPS-130	130.0	140.0	5.0	130~170	2 / 10
HPS-150	150.0	162.0	6.0	150~210	2 / 10
HPS-175	175.0	188.0	6.5	175~250	2 / 10
HPS-200	200.0	214.0	7.0	200~300	2 / 10
