• Model NO.：Y Type
• Thickness：10-30mm
• Color：Balck and Red
• Type：Y & T
• Transport Package：Pallet
• Specification：15mm x 190mm
• Trademark：RD
• Origin：China
• HS Code：1305960520
• Production Capacity：50000meters,Month

Basic Info.

Model NO. Y Type Thickness 10-30mm Color Balck and Red Type Y & T Transport Package Pallet Specification 15mm x 190mm Trademark RD Origin China HS Code 1305960520 Production Capacity 50000meters/Month

Product Description

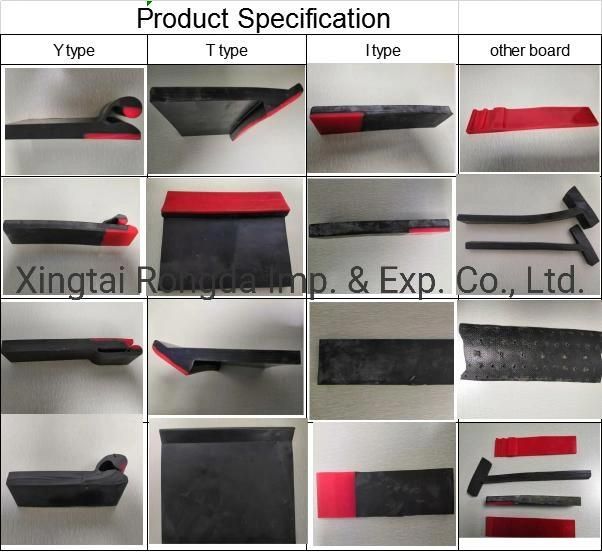

 Manufacturing Rubber Sealing board Various of size  for Conveyor System Y type

1. Compositate Skirting Rubber

System No	Thichness         mm	Widthness.mm	Material	Length.M
RD-QY4S-15	15	280/190/180/170/150/120	NR+PU	25M/ROLLER OR OEM
RD-QY4S-16	16	300/250/220/200/190/180/170	NR+PU	25M/ROLLER OR OEM
RD-QY4S-19	19	300/190	NR+PU	25M/ROLLER OR OEM
RD-QT60--15	15	150	NR+PU	25M/ROLLER OR OEM
RD-QT60--16	16	300/250	NR+PU	25M/ROLLER OR OEM
RD-QT60--18	18	300	NR+PU	25M/ROLLER OR OEM
RD-QI008-8	8	300/250	NR+PU	25M/ROLLER OR OEM
RD-QI0010	10	300/250/200	NR+PU	25M/ROLLER OR OEM
RD-QI0012	12	300/250	NR+PU	25M/ROLLER OR OEM
RD-QI0015	15	300/200/180/150/120	NR+PU	25M/ROLLER OR OEM
RD-QF1006	10-06	200	PU	25M/ROLLER OR OEM
RD-QE	OEM	OEM	NR OR PU	25M/ROLLER OR OEM

2.Our product showcase:



3.OEM is available

Compositate Skirting Rubber thickness:15-25mm
Compositate Skirting Rubber widthness:150mm-300mm
Compositate Skirting Rubber: Accodring to the request,the same length with the channel.

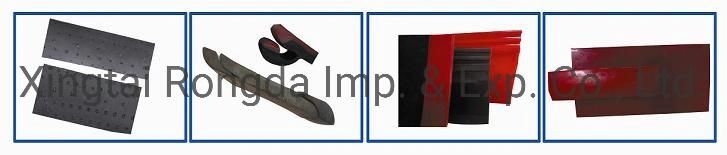

4.Other product:

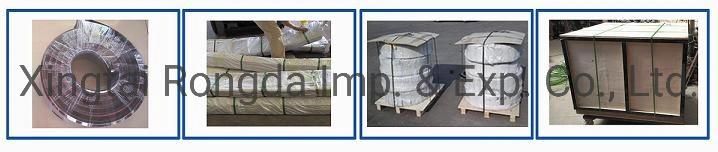

 5.Packing system:

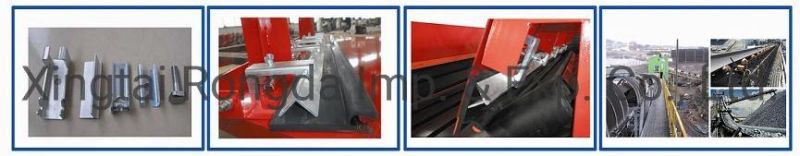

 6.Installation and usage site:


7.Our Advantage:

The Technical feature of the double Apron seal Composite Skirting Rubber belt is
1.The skirting rubber material: we use the PU and the rubber together,the part which contact with the PU what is mainly to seal.The PU material use the best imported podwer lot with the pouring technical. The Porting technical to manufacture the PUplate is developed by our company.Our PU plate can be used in longer time,higher wear-resisting than other PU which be made use the extruding technical.
2.The sealng effect: the spill skirt board use the plate+the skirt double sealinhg integrated structure. The plate nearly closed to the side of the feed channel,its bottom contact with the belt,to prevent goods spilling over.The skirt evaginate can rotating within a certain angle,depending on the rubber elastic,it can follow the belt automatically and always to contact with the belt closely,so the sealing effect is very good.
