Ep/Nn Conveyor Belt

Qingdao Juhang Rubber Belt Co., Ltd.
  • Type：Conveyor Belt
  • Feature：Wear-resistant, Heat-resistant, Tear-resistant, Flame-resistant, Cold-resistant
  • Usage：Waterproof Tape
  • Performance：Strong Rubber Conveyor Belt
  • Size：500mm~2400mm

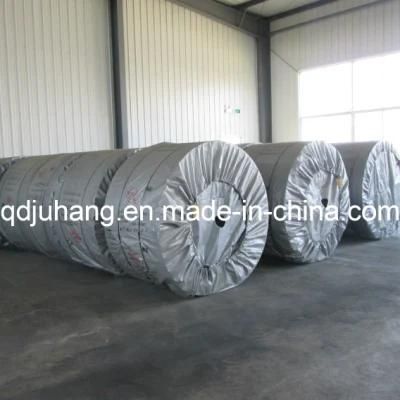

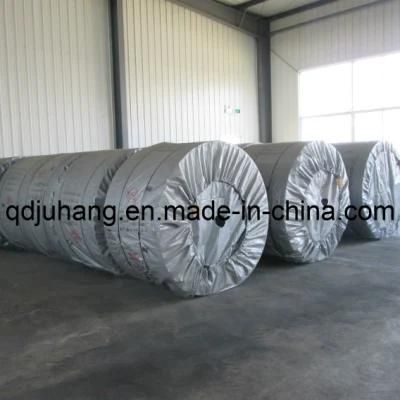

  • Transport Package：PVC Water-Proof Cloth

Base Info

  • Model NO.：315N~3150N
  • Specification：315N~3150N
  • Trademark：JUHANG
  • Origin：Shandong Qingdao
  • HS Code：4010120000
  • Production Capacity：1000000meter,Year

Description

Fabric cc-100 cc-150 cc-200 cc-250 cc-300 cc-400
Cloth thickness (mm) 1.10 1.15 1.2 1.3 1.4 1.5
Longitudinal full thickness  tensile strength (KN/m) 3 plies 300 450 600 750 900 1200
4 plies 400 600 800 1000 1200 1600
5 plies 500 750 1000 1250 1500 2000
6 plies 600 900 1200 1500 1800 2400
7 plies 700 1050 1400 1750 2100 2800
8plies 800 1200 1600 2000 2400 3200
Fabric adhesion (N/mm) > =4.5
Longitudinal elongation < =4%
Width (mm) ­ ­ ­ 400~2600
Rubber thickness (mm) top 1.5~8
bottom 0~4.5
Length/Roll (m) < =200 < =250












Fabric EP-100 EP-150 EP-200 EP-250 EP-300 EP-400
Cloth thickness (mm) 1.10 1.15 1.2 1.3 1.4 1.5
Longitudinal full thickness  tensile strength (KN/m) 3 plies 300 450 600 750 900 1200
4 plies 400 600 800 1000 1200 1600
5 plies 500 750 1000 1250 1500 2000
6 plies 600 900 1200 1500 1800 2400
7 plies 700 1050 1400 1750 2100 2800
8plies 800 1200 1600 2000 2400 3200
Fabric adhesion (N/mm) > =4.5
Longitudinal elongation < =4%
Width (mm) ­ ­ ­ 400~2600
Rubber thickness (mm) top 1.5~8
bottom 0~4.5
Length/Roll (m) < =200 < =250










Fabric NN-100 NN-150 NN-200 NN-250 NN-300 NN-400
Cloth thickness (mm) 1.10 1.15 1.2 1.3 1.4 1.5
Longitudinal full thickness  tensile strength (KN/m) 3 plies 300 450 600 750 900 1200
4 plies 400 600 800 1000 1200 1600
5 plies 500 750 1000 1250 1500 2000
6 plies 600 900 1200 1500 1800 2400
7 plies 700 1050 1400 1750 2100 2800
8plies 800 1200 1600 2000 2400 3200
Fabric adhesion (N/mm) > =4.5
Longitudinal elongation < =4%
Width (mm) ­ ­ ­ 400~2600
Rubber thickness (mm) top 1.5~8
bottom 0~4.5
Length/Roll (m) < =200 < =250
