• Model NO.：RV-2030
• Trademark：hongyuan
• Origin：Taian
• HS Code：40169990
• Production Capacity：1000m,Day

Length(mm)
Width(mm)
Thickness(mm)
5000
20
25

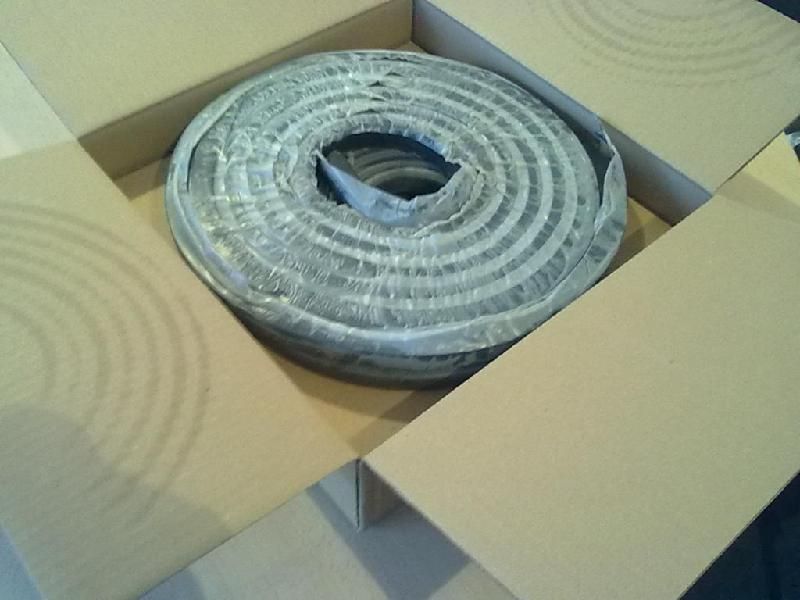

Standard Specifications:1.Section Size:20mmX25mm;2.lLength:5.0m/roll;3.Package:10rolls/box.
Size bias:Length is within specification value±1%,width and thickness is within specification value±1%.Other special specification and size is confirmed by two sides.
Product Performance and Standard(JG/T141-2001- The People's Republic of China Building Industry Standards)
Items
Index
Common
Slow-swelling
Anti-water pressure,Mpa≥
1.5
2.5

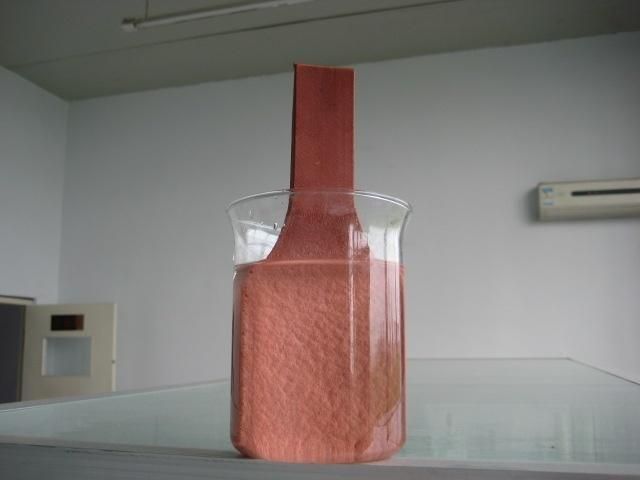

Water welling rate in specified time/%
4h
200-250
----
24h
----
200-250
48h
72h
96h
120h
144h
Maximum water swelling ratio/% ≥
400
300
Density,g/cm3

1.6±0.1
1.4±0.1
Heat resisitance
80°C,2h
----
No flow
150°C,2h
No flow
----
Low temperature flexibility
-20°C,2h circleΦ20mm Rods
----
No crack
-35°C,2h circleΦ20mm Rods
No crack
----
Water resistance
Soak 24h
No mud
----
Soak 240h
----
Overrall expansion,no fragments
Items
Index
Common
Slow-swelling
Anti-water pressure,Mpa≥
1.5
2.5
Water welling rate in specified time/%
4h
200-250
----
24h
----
200-250
48h
72h
96h
120h
144h
Maximum water swelling ratio/% ≥
400
300
Density,g/cm3

1.6±0.1
1.4±0.1
Heat resisitance
80°C,2h
----
No flow
150°C,2h
No flow
----
Low temperature flexibility
-20°C,2h circleΦ20mm Rods
----
No crack
-35°C,2h circleΦ20mm Rods
No crack
----
Water resistance
Soak 24h
No mud
----
Soak 240h
----
Overrall expansion,no fragments
Installation and Notes
1. To clear the debris, dross and dust, etc before installing the waterstop and keep the base dry;
2. The waterstop must be fixed with nails or adhesive on the surface of the central position, make sure not fall off;
3. The overlap joints of the waterstop must be parallel connection and form a closed, not leaving the breakpoint;
4. The storage and transport of the waterstop avoid moisture, extrusion, deformation;
5. The package box cantains detailed installation instructions, the construction must follow the instruct.
