3/4 Inch High Pressure Steel Wire Braided Rubber Hose Hydraulic Hose En853 2sn 100r2at
Nantong Maylead Technology Co., Ltd.- Material：Nitrile Rubber
- Capability：Water Rubber Hose
- Color：Black
- Application：for Aircraft Fuel, Mine Hydraulic Support
- Length：100m 50m as Request
- Surface：Smooth or Wrapped
Base Info
- Model NO.：3,4 inch
- Cover：Weather Resistant Synthetic Rubber
- Temperature：-40c to 100c
- Reinforcement：One Braid of High Tensile Steel Wire
- Applied Standard：SAE 100r1at,DIN En853-1sn
- W.R：21.5MPa
- Package：Woven Bage,Wooden Case as Option

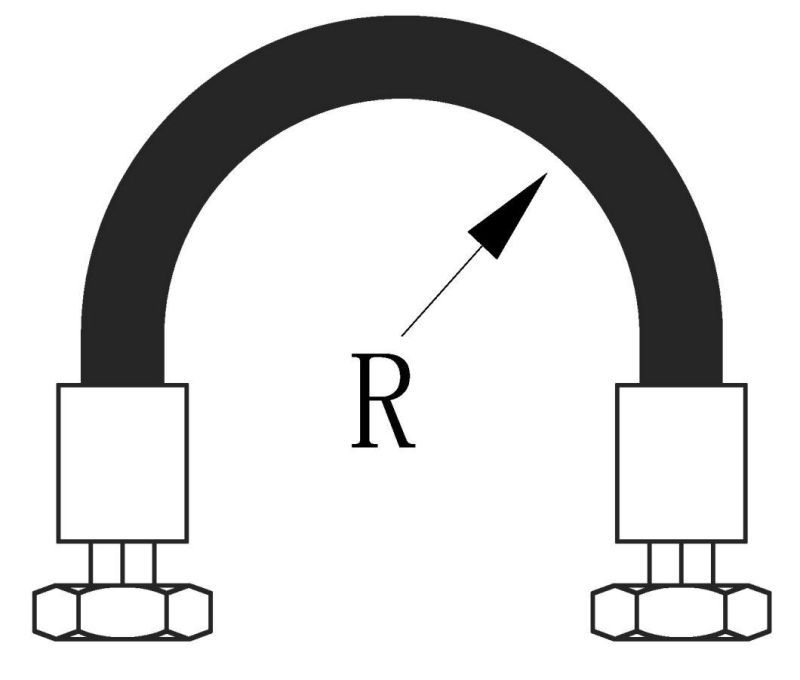

- Minimum Bending Radius：240mm
- Inner Tube：Oil Resistant Synthetic Rubber
- Certification：ISO9001
- Transport Package：Weaven Bag or Pallet
- Specification：3,4"
- Trademark：Maylead
- Origin：Nantong, China
- HS Code：40092100
- Production Capacity：5000000m
Description
Nantong Maylead Technology Co. , Ltd. was the manufacturer in China with the experience of more than 15 years. We focus on professional production and sales of steel wire braided hose and steel wire spiral rubber hose. Our products are suitable for Automotive, Motorcycle Parts & Accessories , Construction & Decoration , Industrial Equipment & Components , Manufacturing & Processing Machinery applications.
We completed the new plant covers an area of 56 acres, building area of 25,000 square meters.
Modern production equipment; adcanced manufacturing technology; high-level talent introduction; passed ISO9001:2015, ISO14001:2015, and
OHSAS18001:2007 certification; owned a number of patents; exported to East Europe, Russia, Southest Asia etc.

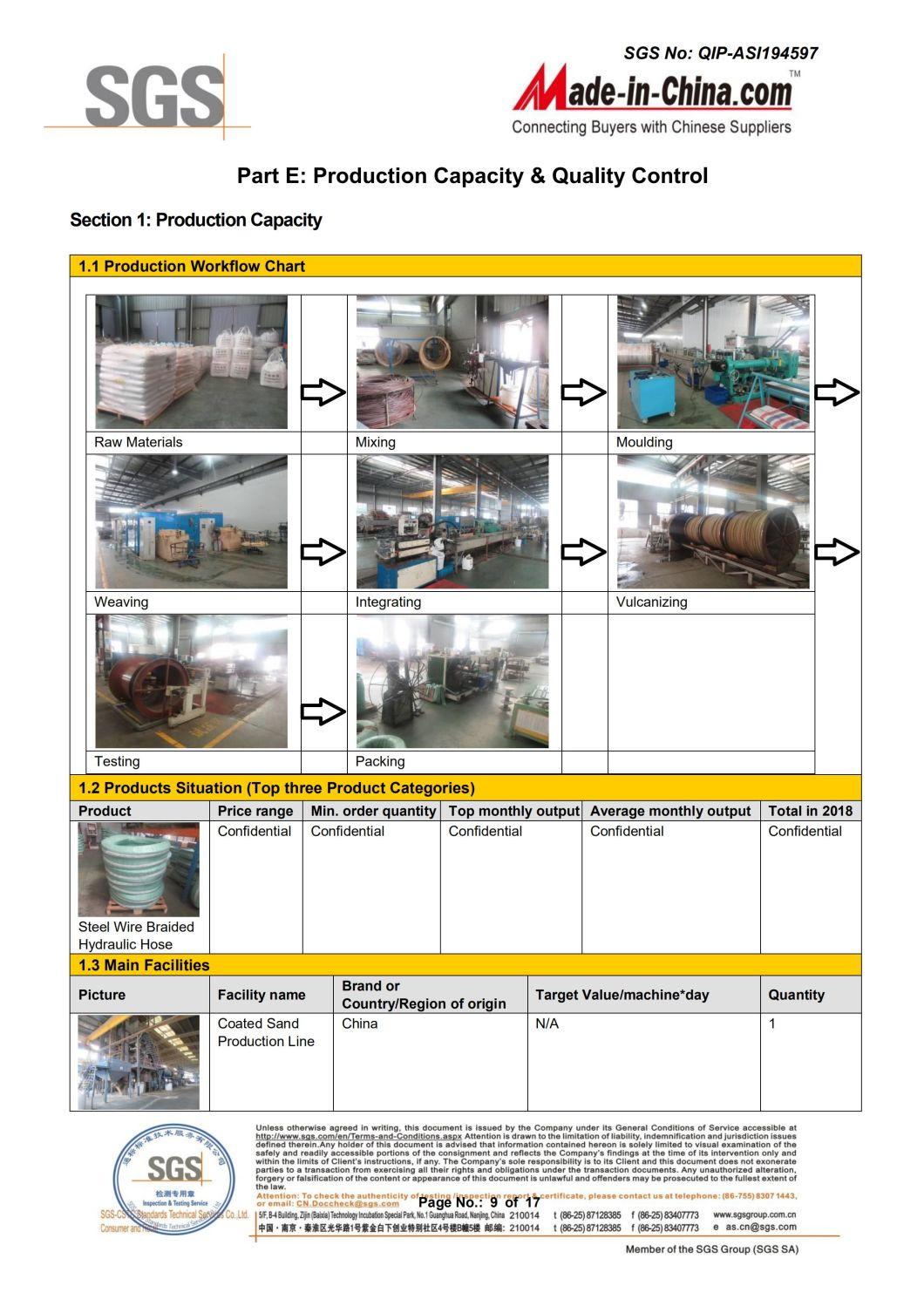

Production Process
A. Regarding the hose and fittings assembly shall consider the following aspects:
- Working environment; environment temperature, weather condition and other external contact objects;
- Conveying medium: liquid, gas, paste, powder, or mixture of several media;
- Medium transmission mode: positive pressure transmission, negative pressure suction;
- Working conditions: pressure, temperature and flow of conveying medium; Pulse or motion frequency; Chemical properties of the medium;
- The bending radius of the hose installation is too small, and the hose body is torsional deformation;
- Hose installation free length or movement length is not enough, squeezed, rubbed, stretched and twisted by external forces;
- The working temperature or pressure of the hose exceeds the designed working temperature or design working pressure;
- The hose connection does not meet the standard, and the quality of the buckle is unqualified;
- Poor operating conditions, hose outer rubber layer is polluted and corroded (such as spraying paint), mechanical damage, etc.;
- During transportation and handling, handle with care, avoid dragging on rough and sharp surfaces, and do not bend or squeeze them;
- The storage time of hoses and hose assemblies should be as short as possible. When the storage time is long, it is better to check and test the storage;
- The storage temperature should be between 0 ºC and 35ºC, preferably controlled at about 15ºC, and the relative humidity should not exceed 65%. Avoid direct sunlight and artificial light sources. Use red, orange or white objects to cover the windows in storage areas;
- The storage site shall avoid the generation of ozone, electromagnetic field and heat source. Coil hose or hose assembly should be stored flat to avoid deformation caused by super high stacking. Hose suspension is not recommended.
Exhibitions
BAUMA CTT RUSSIA 2021
International Exhibition Construction Equipment & Technologies

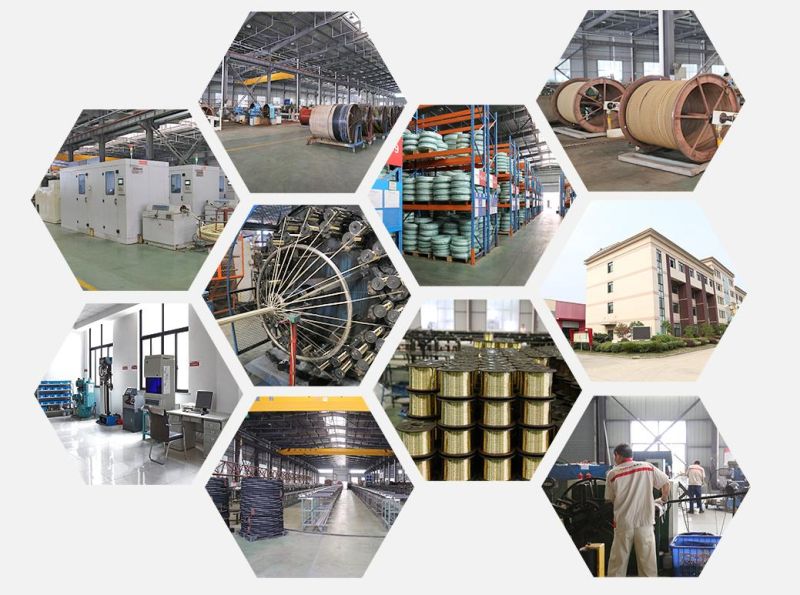

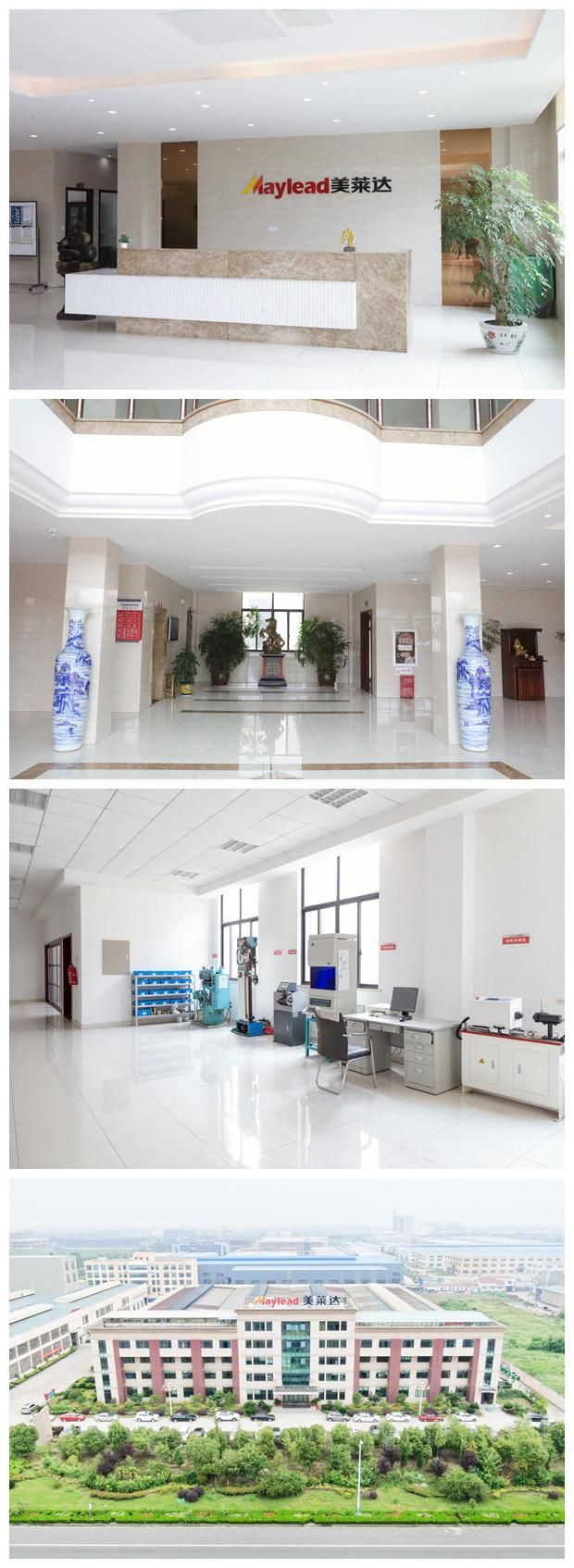

Our Factory
With the company development, MAYLEAD invested more than 12 million us dollars to build the new factory in Nantong Haimen City. It is a beautiful coastal city, which is also within 100km from the international economy center Shanghai.
FAQ ( Frequently Asked Question)
1. Is sample available? Shall I pay for sample or delivery?
The samples are free. Customers pay for the delivery cost.
2. How long will I get my order?
General production time for 1x20 feet container is 10-15 days, for 1x40 feet container 20-25 days.
3. How will my order be packed?
All hose is packed by 2 plies of PVC film, inner is tranparent, outer is color and thick one. (Color can be ordered as customer like). Special packing like Reel and Pallet also available. Fitting is packed by 3 plies, carton, PVC bag and then pallet.
4. What should I do if I find quality problem in using?
12 months Quality Garentee for all of our products. We offer replacement for any defective caused by non-human reasons.
5. Is it possible to visit your factory?
We warmly welcome you to visit our factory at any of your convenient time.
