• Model NO.：EN 853 1SN
• Reinforcement：1 Ply Tensile Steel Braided
• Outer Tube：Neoprene
• Temperature：-40°c~ +100°c
• Length：100m or 50m,Roll
• Surface：Fabric Cloth
• Transport Package：Well Packed by Striped or OPP Fims
• Specification：3,16" to 2"
• Trademark：Passion or as per customer′s request
• Origin：Zhejiang, China
• HS Code：40092100
• Production Capacity：30, 000 Each Month

Overview Product Description

Product Parameters

Specification:

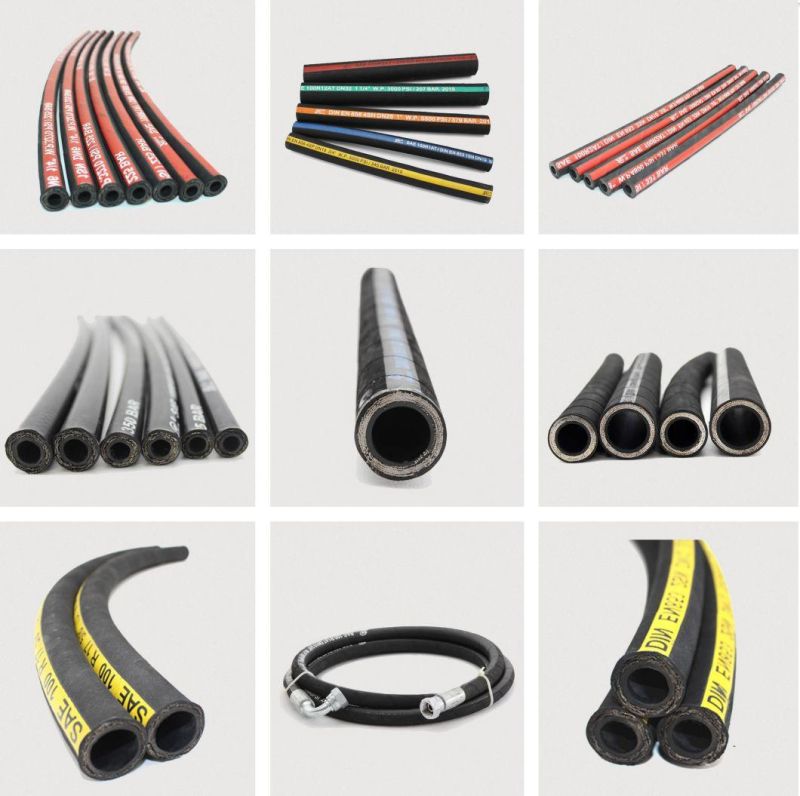

Item CodeInner DiameterOuter DiameterWorking PressureBurst PressureLengthMeasurementWeightinchmmmmbarpsibarpsimcbm/rollkg/mR1-05 3/165.012.025036301001145201000.04250.20R1-06 1/46.414.02253270902130801000.04540.24R1-08 5/168.015.12153120860124801000.04870.28R1-10 3/810.017.51802615721104601000.07350.36R1-13 1/212.520.0160232064092801000.04870.45R1-16 5/816.024.013018905217560500.07840.51R1-19 3/419.028.010515304226120500.06860.65R1-251     25.036.08812803535120500.09490.96R1-321 1/432.043.5639202543680200.1211.25R1-381 1/238.050.1507302012920200.14521.60R1-512     51.063.6405801602320200.21972.20  Detailed Photos



Packaging & Shipping

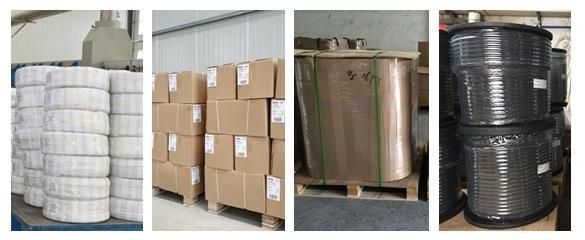

Packaging
Well packed by poly stripes or as your requirement.

Shipping
We ship the goods by express, by air, by sea or according to your requirement.



Workshop

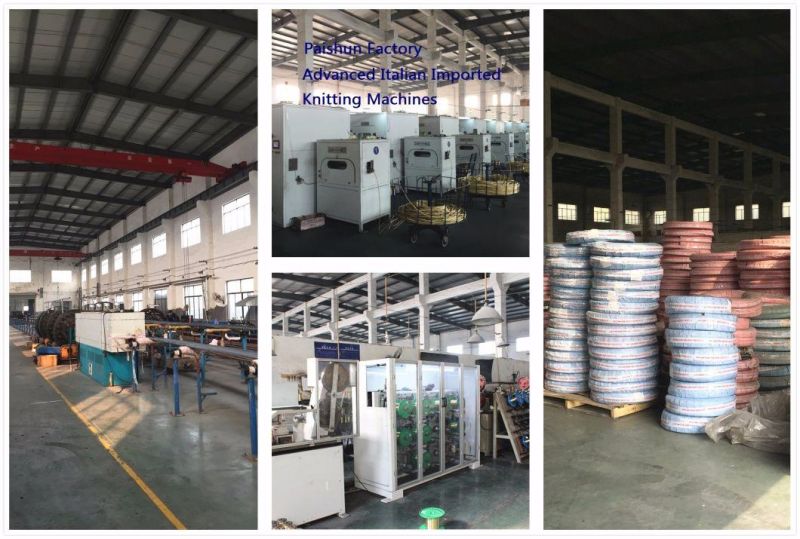

Workshop

We just imported 14 sets of brand new automatic inner hose knitting machines from Italy. The knitting speed is faster, production capacity has been greatly improved, quality is better and more stable.








Testing

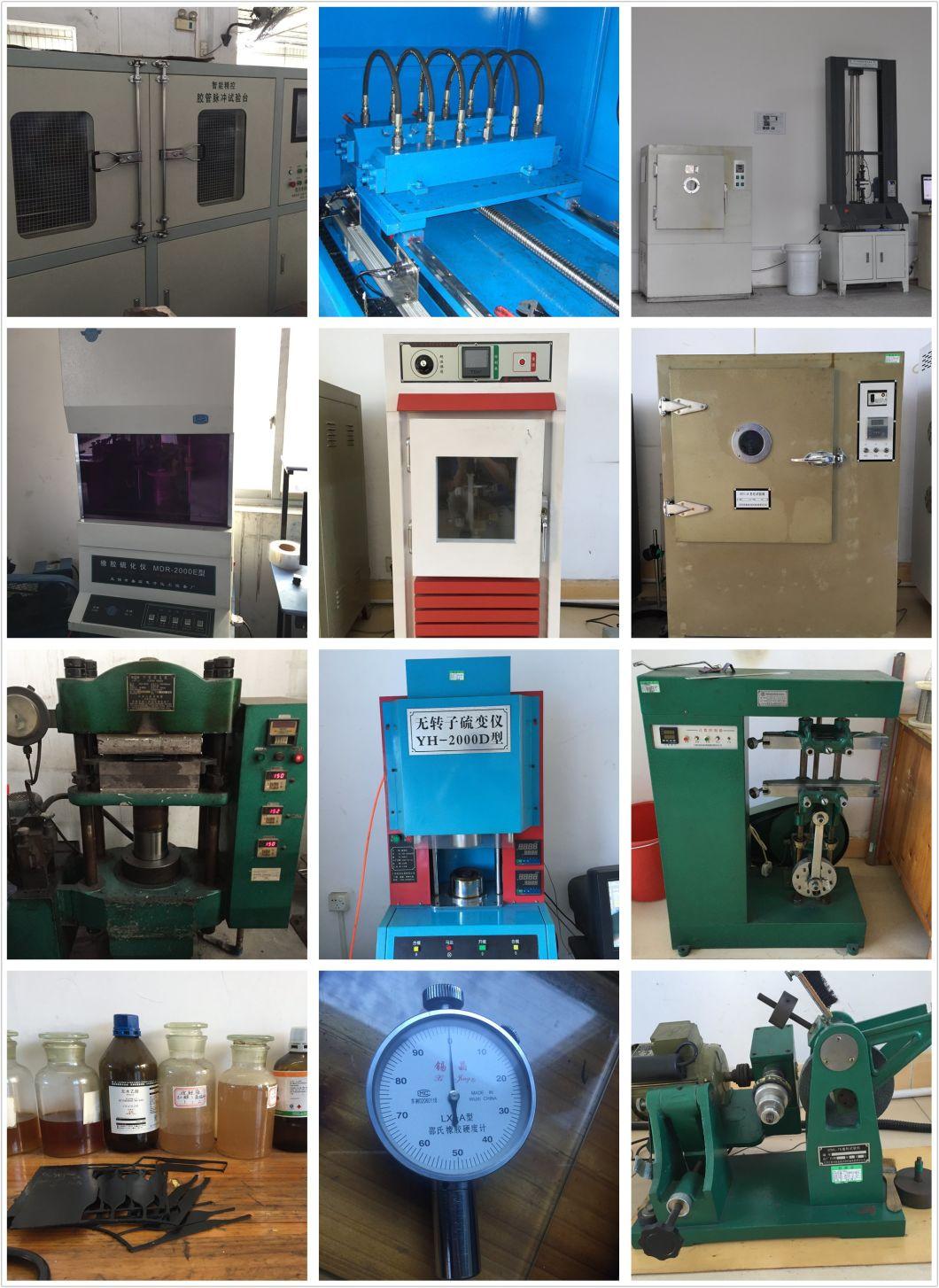

Test Machines

In order to ensure the quality of our hydraulic hoses are good and stable. We test every batch of goods before sent out. Below are some common tests.
1 Working pressure test
All the hoses need to do this test before shipment.
2 Burst pressure test
3 Impulse test
1 wire and 2 wire braided hoses pass the impulse testing of 200,000 times; 4 wire spiral hoses pass the impulse testing of 400,000 times.

We also run other tests such as oil resistance test, ozone resistance test, aging test, etc. The test report can be provided.

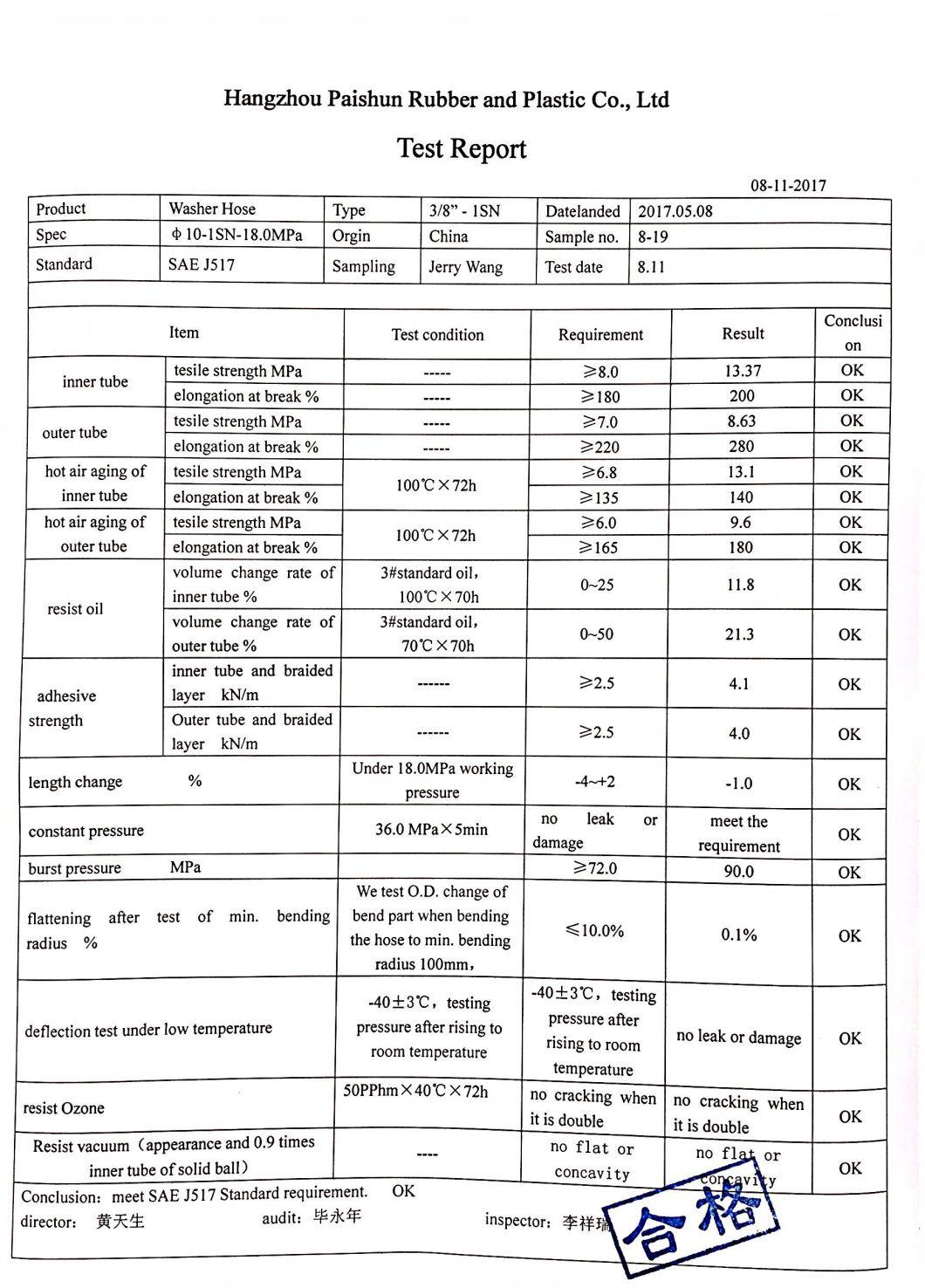

Test Report Sample






Our Service

1. We can provide matching hose connection.

2. We can provide free hose samples.

3. Hydraulic rubber hose is also served.

4. Other sizes can be customized.

5. We can print words on the hose according to your requirement.

6. We can package the goods according to your requirement.

Certifications

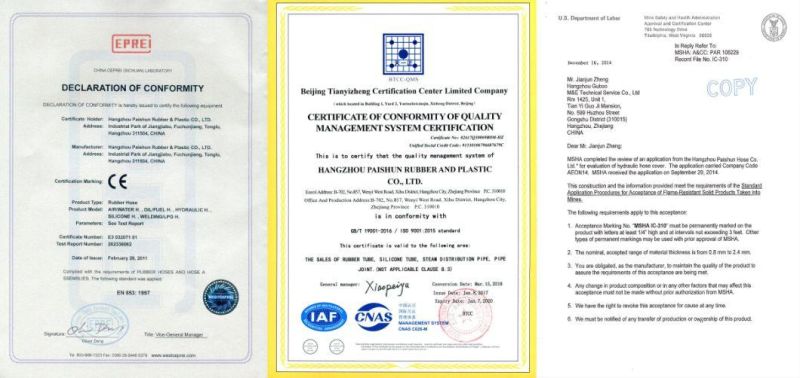

Certification

Paishun has various types of certificates, such as ISO, CE, Rohs, MSHA, etc.



Company Profile

About Paishun

Paishun factory covers a land of over 3 hectares, and the workshops occupy a surface of 25000 square meters. We own complete production lines of the rubber mixing process, cold feeding material extrusion process, microwave vulcanization process, and high-speed braiding process, etc.

We produce mainly the industrial hoses like Air Hose, Water Hose, Oil Hose, Welding Hose, Hydraulic Hose, and Assemblies. Paishun, being a rapidly growing enterprise focusing on the professional production of pure rubber hoses and braided rubber hoses, its yearly production capacity reaches 10 million meters.

Our key policy is "enterprise may thrive with the technology, and may last with good quality". So we put much investment in the research team, and in advanced testing laboratory equipment. We now use a series of tensile testing machine, vulcanization testing device, aging testing chest, pressure testing machines to ensure effective quality control. All these testing machines and related procedures may form a complete quality control system, beginning from the selection of the raw materials till the end step. Thus, we wish our products can satisfy in maximum our customers, and help them to gain more and more market share.


Paishun Exhibition

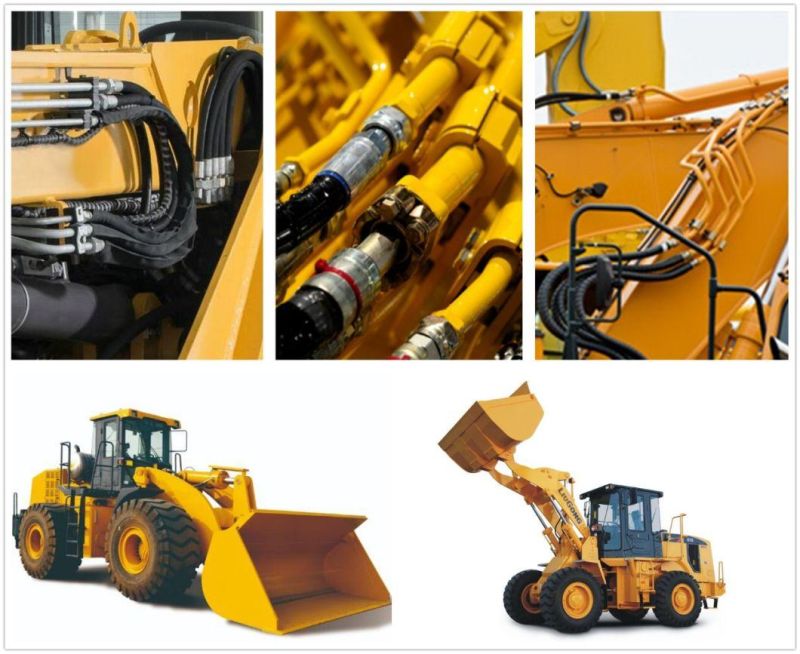

Application
