• Model NO.：T,F,Y,Flat type
• Product Name：Rubber Skirt Board
• Rubber Skirt Board Thickness：15-25mm
• Rubber Skirt Board Wideness：150-300mm
• Conveyor Belt Wideness：650~2400mm
• Working Temperature：-30~70°
• Skirt Board：According to The Request, The Same Long with The C
• Price：Competitive and Reasonable
• Transport Package：According to Your Requirements,
• Specification：As you required
• Trademark：Rongda
• Origin：Hebei, China (Mainland)
• HS Code：1305960520
• Production Capacity：50000meters,Month

Basic Info.

Model NO. T/F/Y/Flat type Product Name Rubber Skirt Board Rubber Skirt Board Thickness 15-25mm Rubber Skirt Board Wideness 150-300mm Conveyor Belt Wideness 650~2400mm Working Temperature -30~70° Skirt Board According to The Request, The Same Long with The C Price Competitive and Reasonable Transport Package According to Your Requirements, Specification As you required Trademark Rongda Origin Hebei, China (Mainland) HS Code 1305960520 Production Capacity 50000meters/Month

Product Description

 Rubber pu sheet in belt sides skirt board for conveyor
Rubber Skirting Board is used mainly in the mining industry as a side skirt on conveyor belt system.
Natural skirting rubber / skirting board is a black natural rubber designed for use as a conveyor skirting or similar application. ( Note: Skirting rubber can also be supplied in shorter lengths and can be cut to custom width strips as required. )
Conveyor system polyurethane skirt rubber board has a double layer of skirting rubber compound from polyurethane and rubber. The inner wear resistant of polyurethane exceeds the wear life of traditional rubber on skirting, whilst outer anti-dust integral molding can adapt to belt vibration and maintain the correct pressure to effectively seal the belt.
Dust Seal Rubber Skrting Board For Belt Conveyor
1. Dual sealing
2. Polyurethane layer: Superior wear resistant
3. Non damage the belt
4. Easy installation and replacement

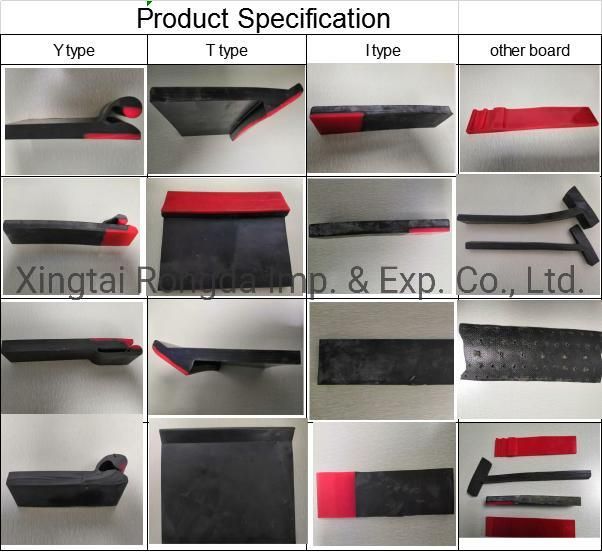

5. T type, Y type and I type ,flat type for choose
6. Short deliver time
7. Custom service / OEM service
Technical Data

Material	Natural Rubber + Polyurethane
Polyurethane Layer	Yes
Model Number	T /Y/E/F/Flat or customized
Thickness	3-30mm
Width	100-450mm
Length/roll	25m/30m or customized
Elongation at break	300%
Working temperature	-30°C-- 70°C
Polyurethane Hardness	75-80 shore A
Rubber Hardness	55-60 shore A
Tensile strength	2.5-6.0Mpa

System No	Thichness.mm	Widthness.mm	Material	Length.M
RD-QY4S-15	15	280/190/180/170/150/120	NR+PU	25M/ROLLER OR OEM
RD-QY4S-16	16	300/250/220/200/190/180/170	NR+PU	25M/ROLLER OR OEM
RD-QY4S-19	19	300/190	NR+PU	25M/ROLLER OR OEM
RD-QT60--15	15	150	NR+PU	25M/ROLLER OR OEM
RD-QT60--16	16	300/250	NR+PU	25M/ROLLER OR OEM
RD-QT60--18	18	300	NR+PU	25M/ROLLER OR OEM
RD-QI008-8	8	300/250	NR+PU	25M/ROLLER OR OEM
RD-QI0010	10	300/250/200	NR+PU	25M/ROLLER OR OEM
RD-QI0012	12	300/250	NR+PU	25M/ROLLER OR OEM
RD-QI0015	15	300/200/180/150/120	NR+PU	25M/ROLLER OR OEM
RD-QF1006	10-06	200	PU	25M/ROLLER OR OEM
RD-QE	OEM	OEM	NR OR PU	25M/ROLLER OR OEM

More competitive price, high quality is our pursue.

Welcome contact us when you are in need!
