• Model NO.：textile hose
• Length：100meters,Roll
• Feature：Textile Braid
• OEM：Yes
• MOQ：Yes
• Custom：Yes
• Delivery：Within 7 Days
• Match Fitting：Supply
• Transport Package：Plastic Bags & Carton Box
• Specification：3,16 inch to 3 inch
• Trademark：JJR
• Origin：Tianjin
• HS Code：4009210000
• Production Capacity：10000meter,Month

  Hose ID Hose OD  Working Pressure  Burst Pressure Minimum Bend Radius Weight inch mm mmMPa  PsiMPa  Psimm  kg/m 3/16 4.8 13.220.7  300082.7  12000 76 0.24 1/4 6.4 14.8 20.7 3000 82.7 12000 86 0.29 5/16 7.9 17.1 15.5 2250 62.1 9000 102 0.36 13/32 10.3 19.5 13.8 2000 55.2 8000 117 0.48 1/2 12.7 23.4 12.1 1750 48.3 7000 140 0.55 5/8 15.9 27.4 10.3 1500 41.4 6000 165 0.65 7/8 22.2 31.4 5.5 800 22.1 32000 187 0.69 1-1/8 28.6 38.1 4.3 625 17.2 25000 229 0.84 1-3/8 35.0 44.4 3.4 500 13.8 2000 267 1.03 1-13/16 46 56.4 2.4 350 9.6 14000 337 1.26 2-3/8 60.5 73.0 2.4 350 9.6 14000 610 2.0 3 76.5 90.5 1.4200  5.6800  840 3.0

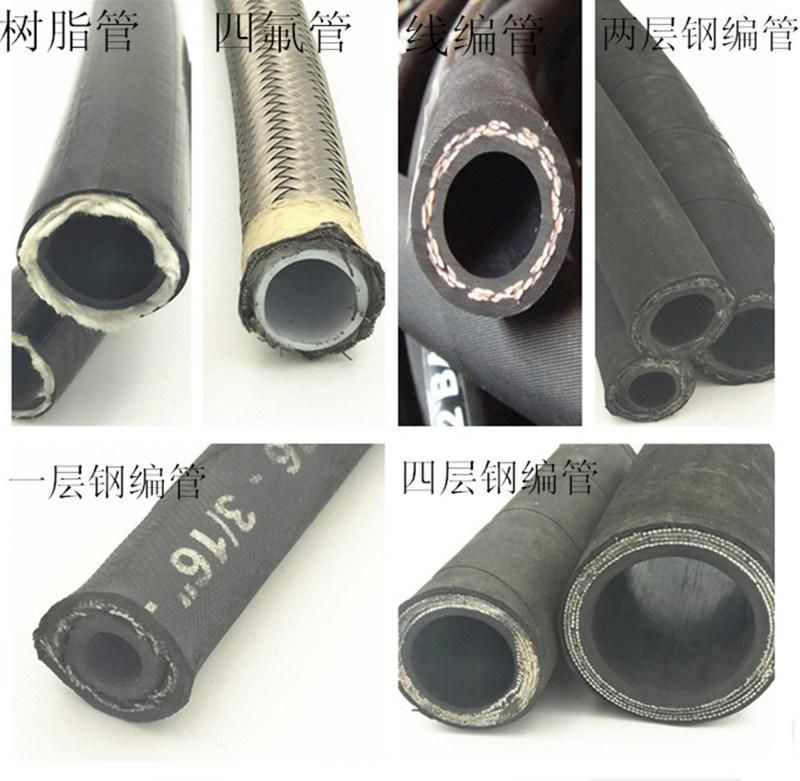

Supply other types hose:

1.Steel wire braided hydraulic hose
SAE 100 R1 AT / DIN EN853 1SN
SAE 100 R2 AT / DIN EN853 2SN
DIN EN857 1SC
DIN EN857 2SC
SAE 100 R16
SAE 100 R17
SAE 100 R5

2.Steel wire spiral hydraulic hose
DIN EN856 4SP
DIN EN856 4SH
SAE 100 R12
SAE 100 R13
SAE 100R15

3.Textile braided hydraulic hose
SAE 100 R3
SAE 100 R6

4.Rubber resin hose
SAE 100 R7 / DIN EN855 R7
SAE 100 R8 / DIN EN855 R8

5.Steam hose
Wire braided steam hose

6.PTFE Hose
SAE 100 R14

How to order:

1.Let us to know the products you need.
2.Negotiated price
3.After both you and us agree the price, we will send you PI with our company seal with order informaiton and payment information.
4.After get your perpayment, we will delivery the goods within the time we agree in the PI.
5.After we show you the scan of the B/L, you should pay our balance.
6.If you have any problem after you got the goods, you can contact with us at any time you want.
