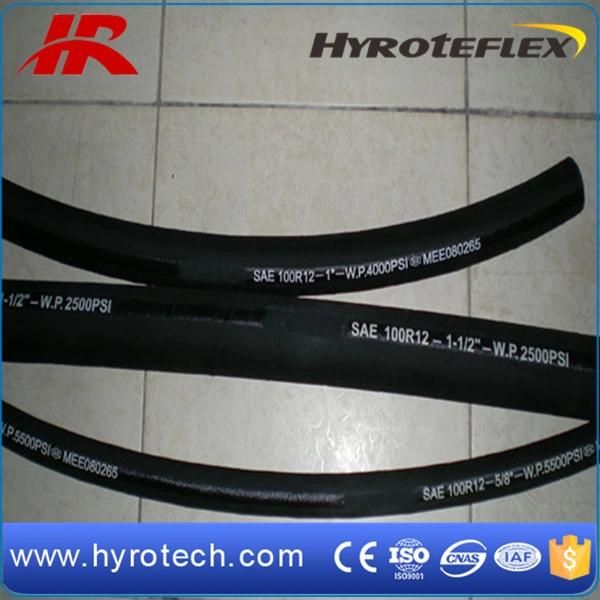

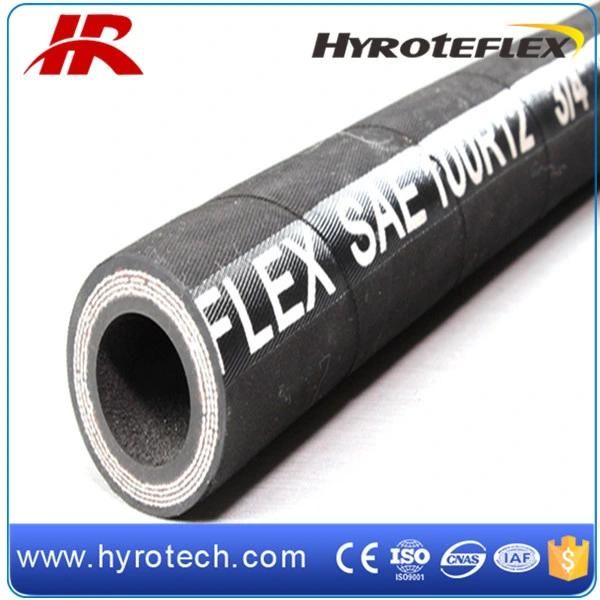

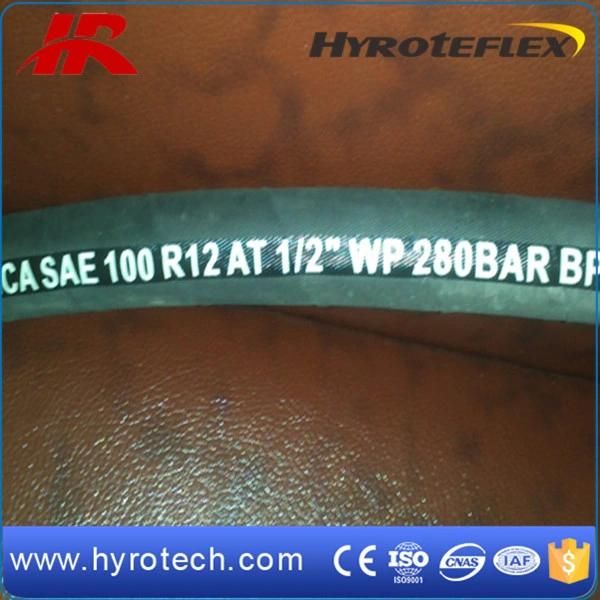

Hydraulic Hose SAE 100 R12
Qingdao Hyrotech Rubber & Plastic Products Co., Ltd.- Material：Nitrile Rubber
- Capability：Rubber Oil Hose
- Color：Black
- Model Number：Rubber Hose SAE 100r12 1′′
- Size：3,8" ~ 2"
- Reinforcement：4 High Tensile Steel Wire Spiral Layers
Base Info
- Model NO.：3,4′′
- Cover：Abrasion and Weather Resistant Synthetic Rubbe
- Length：20-40m as Request
- Temperature：-40 to 100celsius
- Certificate：ISO 9001:2008
- Business Type：Manufacture
- Transport Package：Plastic Woven Belt, Wooden Box, as Your Required
- Specification：SAE, DIN
- Trademark：Hyrotech,Hyroflex
- Origin：Qingdao, China
- HS Code：40092100
- Production Capacity：5000000 Meter,Meters , Month
Description
DNHose I.D Wire O.D Hose O.D Working Pressure Burst Pressure Minimum Bend Radius Weight Length inch mm mm mm MPa psi MPa psi mm kg/m metres 10 3/8 9.5 17.5 21.4 44.5 6450 180.0 26000 180 0.78 20 to 40 13 1/2 12.7 20.2 24.0 41.5 6000 166.0 24000 230 0.89 20 to 40 16 5/8 15.9 23.8 28.2 35.0 5000 140.0 20000 250 1.11 20 to 40 19 3/4 19.0 28.2 32.2 35.0 5000 140.0 20000 300 1.59 20 to 40 25 1 25.4 35.5 39.7 28.0 4000 112.0 16000 340 2.02 20 to 40 32 1 1/4 31.8 46.0 50.8 21.0 3000 84.0 12000 460 3.32 20 to 40 38 1 1/2 38.1 52.4 57.7 18.5 3650 74.0 10800 560 3.70 20 to 40 51 2 50.8 65.3 69.6 16.5 2360 66.0 9600 660 5.47 20 to 40
