Fabric Braided Oil Rubber Hose (Cloth Surface)
Hangzhou Haikuo Rubber and Plastic Products Co., Ltd.- Material：Synthetic Rubber
- Capability：Rubber Oil Hose
- Color：Black
- Model Number：SAE 100 R2at
- I.D：3,16"-2"
- Surface：Cloth Surface
Base Info
- Model NO.：Fabric Braided Oil Rubber Hose (Cloth Surface)
- Reforcement：High Quality Steel Wire
- Transport Package：Woven Bag Wrapped
- Trademark：High-Qua or OEM
- Origin：Zhejiang Hangzhou
- Production Capacity：100000 Meter,Meters Per Month
Description
DNHose I.D Wire O.D Hose O.D W.P B.P MBR Weight Length inch mm mm mm Bar Bar mm kg/m metres 5 3/16 4.8 9.5 11.8 250 1000 89 0.19 50/100 6 1/4 6.4 11.1 13.4 225 900 102 0.21 50/100 8 5/16 7.9 12.7 15 215 850 114 0.24 50/100 10 3/8 9.5 15.1 17.4 180 720 127 0.33 50/100 13 1/2 12.7 18.3 20.6 160 640 178 0.41 50/100 16 5/8 15.9 21.4 23.7 130 520 203 0.45 50/100 19 3/4 19.0 25.4 27.7 105 420 241 0.58 50 25 1 25.4 33.3 35.6 88 350 305 0.88 50 32 1 1/4 31.8 40.5 43.5 63 250 419 1.23 20 1 1/2 ... 2 ... ... ...
Product Features
1. Application: Medium pressure hydraulic applications including mobile, machine tool and agricultural applications, using petroleum or water-based hydraulic fluids.
2. Process feature: Refrigeration technique
3. Inner tube: Nitrile
4. Reinforcement: One or Two braids of high-tensile steel wire
5. Cover compound: Neoprene
6. Temperature range: -40°F 212°F; -40ºC~121ºC
7. Color available: Black, grey, blue, yellow, red, etc
8. Surface: Smooth and cloth
Specifications
Product Features
1. Application: Medium pressure hydraulic applications including mobile, machine tool and agricultural applications, using petroleum or water-based hydraulic fluids.
2. Process feature: Refrigeration technique
3. Inner tube: Nitrile
4. Reinforcement: One or Two braids of high-tensile steel wire
5. Cover compound: Neoprene
6. Temperature range: -40°F 212°F; -40ºC~121ºC
7. Color available: Black, grey, blue, yellow, red, etc
8. Surface: Smooth and cloth
Specifications

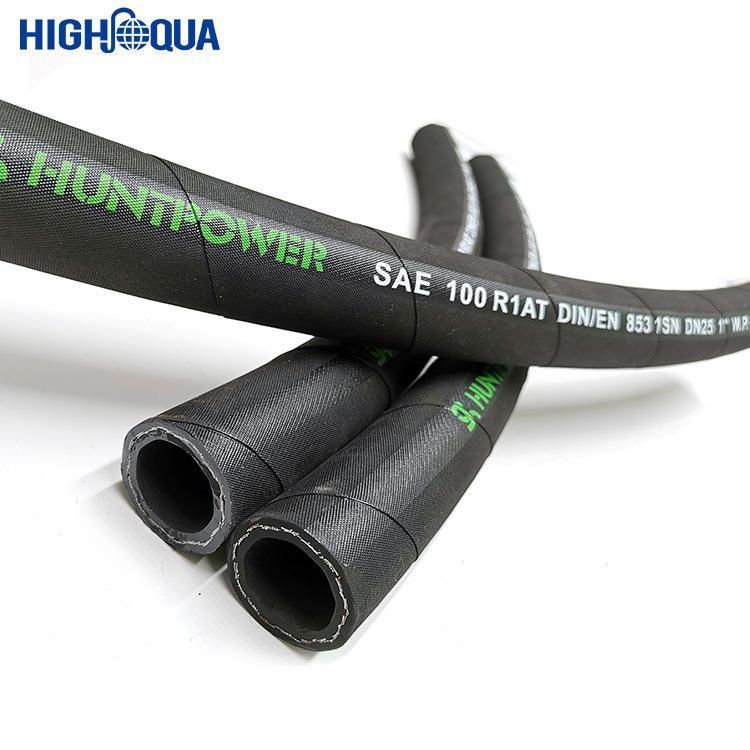

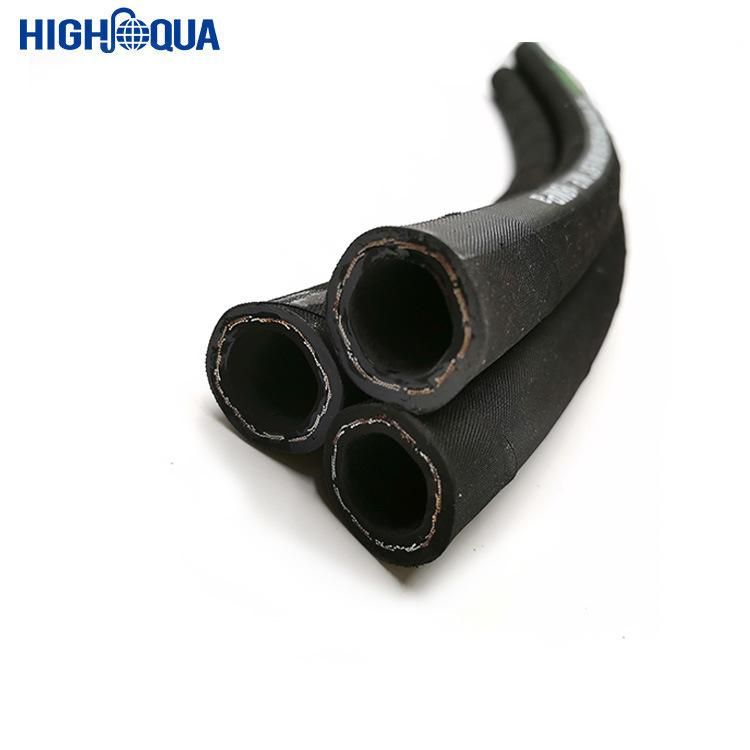

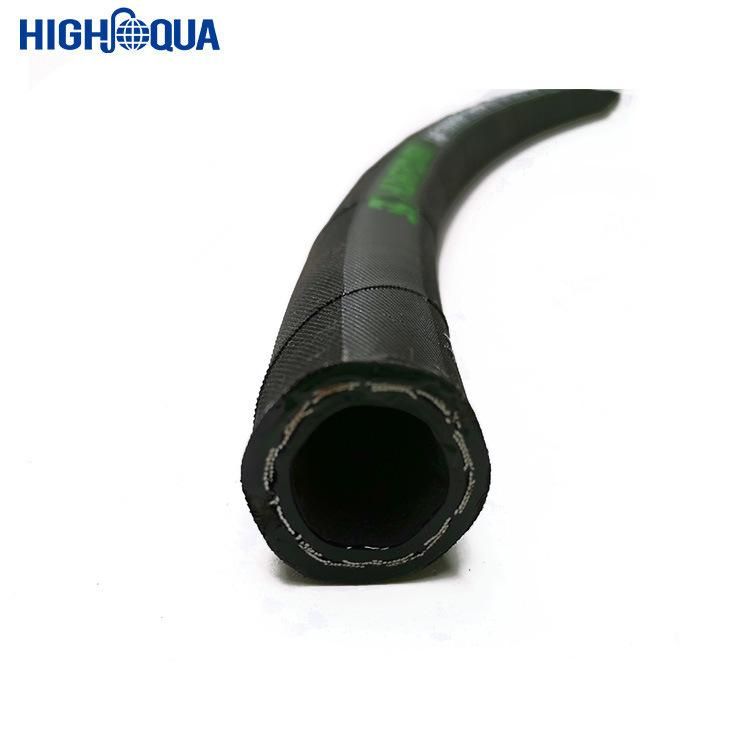

Product Show of hydraulic rubber hose
Quality Assurance:
Each production process would be controlled strictly. The material as export standard.
Packaging&Shipping
Packaging Details: By transparent plastic film and woven belt or your request.
Delivery Time: We are responsible for shpping goods to delivery port on time.
Exhibition show
If you have any other questions, please do not hesitate to contact us!
