• Model NO.：HY1002
• Trademark：hyrubbers
• Origin：China
• HS Code：40093100
• Production Capacity：20000m,day

Basic Info.

Model NO. HY1002 Trademark hyrubbers Origin China HS Code 40093100 Production Capacity 20000m/day

Product Description

Smooth or Wrapped surface textile reinforced rubber  hose

1. Superior hight quality
2. W. P: 20Bar 300PSI
     B.P : 60Bar
3. Smooth/cloth surface option


Product Features
Material: Inner tube is made of SBR or NR; Or SBR&NR blend; Outer cover is made of SBR or NR; Or SBR&NR blend
Structure:
1. Common type: Interior lining +Strengthen lining +Exterior lining.
2. Strength type (three lining and two weaving fiber): Add middle rubber lining and a weaving fiber base on the common type.
Color: Black, red, blue, green, yellow, white, grey
Temperature: -25º C— 70º C

Product Application
For the transportation of high pressure air or water liquid.

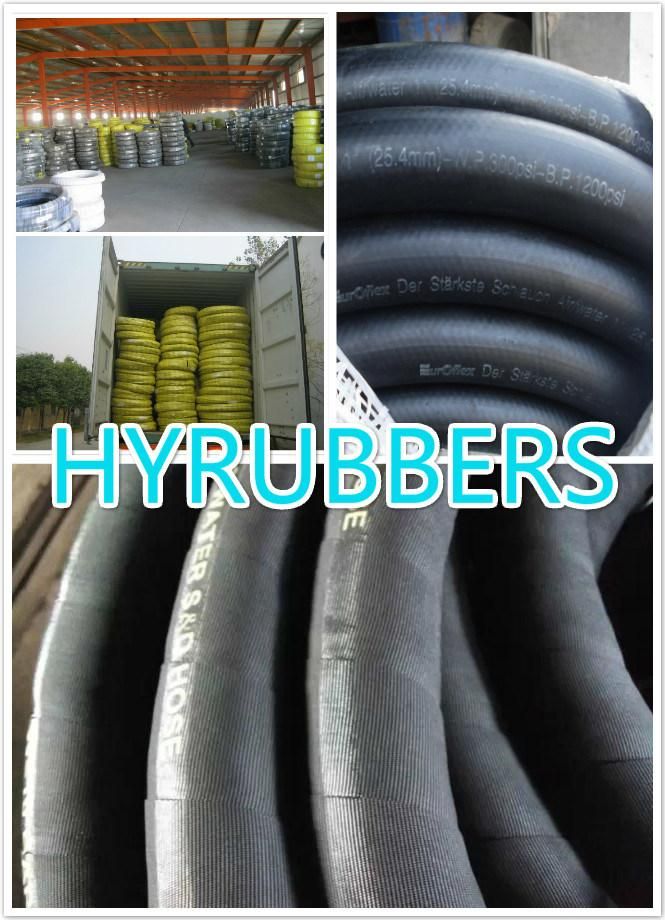

Product Show of Rubber Air Hose

ID (mm)	ID (inch)	Wall (mm)	WP (bar)	BP (bar)	Radius (mm)	Weight (kg/m)
6	1/4	3,5	16 / 20	50 / 60	35	0.17
8	5/16	3,5	16 / 20	50 / 60	50	0.25
10	3/8	3,5	16 / 20	50 / 60	60	0.29
13	1/2	4,0	16	48	60	0.37
13	1/2	5,0	20	60	70	0.42
16	5/8	4,0	16	48	80	0.45
16	5/8	4,5	20	60	90	0.48
19	3/4	5,0	16	48	110	0.58
19	3/4	5,5	20	60	125	0.60
25	1	5,0	20	48	130	0.72
25	1	5,5	16	60	150	0.83
32	1-1/4	6,0	10	30	230	0.94
38	1/1-2	6,0	10	30	270	1.08
50	2	7,0	10	30	400	1.80
