High Pressure Flexible Steel Wire Braided Rubber Reinforced Hydraulic Hose
Qingdao Eastop Plastic Product Co., Ltd.- Material：Rubber
- Capability：Carry Oil, Water, Air etc.
- Color：Color
- Product Name：Hydraulic Hose
- Specifications：1,4′′ to 3′′
- Inner Diameter：6.4mm to 76mm
Base Info
- Model NO.：hydraulic hose
- Wall Thickness：3.35mm to 6.5mm
- Length：65FT, 100FT, 200FT or Customized
- Wp：2MPa-22.5MPa
- Min. Burst Pressure：8MPa-90MPa
- Weight：0.25kg,M-2.74kg,M
- Min. Bend Radius：100mm-880mm
- Working Temperature：-40ºC to 100ºC
- Transport Package：Woven Bag and Plastic Film.
- Specification：1,4′′ to 3′′
- Trademark：ET
- Origin：Shandong, China (Mainland)
- HS Code：4009110000
- Production Capacity：500000 Meters Per Month
Description
Weight(In.) (mm) (In.) (mm) (psi) (MPa) (psi) (MPa) (In.) (mm) kg/m lb/ft 1/4 6.4 0.52 13.1 3275 22.5 13100 90 3.94 100 0.25 0.168 5/16 7.9 0.58 14.7 3125 21.5 12500 85 4.53 115 0.31 0.208 3/8 9.5 0.67 17.1 2600 18 10400 72 4.92 125 0.36 0.242 1/2 12.7 0.8 20.3 2325 16 9300 64 7.09 180 0.45 0.302 5/8 15.9 0.92 23.4 1900 13 7600 52 7.87 200 0.52 0.349 3/4 19.1 1.08 27.4 1525 10.5 6100 42 9.45 240 0.65 0.437 1 25.4 1.4 35.5 1275 8.8 5100 35 11.81 300 0.91 0.611 1 1/4 31.8 1.69 43 925 6.3 3700 25 16.54 420 1.3 0.874 1 1/2 38.1 1.95 49.5 725 5 2900 20 19.69 500 1.7 1.142 2 50.8 2.48 63 600 4 2700 16 24.8 630 2 1.344 2 1/2 63.8 3.03 77 360 2.5 1600 10 29.92 760 2.56 1.72 3 76 3.46 88 290 2 1160 8 34.65 880 2.74 1.841

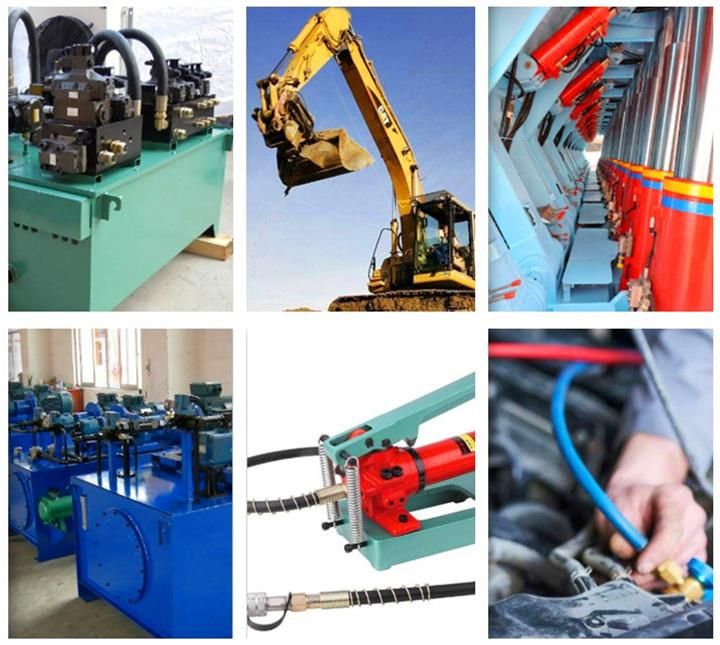

Application:
It is suitable to carry hydraulic fluids, such as hydraulic oil, fuel oil, lubricants, emulsion, glycol and water etc.
Application:
It is suitable to carry hydraulic fluids, such as hydraulic oil, fuel oil, lubricants, emulsion, glycol and water etc.
