• Model NO.：AS568
• Production Period：Within 15 Days
• Pressure Data：0-300MPa(According to Material)
• Color and Dimension：Accept Customized Products
• Dimension Standard：As568
• Transport Package：Carton,Bag
• Specification：all series
• Trademark：morgan
• Origin：China
• HS Code：4016931000
• Production Capacity：100000PCS,Month

Temperature-60°C / +200°CPressure*Speed*MediasThe majority of liquid, gaseous or chemical product fluids depending on the type of material selected. Refer to our fluids-materials compatibility guide.Applications
O-Rings are used in a variety of fields: they are either used as sealing elements or as energizing elements for hydraulic slipper seals and wipers. Thus, the O-Ring is basically used in every field of industry including aerospace, automotive or general engineering. Today, O-rings are one of the most common seals used in machine design because they are inexpensive, easy to make, and reliable and have simple mounting.
Materials
Morgan O-rings Material Includes Nitrile rubber, fluorine rubber, ethylene propylene rubber, neoprene, chloroprene rubber, silicone rubber and so on.
NBR (Nitrile Butadiene Rubber)
Nitrile rubber (NBR) is the general term for acrylonitrile-butadiene copolymer. The ACN content can vary between 18% and 50%. While the acrylonitrile content is important, the resistance to oil and fuel is more so. Conversely, the elasticity and compression set are not as good. The NBR has good mechanical properties and good wear resistance. However, its resistance to atmospheric agents and the ozone is relatively low.Chemical resistanceAliphatic hydrocarbons (propane, butane, petroleum, diesel fuel)
Mineral oils and greases
Fire-resistant fluids (HFA, HFB and HFC)
Diluted acids, alkaline and saline solutions for low temperatures
Water (up to +100°C max)Compatibility issueFuels with a high aromatic content
Aromatic hydrocarbons
Chlorinated hydrocarbons (trichlorethylene)
Polar solvents (ketone, acetone, acetic acid, ethylene-ester)
Strong acids
Glycol-based brake fluids
Atmospheric and ozone agentsTemperature range-30°C / +100°C (short-term peak at +120°C)
-40°C / +100°C with special NBRsChemical resistanceMineral oils and greases, ASTM n°1, IRM 902 and IRM 903 oils.
Fire-resistant liquids (HFD)
Silicone oils and greases
Mineral and vegetable oils and greases
Aliphatic hydrocarbons (propane, butane, petroleum)
Aromatic hydrocarbons (benzene, toluene)
Chlorinated hydrocarbons (trichlorethylene)
Petrol (including high alcohol content)
Atmospheric and ozone agentsCompatibility issueGlycol-based brake fluids
Ammoniac gas
Organic acids with a low molecular weight (formic and acetic acids)Temperature range-20°C / +200°C (short-term peak at +230°C)
-40°C / +200°C with special FKMsChemical resistanceHot water and steam up to +150°C
Glycol-based brake fluids (Dot 3 & 4) and silicone-based brake fluids (Dot 5)
Organic and inorganic acids
Cleaning agents, sodium and potassium alkalis
Hydraulic fluids (HFD-R)
Silicone oils and greases
Polar solvents (alcohols, ketones and esters)
Atmospheric and ozone agentsCompatibility issueMineral oils and greases
Hydrocarbons
Low impermeability to gasTemperature range-45°C / +150°C (short-term peak at +175°C)Chemical resistanceAliphatic hydrocarbons
Mineral and vegetable oils and greases
Fire-resistant fluids (HFA, HFB and HFC)
Diluted acids, saline solutions and bases for low temperatures
Water and steam up to +150°C
Atmospheric and ozone agentsCompatibility issueChlorinated hydrocarbons
Polar solvents (ketones, esters and ethers)
Strong acidsTemperature range-30°C / +150°C (short-term peak at +160°C)
-40°C / +150°C with special HNBRsChemical resistanceAnimal and vegetable oils and greases
Moderate water temperature
Diluted saline solutions
Atmospheric and ozone agentsCompatibility issueSuperheated steam up to +120°C
Chlorinated hydrocarbons with a low molecular weight (trichlorethylene)
Aromatic hydrocarbons (benzene, toluene)Temperature range-60°C / +200°C (short-term peak at +230°C)Chemical resistanceAromatic mineral oils (IRM 903 oil)
Fuels
Aromatic hydrocarbons with a low molecular weight (benzene, toluene)Temperature range-70°C / +175°CChemical resistanceMineral oils (motor oils, gear box oils, ATF oils)
Atmospheric and ozone agentsCompatibility issueGlycol-based brake fluids (Dot 3 & 4)
Aromatic and chlorinated hydrocarbons
Water and steam
Acids, alkalis and aminesTemperature range-25°C to + 150°C (short-term peak at +160°C)
-35°C / +150°C with special ACMsChemical resistanceCoolants
Aggressive mineral oils
Atmospheric agents
WaterCompatibility issueAromatic solvents
Strong acids
Brake fluids
Gearbox oils
ATF oilsTemperature range - 40°C à + 150°CChemical resistanceParaffinic mineral oils
Silicone oils and greases
Water and water-based solvents for use at low temperatures
Refrigerant fluids
Ammoniac
Carbon dioxide
Atmospheric and ozone agentsLimited chemical resistanceNaphthenic mineral oils
Aliphatic hydrocarbons (propane, butane, petroleum)
Glycol-based brake fluidsCompatibility issueAromatic hydrocarbons (benzene)
Chlorinated hydrocarbons (trichlorethylene)
Polar solvents (ketone, acetone, acetic acid and ethylene-ester)Temperature range-40°C / +100°C (short-term peak at +120°C)Chemical resistanceAliphatic and aromatic hydrocarbons
Polar solvents (ketones, esters, ethers)
Organic and inorganic acids
Water and steam
High-vacuum systemsProblème de compatibilitéCoolants (R11, R12, R13, R113, R114, etc.)
PFPETemperature range-15°C / +320°CCharacteristics/MaterialsACMAEMCREPDMFFKMFKMFVMQHNBRNBRVMQResistance to abrasion2322424224Acid resistant4322113133Resistance to chemicals4221111222Resistance to cold4222342222Dynamic properties3332324124Electrical properties3332141331Resistance to fire4424112443Resistance to heat1122111121Sealing water1122224224Resistance to oil1324112112Resistance to ozone1121111241Resistance to tearing2331434224Tensile strength3221213124Resistance to water / steam4431233123Resistance to atmospheric agents1111111231 1. excellent properties    2. Good properties    3. Average properties    4. Poor properties
Chemical compatibility
A "Chemical compatibility guide" catalogue can be downloaded from the Literature section. You can also use our online "Chemical compatibility" tool free of charge.
These two tools enable you to measure the behaviour of our materials that come into contact with the majority of existing fluids. The data displayed is the result of rigorous testing at the ambient temperature and takes previous publications into consideration. Test results are not fully representative because of the specific features of your application. The tests performed actually do not consider additives and impurities that may exist under actual conditions of use, nor the potential elevation of temperatures. Other parameters can also alter the behaviour of our materials, such as the hardness, persistence, abrasion, etc. We therefore recommend performing your own tests to verify the compatibility of our materials depending on your specific application. Our technical team can provide you with any additional information.

o ring sizes:

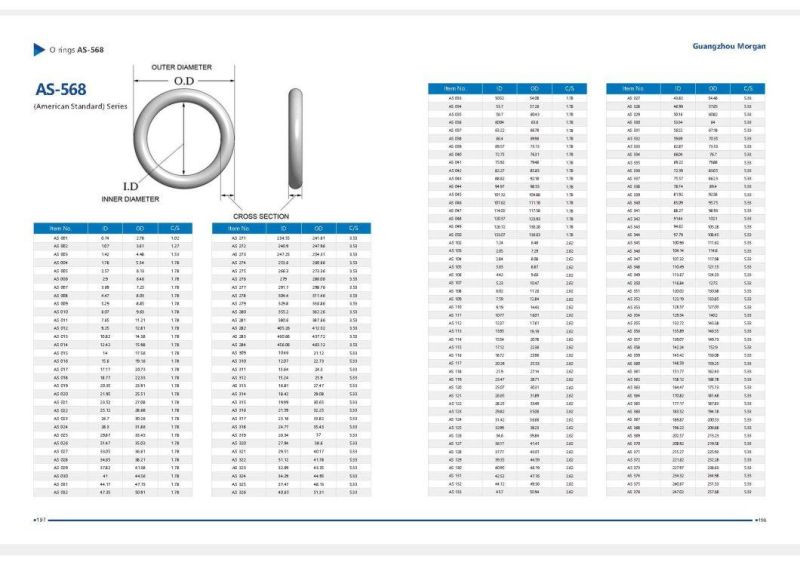

The o ring sizes are specified by the inside diameter and the cross section diameter. Morgan Rubber O-rings are manufactured according to metric and imperial international standards such as GB3452.1-92, AS 568B, DIN ISO 3601 and JIS standard. Morgan seals also accept custom sizes of almost any dimension, such as metric o rings, miniature O-rings, special O-rings with large dimensions and continuously moulded and spliced. The following is the o ring size chart of AS568 standard.

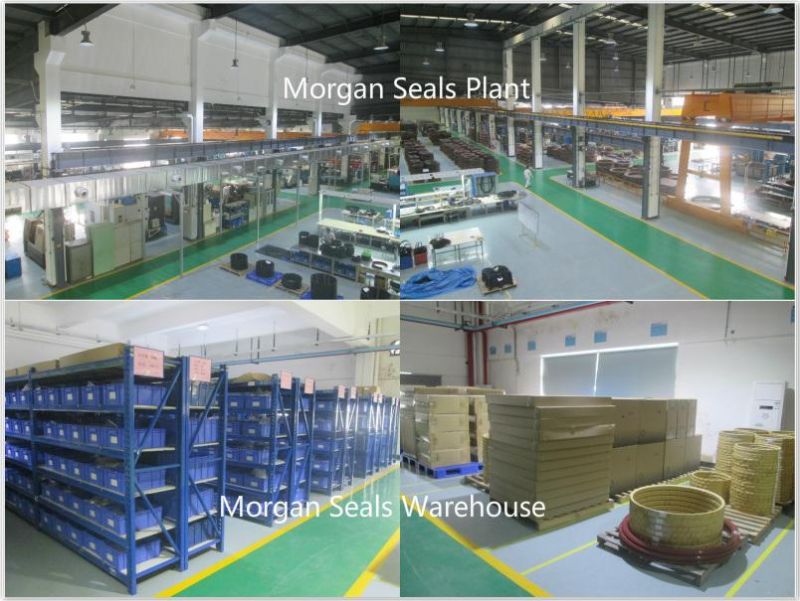

Guangzhou Morgan Seals Co., Ltd. has the biggest vulcanizing machine(4000T) and different kinds of seal moulds. So for the non-standard o ring, oil seals, hydraulic seals, please do not hesitate to contact with us. The following is the the picture Morgan Production Line and Warehouse
