Abrasion Resistant Hose Hydraulic Hose High Pressure Rubber Hose
Tianjin Hengyong Hydraulic Technology Co., Ltd.- Material：Nitrile Rubber
- Capability：Rubber Oil Hose
- Color：Black
- Match Fitting：Supply
- Hose Assembly：Supply
- OEM：Ok
Base Info
- Model NO.：R2 hose
- Mini Order：Ok
- Customized：Ok
- Drawing：Accept
- Delivery：Within 7 Days
- Transport Package：Plastic Bags & Carton Box
- Specification：3,8 inch to 2 inch
- Trademark：JJR
- Origin：Tianjin
- HS Code：4009210000
- Production Capacity：50000 Meters Per Half Year
Description
Item Code
Nominal Diameter
Inside
Diameter
(mm)
Reinforcement Diameter
( mm)
Outside Diameter
(mm)
Working
Pressure
Test Pressure
Burst
Pressure
Min.Bend Radius
Weightmm inch min max min max max Mpa Mpa Mpa mm Kg/m 2SN-05 5.0 3/16 4.6 5.4 10.6 11.6 14.1 41.5 83 165 90 0.32 2SN-06 6.3 1/4 6.2 7.0 12.1 13.3 15.7 40.0 80 160 100 0.36 2SN-08 8.0 5/16 7.7 8.5 13.7 14.9 17.3 35.0 70 140 115 0.45 2SN-10 10.0 3/8 9.3 10.1 16.1 17.3 19.7 33.0 66 132 130 0.54 2SN-13 12.5 1/2 12.3 13.5 19.0 20.6 23.0 27.5 55 110 180 0.68 2SN-16 16.0 5/8 15.5 16.7 22.2 23.8 26.2 25.0 50 100 200 0.80 2SN-19 19.0 3/4 18.6 19.8 26.2 27.8 30.1 21.5 43 85 240 0.94 2SN-25 25.0 1 25.0 26.4 34.1 35.7 38.9 16.5 32.5 65 300 1.35 2SN-31 31.5 1.1/4 31.4 33.0 43.3 45.7 49.5 12.5 25 50 420 2.15 2SN-38 38.0 1.1/2 37.7 39.3 49.6 52.0 55.9 9.0 18 36 500 2.65 2SN-51 51.0 2 50.4 52.0 62.3 64.7 68.6 8.0 16 32 630 3.42

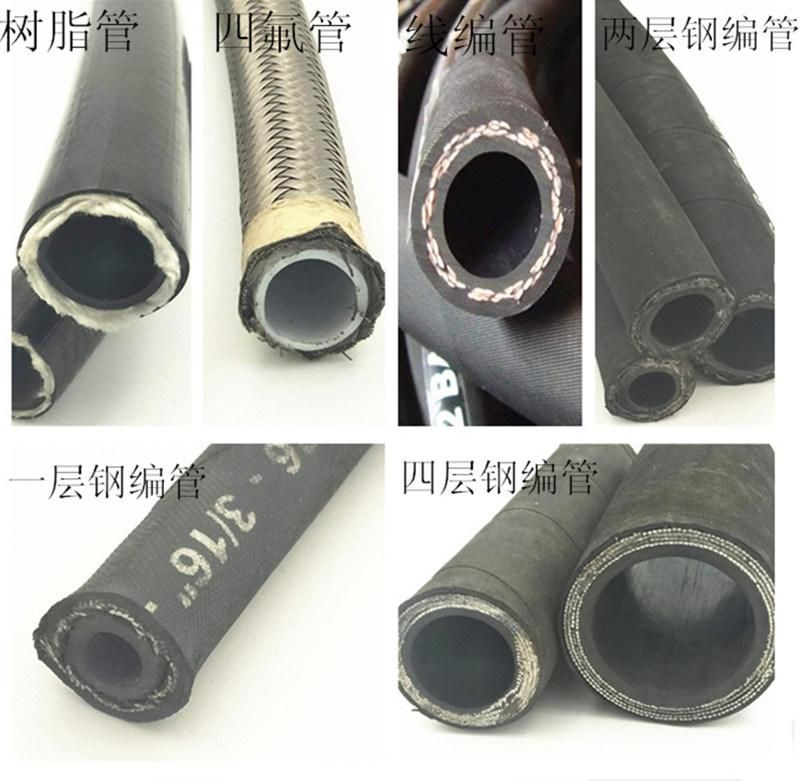

Supply other types hose:
1.Steel wire braided hydraulic hose
SAE 100 R1 AT / DIN EN853 1SN
SAE 100 R2 AT / DIN EN853 2SN
DIN EN857 1SC
DIN EN857 2SC
SAE 100 R16
SAE 100 R17
SAE 100 R5
2.Steel wire spiral hydraulic hose
DIN EN856 4SP
DIN EN856 4SH
SAE 100 R12
SAE 100 R13
SAE 100R15
3.Textile braided hydraulic hose
SAE 100 R3
SAE 100 R6
4.Rubber resin hose
SAE 100 R7 / DIN EN855 R7
SAE 100 R8 / DIN EN855 R8
5.Steam hose
Wire braided steam hose
6.PTFE Hose
SAE 100 R14
Q: Can you produce customized goods ?
A: Yes, the size, diameter and length can be produced as per client's requirements.
Q: Can you print words on products as per client's requirement?
A: Yes, make label according to your exact requirement.
Q: What is your payment terms?
A: T/T, WU or Paypal.
Q: Do you accept OEM?
A: Yes, OEM or ODM are both OK.
Q: Where is your nearest loading port ?
A: Tianjin Xingang, China.
Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned or according to consumer's requests.
