• Model NO.：DB-PPA
• Tensioner：Spring Tensioner
• Belt Width：450~2400mm
• Suitable for Conveyor Belt：Both mechanical or Vulcanized Joint Belt
• Working Condition：Tough Applications with Wet, Sticky Carryback
• Custom：Available
• Transport Package：Packed in Composite Panel
• Trademark：JZDB
• Origin：Jiaozuo, Henan, China
• HS Code：84312000
• Production Capacity：1000000 PCS,Year

Basic Info.

Model NO. DB-PPA Tensioner Spring Tensioner Belt Width 450~2400mm Suitable for Conveyor Belt Both mechanical or Vulcanized Joint Belt Working Condition Tough Applications with Wet, Sticky Carryback Custom Available Transport Package Packed in Composite Panel Trademark JZDB Origin Jiaozuo, Henan, China HS Code 84312000 Production Capacity 1000000 PCS/Year

Product Description

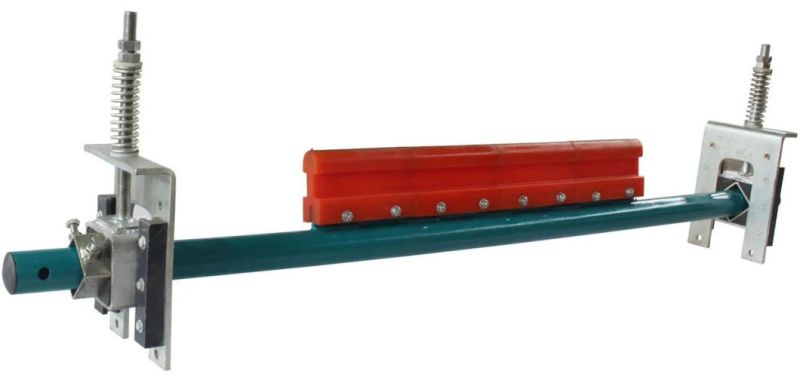

Secondary PU and Alloy Belt Cleaner for Mining Conveyor

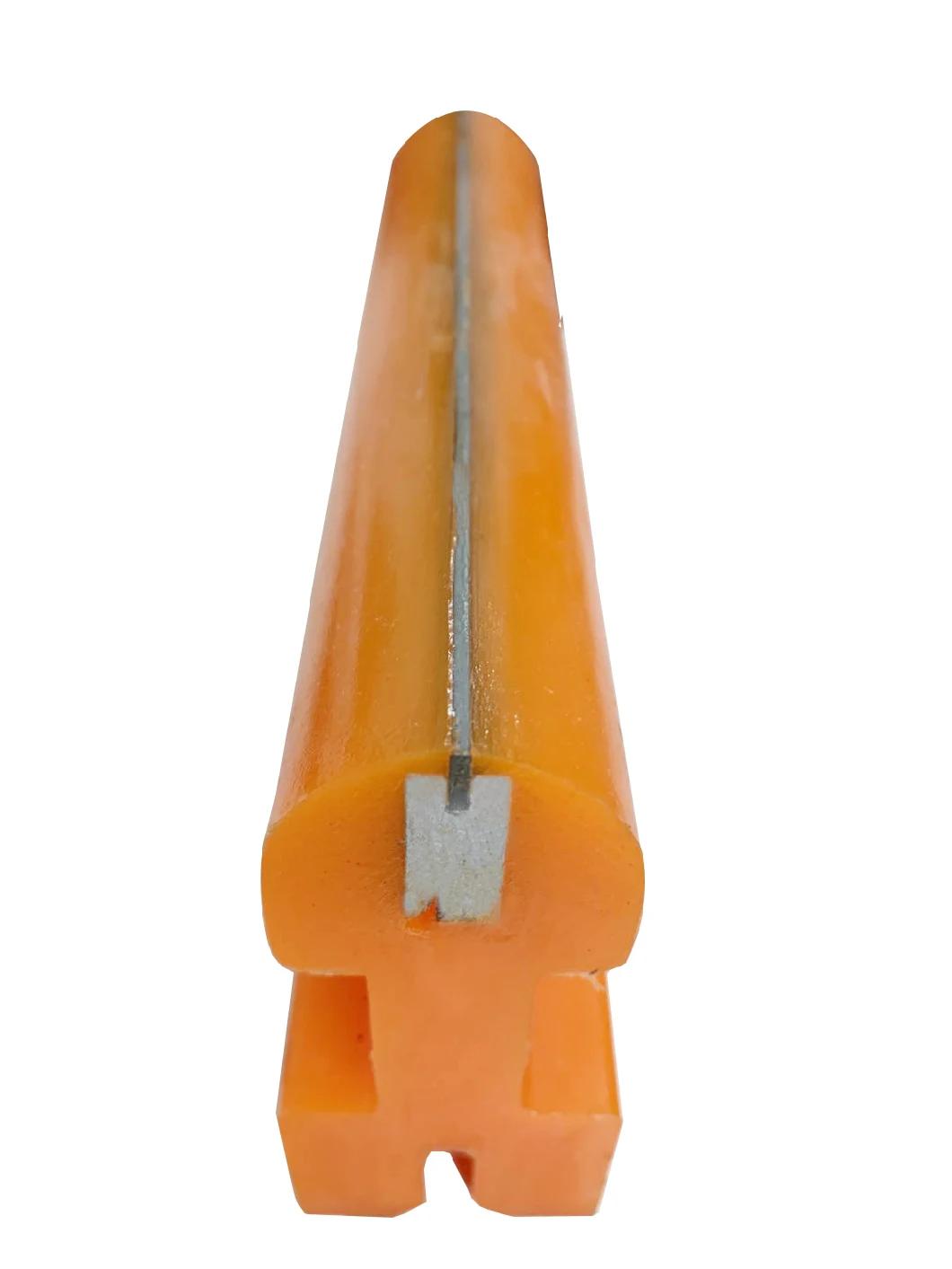

Tungsten carbide blade for secondary alloy belt cleaner.

Description:

Secondary alloy belt cleaner has special blade, consisting of tungsten carbide tips and polyurethane base. Longer service life and lower maintenance time.

Model number:DB-PPA
Material: Polyurethane, Alloy Blade, The self-adjusting spring device, Rubber torsion pad;
Material feature: Wear resistant
Conditon: New
Certificate: ISO9001: 2008
Packing: Plywood or upon customers' request
Lead time: Within 20 days after order confirmed
Payment terms: By T/T
Packing: Wooden case
Packing Dimension: 210cm*28cm*30cm (longth*width*hight)

Technical parameters:
1. Alloy blade - tungsten carbide blade
Spec: 2mm*8mm*100mm (thickness*width*longth);
Hardness: 90-91 HRA;
Density: 14.9-15.0 g/cm³ ;
Wear loss: < 800mm³
2. PU Scraper
Tensile strength: 18KgN/cm² ;
Elongation: Over 40%;
Shore Hardness: 75-80 shore A
Application:
Belt width 450mm-2400mm;
Apply to machinery buckles and vulcanization joints;
Apply to relatively poor working conditions.

Our Advantages:
Outstanding raw materials, advanced fabrication facilities and laboratory.
Talented engineers in researching Polyurethane belt cleaner and scraper for over 20 years.

Commodity	PU inlay Alloy Blade Belt Cleaner (DBPPA)
Delivery time	1 week
Characteristic	Self-adjusting  spring  tensioner  system
Tensile strength	18KgN per cubic centimeter
Hardness	Shore A  75-80
