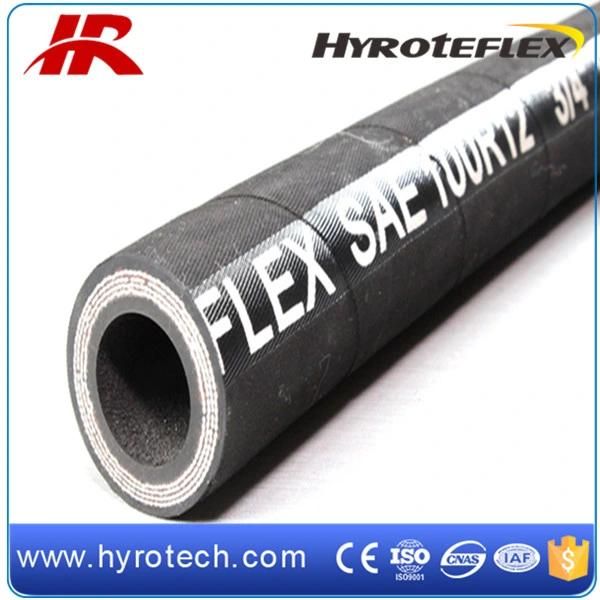

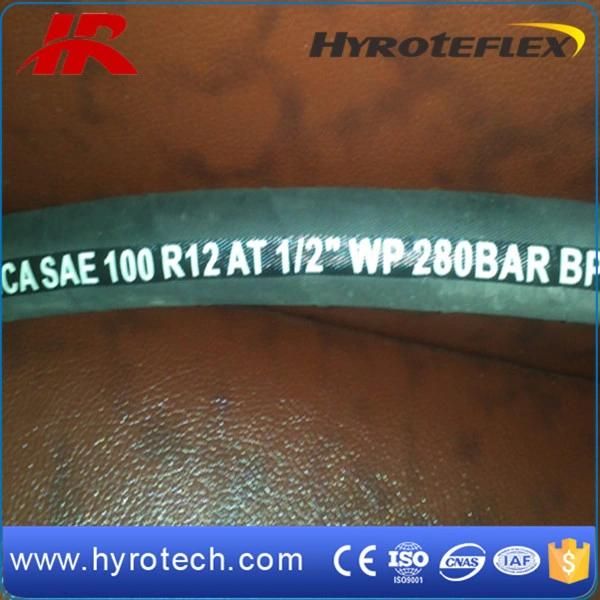

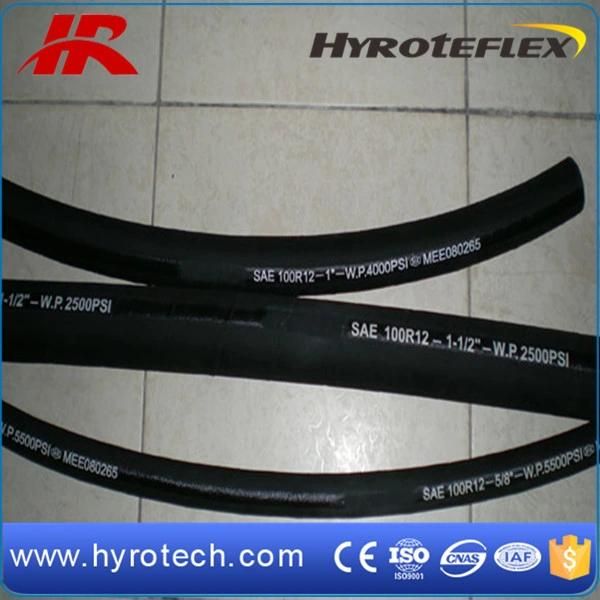

Steel Wire Spiral Rubber Hydraulic Hose SAE 100r12
Qingdao Hyrotech Rubber & Plastic Products Co., Ltd.- Material：Nitrile Rubber
- Capability：Hydraulic Hose
- Color：Black and Colourful
- Size：3,8"-2"
- Model：Hydraulic Hose SAE 100r12
- Working Temperature：-40c to +100c
Base Info
- Model NO.：SAE 100R12
- Length：40m,Roll 50m,Roll
- Cover：Smooth and Wrapped
- Transport Package：as Your Request
- Specification：CE
- Trademark：Hyroteflex
- Origin：Qingdao of Shangdong
- HS Code：40093100
- Production Capacity：5000000meters, Per Year
Description
DNHose I.D Wire O.D Hose O.D Working Pressure Burst Pressure Minimum Bend Radius Weight Length inch mm mm mm MPa psi MPa psi mm kg/m metres 10 3/8 9.5 17.5 21.4 44.5 6450 180.0 26000 180 0.78 20/40 13 1/2 12.7 20.2 24.0 41.5 6000 166.0 24000 230 0.89 20/40 16 5/8 15.9 23.8 28.2 35.0 5000 140.0 20000 250 1.11 20/40 19 3/4 19.0 28.2 32.2 35.0 5000 140.0 20000 300 1.59 20/40 25 1 25.4 35.5 39.7 28.0 4000 112.0 16000 340 2.02 20/40 32 11/4 31.8 46.0 50.8 21.0 3000 84.0 12000 460 3.32 20/40 38 11/2 38.1 52.4 57.7 18.5 3650 74.0 10800 560 3.70 20/40 51 2 50.8 65.3 69.6 16.5 2360 66.0 9600 660 5.47 20/40
