• Model NO.：KL-GH-637
• Standards：FDA,GB
• Transport Package：Standard
• Specification：FDA, SGS
• Trademark：Kanglong
• Origin：Hebei China
• HS Code：3917390000
• Production Capacity：100000 Meters Per Week

Basic Info.

Model NO. KL-GH-637 Standards FDA/GB Transport Package Standard Specification FDA, SGS Trademark Kanglong Origin Hebei China HS Code 3917390000 Production Capacity 100000 Meters Per Week

Product Description

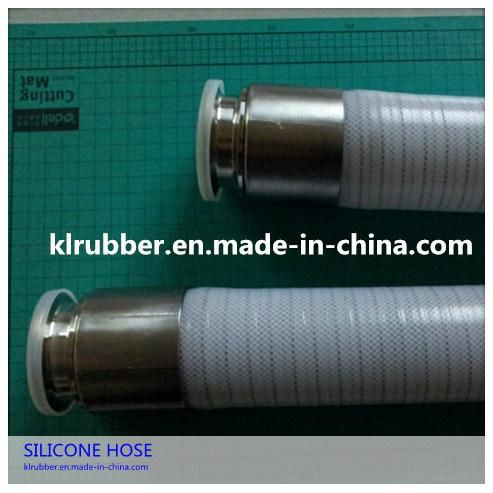

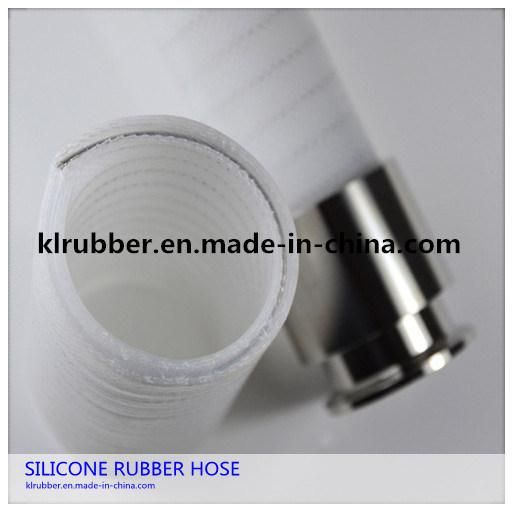

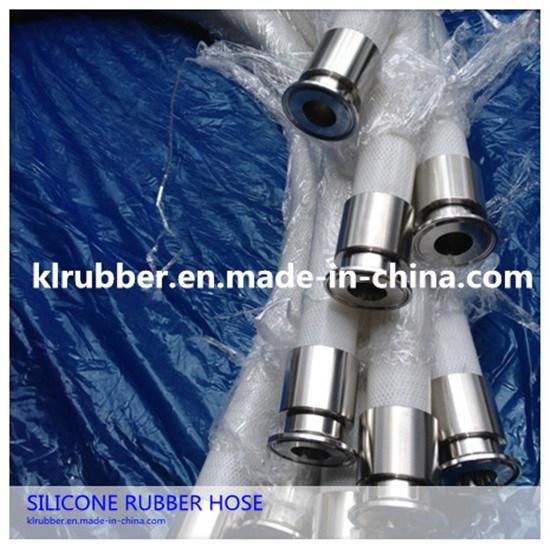

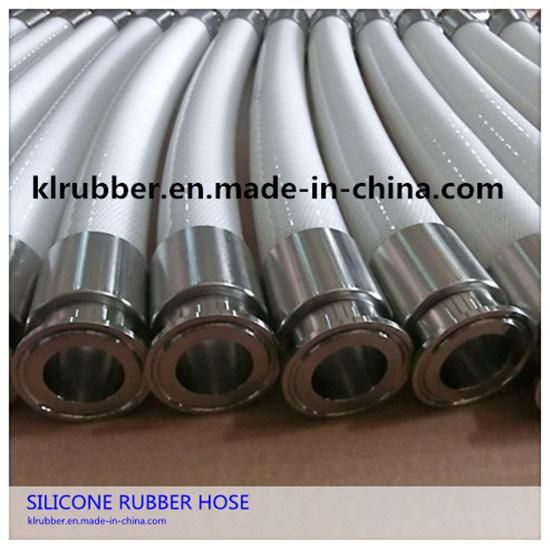

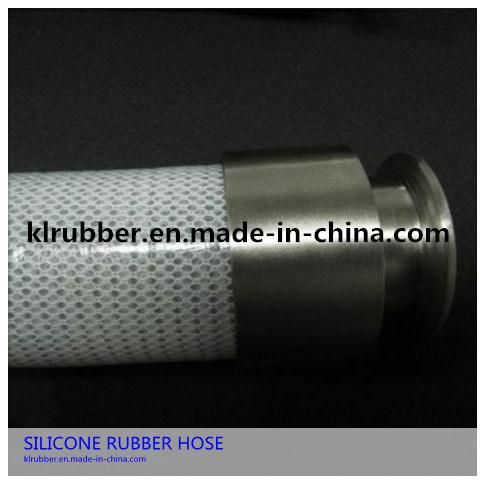

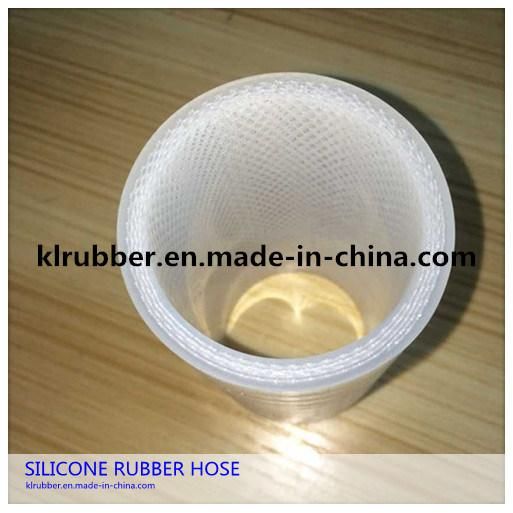

FDA Food Grade Stainless Steel Reinforced Silicone Hose with Quick Connector

Picture of product

1. Introduction

Platinum cured reinforced stainless steel silicone tube with good stability is produced in our clean room, which is braided by stainless steel & wire , suitable for bulk transfer, high pressure,Vacuum process , food processing application. This mandrel slip from the core is made of polyester textured woven wire, stainless steel and additional silicone wrap ( meet 3A, USDA, FDA, USP Class VI standard).



2. Description

Material: 100% Silicone, Platinum curing agent, stainless steel wire

Reinforcement: 4ply/multi-ply , stainless steel reinforced

Hardness, Shore 70A +/-5A

Size: I.D 1/2" to 4" (13-102mm)

Length: standard 4m, or 6m (size under 2")

Working temperature: -40°C - + 180°C

Certificate: FDA, 3A, USP class VI, USDA, ROHS, REACH

Connector type: DN series, 316L



3. Main Feature

• Made from FDA-sanctioned ingredients
• Able to resist extreme temperature variations: -80º F to 320º F (-40°C - + 180°C )
• Translucent natural color for visual contact with the flow
• Resilient, stretchable, and resistant to compression set
• Odorless, tasteless, and inert
• Good electrical and weatherability properties
• Resists UV, ozone, gases, and moisture
• Certified to Standard 51 for food equipment materials



4. Application:

Suitable for bulk transfer, high pressure, Vacuum process, pharmaceutical, biomedical, Load cell , Pump, Vessel or tank transfer , Laboratory, cosmetics, food processing and liquid transportation (such as: white wine, medical liquid, milk, water etc).


NO	ID	Bend radius	Thickness	W.P	B.P
	mm	mm	mm	bar	bar
KL-SILICONE-06	6	35	6.5	15	40
KL-SILICONE-08	8	35	6.5	15	40
KL-SILICONE-10	10	35	6.5	15	40
KL-SILICONE-13	13	40	6.0	13	40
KL-SILICONE-15	15	45	6.0	13	38
KL-SILICONE-16	16	55	6.0	13	38
KL-SILICONE-18	18	60	6.0	12	36
KL-SILICONE-19	19	60	6.0	12	36
KL-SILICONE-20	20	60	6.0	11	36
KL-SILICONE-22	22	65	6.0	11	35
KL-SILICONE-25	25	65	6.0	11	33
KL-SILICONE-28	28	75	6.0	10	32
KL-SILICONE-29	29	85	6.0	10	32
KL-SILICONE-30	30	90	6.0	10	32
KL-SILICONE-32	32	90	6.0	10	30
KL-SILICONE-34	34	95	6.0	9.0	30
KL-SILICONE-35	35	100	6.0	9.0	30
KL-SILICONE-38	38	110	6.0	8.5	28
KL-SILICONE-40	40	110	6.0	8.5	28
KL-SILICONE-42	42	120	6.0	8.5	27
KL-SILICONE-44	44	130	6.0	8.5	26
KL-SILICONE-45	45	140	6.0	8.0	25
KL-SILICONE-48	48	150	6.0	8.0	25
KL-SILICONE-50	50	150	6.0	8.0	25
KL-SILICONE-51	51	150	6.0	8.0	25
KL-SILICONE-53	53	155	6.0	7.5	24
KL-SILICONE-55	55	160	6.0	7.5	23
KL-SILICONE-57	57	160	6.0	7.0	22
KL-SILICONE-60	60	170	6.0	7.0	21
KL-SILICONE-62	62	180	6.0	7.0	21
KL-SILICONE-63	63	180	6.0	7.0	21
KL-SILICONE-65	65	180	6.0	6.5	20
KL-SILICONE-68	68	220	6.0	6.0	19
KL-SILICONE-70	70	230	6.0	5.8	19
KL-SILICONE-75	75	240	6.0	5.6	18
KL-SILICONE-76	76	240	6.0	5.5	18
KL-SILICONE-80	80	280	6.0	5.0	16
KL-SILICONE-90	90	300	6.0	4.5	15
KL-SILICONE-95	95	320	6.0	4.0	14
KL-SILICONE-100	100	360	6.0	3.5	13
KL-SILICONE-102	102	360	6.0	3.5	13
