Double Wire Braid Hydraulic Hose SAE 100 R2 Hose

Tianjin Hengyong Hydraulic Technology Co., Ltd.
  • Material：Synthetic Rubber
  • Capability：Rubber Oil Hose
  • Color：Black
  • Inner Tube：Oil Resistant Synthetic Rubber
  • Reinforcement：Two High Tensile Steel Wire Braid
  • Cover：Abrasion and Weather Resistant Synthetic Rubber

Base Info

  • Model NO.：SAE 100 R2
  • Max.Working Pressure：41.4 MPa
  • Temperature Range：-40 Degree to +100 Degree
  • Size：3,16"-2"
  • Length：100m,Roll, 50m,Roll, 20m,Roll
  • MOQ：500m
  • Sample：Available
  • Delivery Time：25 Days for Normal Order
  • Transport Package：PE Film or Weaving Belt by Rolls
  • Specification：3,16"-2"
  • Trademark：JJR
  • Origin：China
  • HS Code：4009210000
  • Production Capacity：50000meter,Month

Description

 Hose IDWire ODHose ODW.PB.PMin B.RWeightinchmmmmmmMpaPsiMpaPsimmkg/m3/16"4.811.113.441.4600016523720900.311/4"6.412.715405800160228401000.335/16"7.914.316.6365250140200001150.393/8"9.516.71933.14800132188401300.51/2"12.719.822.227.64000110157201800.595/8"15.92325.4253630100142802000.713/4"192729.321.5312085122802400.861"25.434.93816.524006594203001.281-1/4"31.844.548.312.518205071404202.021-1/2"38.150.854.6913103651405002.232"50.863.567.3811603245606302.85

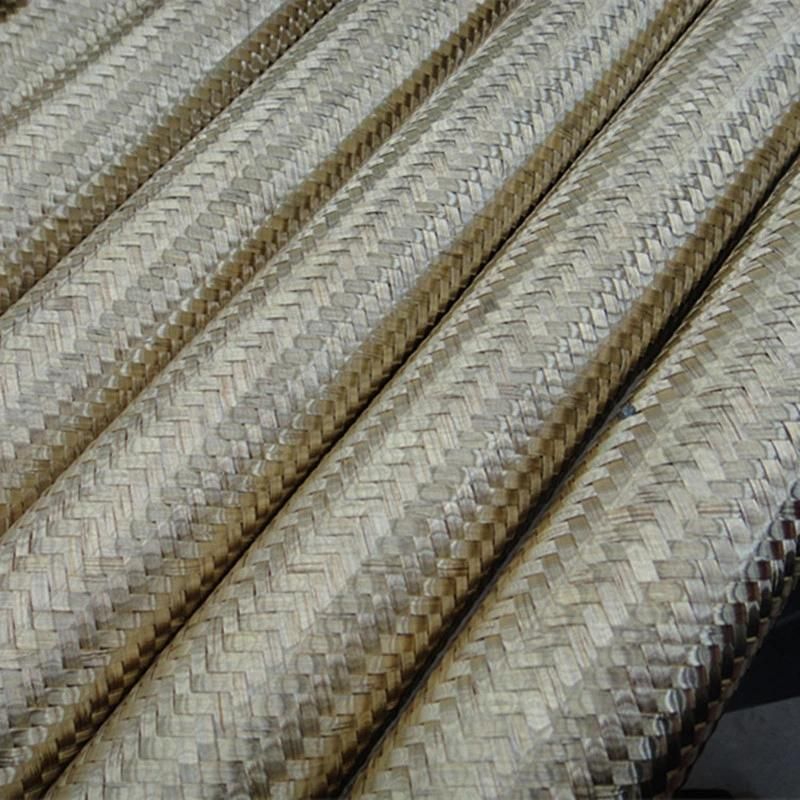

Wire braid:
Double Wire Braid Hydraulic Hose SAE 100 R2 Hose

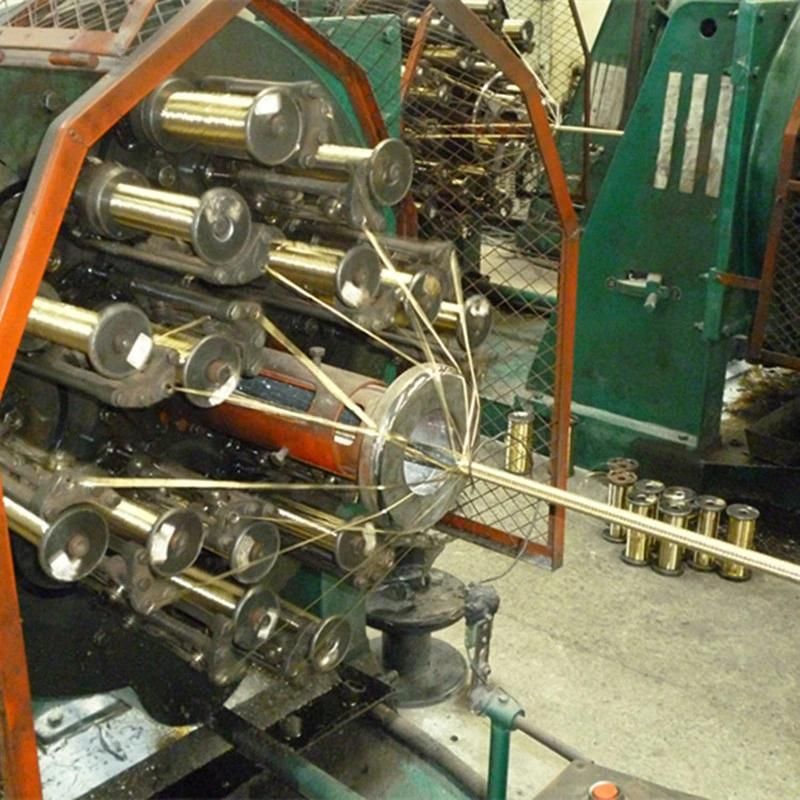

Braiding machine:
Double Wire Braid Hydraulic Hose SAE 100 R2 Hose

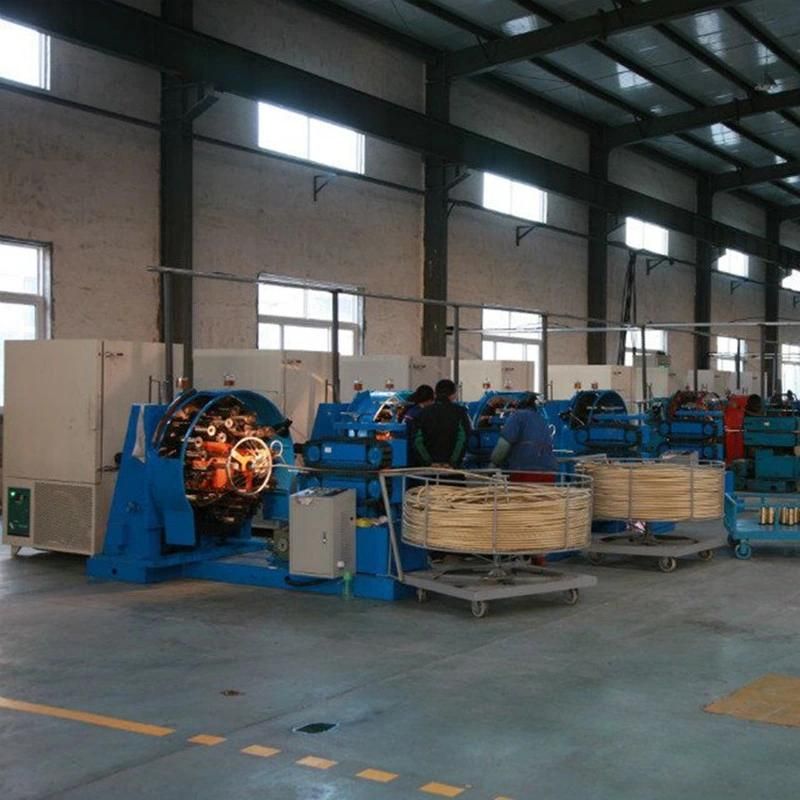

Our plant:
Double Wire Braid Hydraulic Hose SAE 100 R2 Hose

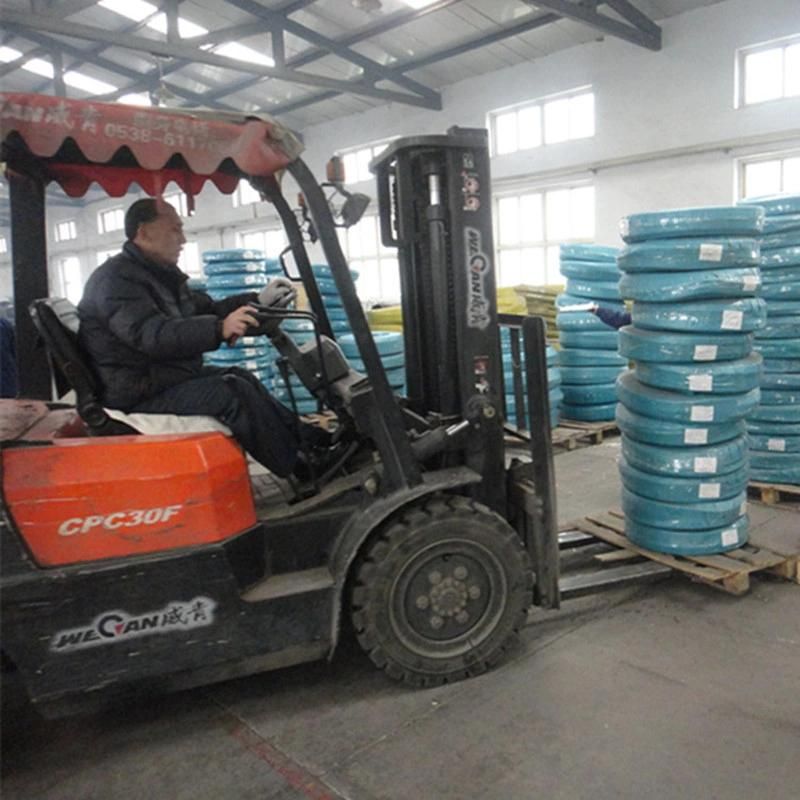

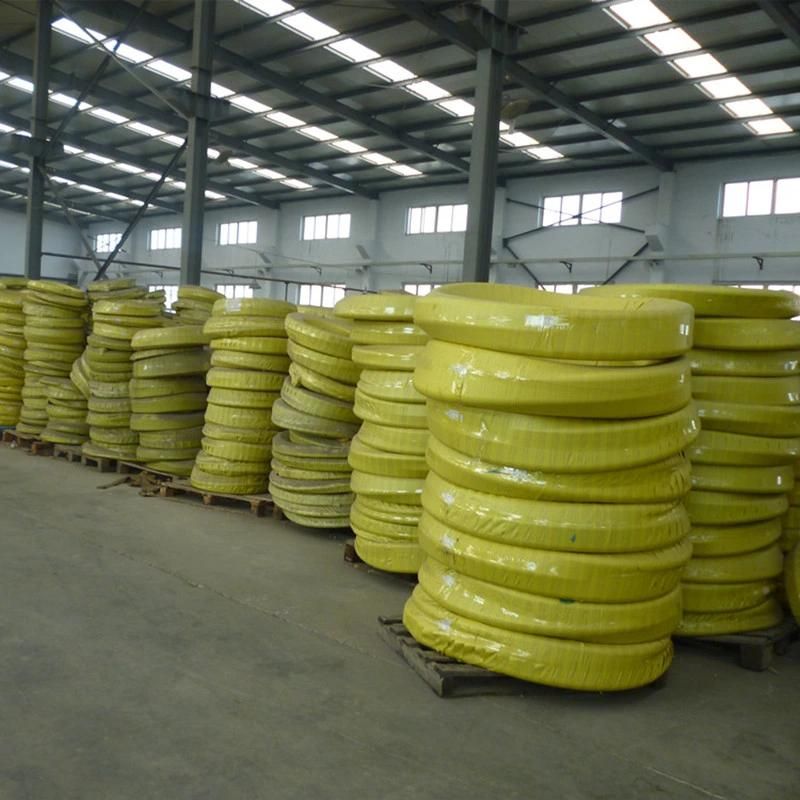

Our stock:
Double Wire Braid Hydraulic Hose SAE 100 R2 Hose

Double Wire Braid Hydraulic Hose SAE 100 R2 Hose

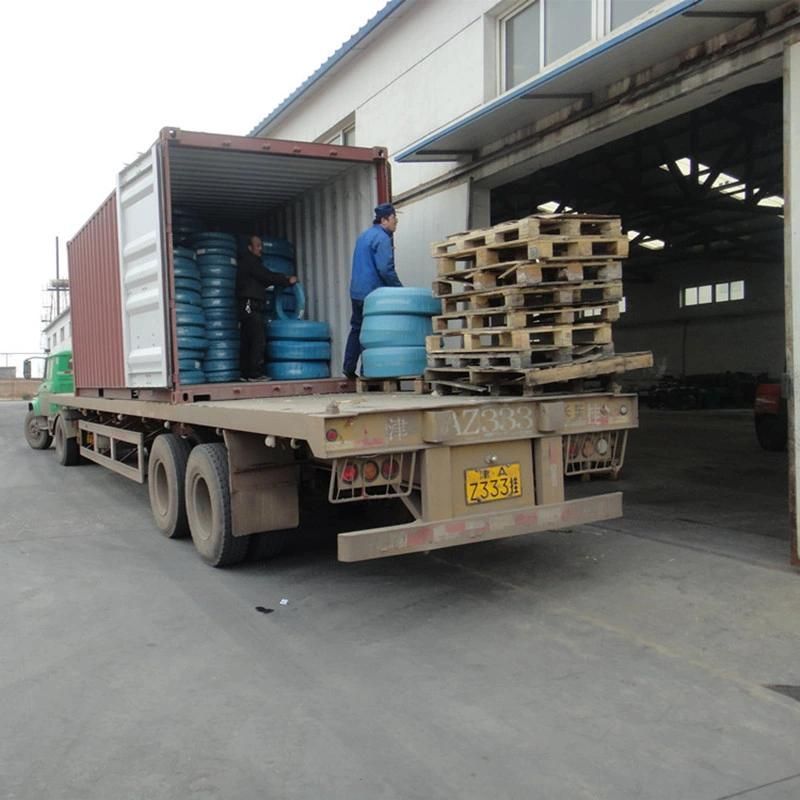

Container loading:
Double Wire Braid Hydraulic Hose SAE 100 R2 Hose


We are professional manufacturer of hydraulic hose and fittings.Main item include SAE 100 R1,R2,R3,R4,R5,R6,R7,R8,R12,R13,R14,4SP,4SH,flexible ss hose and a large variety of hydraulic fittings,if you are interested in our products,please feel free to contact with us.
